Summary
This strain contains 20 protein-level mutations:
- 9 mutations in Spike protein: HV 69-70 deletion, Y144 deletion, N501Y, A570D, D614G, P681H, T716I, S982A, D1118H
- 3 mutations in N protein: D3L, 203-204 RG->KR, S235F
- 1 mutation in NS8 protein: Q27stop
- 1 mutation in NS9c protein: G50N
- 3 mutations in NSP3 protein: T183I, A890D, I1412T
- 1 mutation in NSP6 protein: SGF 106-108 deletion
- 1 mutation in NSP9 protein: D78N
- 1 mutation in NSP12 protein: P323L
We identified all possible linear viral peptides affected by these mutations. Whenever it was possible, we matched the reference peptide with the mutated one. For example, D -> L mutation transformed SDNGPQNQR to SLNGPQNQR. Cases when it was not meaningful included deletions and insertions at the flanks of the peptide, e.g., HV deletion in NVTWFHAIHV peptide.
Then, we predicted binding affinities between the selected peptides and frequent HLA alleles. Predictions were made with NetMHCpan-4.1 and NetMHCIIpan-4.0. The binding affinities were classifies into three groups:
- Tight binding (IC50 affinity ≤ 50 nM)
- Moderate binding (50 nM < IC50 affinity ≤ 500 nM)
- Weak/no binding (IC50 affinity > 500 nM)
Here we report HLA-peptide interactions whose affinity was altered by at least two folds. Note that mutations with empty set of altered interactions are not showed.

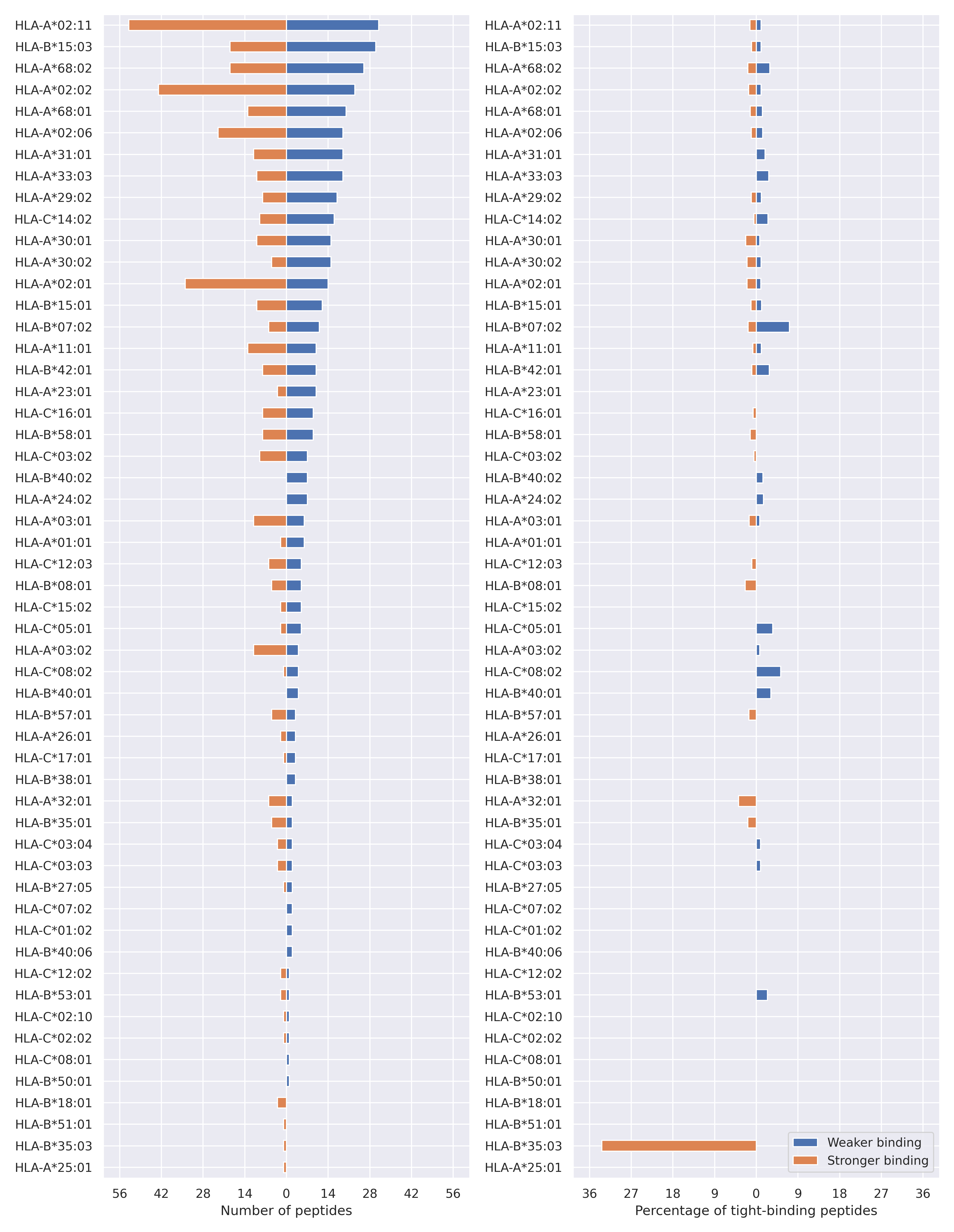

The total number of HLA-peptide interactions affected by the mutations
For each allele we calculated the number of peptides with increased and decreased affinitiy (two or more times). The absolute number of such peptides is showed on the left side of the figure (blue bars — weaker binding, orange bars — stronger).
While absolute numbers are of interest, they do not reflect the initial number of tighly binding peptides for the specific allele. Roughly speaking, if an allele had high number of tight binders, then vanished affinity of several peptides will not affect much the integral ability of peptide presentation. To the contrary, low number of vanished peptides could be important if the particular allele initially had narrow epitope repertoire. To account for this effect, we normalized the absolute numbers of new/vanished tight binders (IC50 affinity ≤ 50 nM) by the total number of tight binders for each allele. To avoid possible divisions by zero, we used + 1 regularization term in all denominators. For example, if some allele had no tight binders in the reference genome, and three new tight binders appeared as a result of the mutation, the relative increase will be 300%. The results are showed in the right part of the figure. Protein-specific plots are listed below.

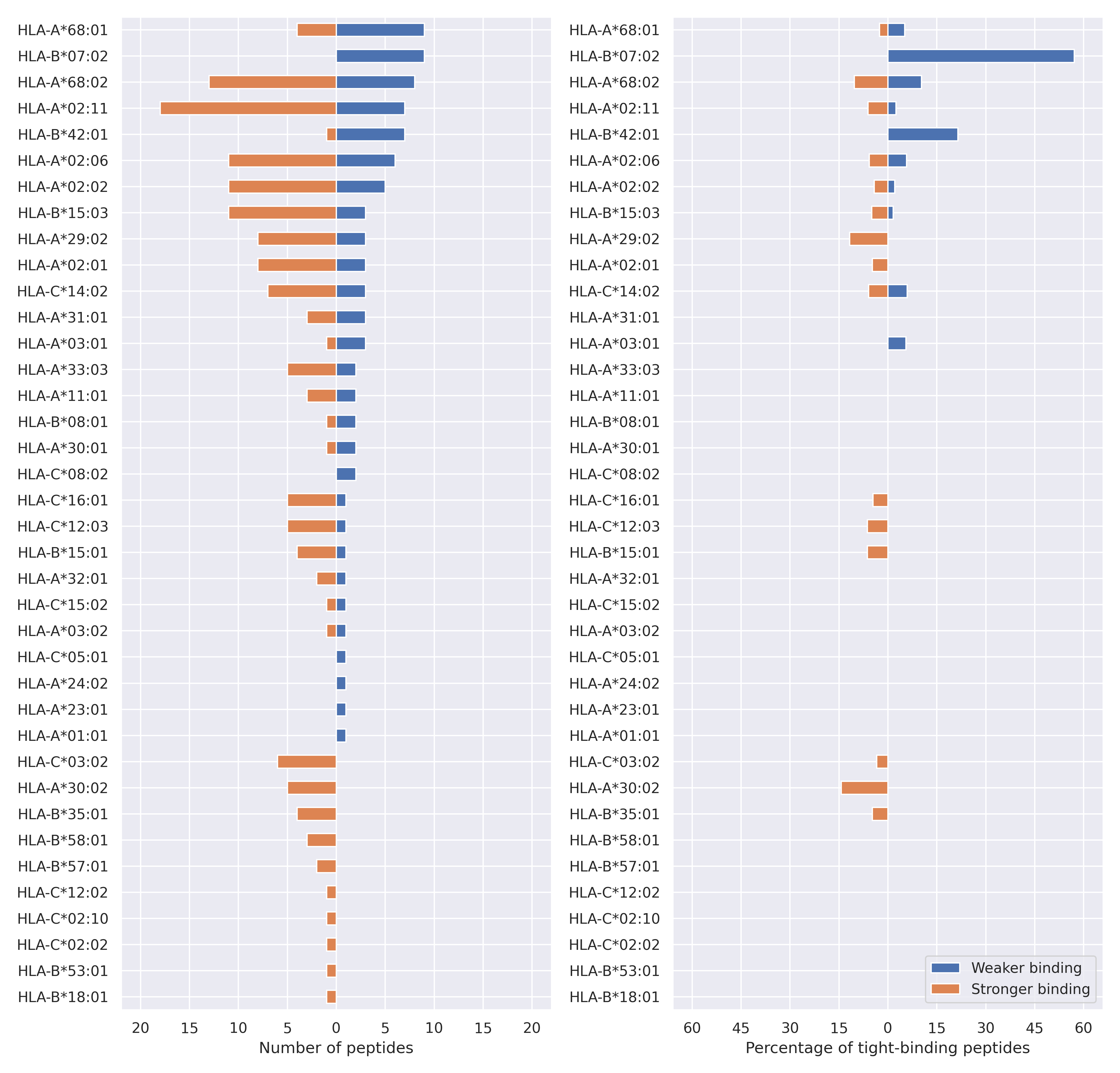

Spike protein
HV 69-70 deletion
Reference RSSVLHSTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFAST
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated RSSVLHSTQDLFLPFFSNVTWFHAI‑‑SGTNGTKRFDNPVLPFNDGVYFAST
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*68:02 | NVTWFHAIHV | - | 16 | - |
| HLA-A*02:11 | VTWFHAIHV | VTWFHAI | 18 | - |
| HLA-A*02:06 | VTWFHAIHV | VTWFHAI | 40 | - |
| HLA-A*68:01 | HVSGTNGTKR | - | 42 | - |
| HLA-A*68:02 | VTWFHAIHV | VTWFHAI | 45 | - |
| HLA-A*68:01 | HVSGTNGTK | SGTNGTK | 54 | - |
| HLA-C*15:02 | VTWFHAIHV | VTWFHAI | 107 | - |
| HLA-A*02:11 | NVTWFHAIHV | - | 125 | - |
| HLA-A*02:01 | VTWFHAIHV | VTWFHAI | 134 | - |
| HLA-A*02:11 | FFSNVTWFHAIHV | - | 219 | - |
| HLA-A*02:11 | FSNVTWFHAIHV | - | 250 | - |
| HLA-A*02:06 | NVTWFHAIHV | - | 263 | - |
| HLA-A*68:02 | FSNVTWFHAIHV | - | 311 | - |
| HLA-A*33:03 | WFHAIHVSGTNGTKR | WFHAISGTNGTKR | - | 321 |
| HLA-C*12:03 | VTWFHAIHV | VTWFHAI | 341 | - |
| HLA-A*02:02 | VTWFHAIHV | VTWFHAI | 369 | - |
| HLA-C*16:01 | VTWFHAIHV | VTWFHAI | 421 | - |
| HLA-A*32:01 | VTWFHAIHV | VTWFHAI | 442 | - |
| HLA-A*02:06 | FSNVTWFHAIHV | - | 449 | - |
| HLA-A*02:02 | NVTWFHAIHV | - | 468 | - |
| HLA-A*68:02 | FFSNVTWFHAIHV | - | 492 | - |
| HLA-A*11:01 | HAIHVSGTNGTK | HAISGTNGTK | 2998 | 438 |
| HLA-A*03:02 | AIHVSGTNGTK | AISGTNGTK | 1179 | 271 |
| HLA-A*68:01 | HAIHVSGTNGTK | HAISGTNGTK | 174 | 43 |
| HLA-A*11:01 | AIHVSGTNGTK | AISGTNGTK | 742 | 223 |
| HLA-A*03:01 | AIHVSGTNGTK | AISGTNGTK | 534 | 196 |
| HLA-A*33:03 | HAIHVSGTNGTKR | HAISGTNGTKR | 374 | 755 |
Y144 deletion
Reference IVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCTFE
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated IVNNATNVVIKVCEFQFCNDPFLGV‑YHKNNKSWMESEFRVYSSANNCTFE
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-C*14:02 | YYHKNNKSWM | - | 19 | - |
| HLA-B*15:03 | FQFCNDPFLGVYY | - | 47 | - |
| HLA-C*14:02 | YYHKNNKSW | - | 52 | - |
| HLA-A*29:02 | QFCNDPFLGVYY | - | 113 | - |
| HLA-A*24:02 | YYHKNNKSW | - | 116 | - |
| HLA-B*15:01 | FQFCNDPFLGVYY | - | 129 | - |
| HLA-A*23:01 | YYHKNNKSW | - | 150 | - |
| HLA-A*29:02 | FQFCNDPFLGVYY | - | 184 | - |
| HLA-A*01:01 | CNDPFLGVYY | - | 202 | - |
| HLA-C*14:02 | YYHKNNKSWMESEF | - | 227 | - |
| HLA-A*29:02 | CNDPFLGVYY | - | 439 | - |
| HLA-A*11:01 | GVYYHKNNK | GVYHKNNK | 51 | 5741 |
| HLA-A*03:01 | GVYYHKNNK | GVYHKNNK | 27 | 2231 |
| HLA-A*30:01 | GVYYHKNNK | GVYHKNNK | 51 | 3606 |
| HLA-A*03:01 | LGVYYHKNNK | LGVYHKNNK | 131 | 8411 |
| HLA-A*03:02 | GVYYHKNNK | GVYHKNNK | 119 | 6497 |
| HLA-A*68:01 | GVYYHKNNK | GVYHKNNK | 363 | 17786 |
| HLA-A*31:01 | GVYYHKNNK | GVYHKNNK | 375 | 9671 |
| HLA-A*33:03 | DPFLGVYYHK | DPFLGVYHK | 280 | 4172 |
| HLA-A*68:01 | LGVYYHKNNK | LGVYHKNNK | 494 | 3973 |
| HLA-C*14:02 | VYYHKNNKSW | VYHKNNKSW | 1115 | 238 |
| HLA-B*15:03 | FQFCNDPFLGVYYH | FQFCNDPFLGVYH | 1280 | 298 |
| HLA-C*14:02 | VYYHKNNKSWM | VYHKNNKSWM | 327 | 108 |
| HLA-A*68:01 | DPFLGVYYHK | DPFLGVYHK | 398 | 969 |
| HLA-A*03:01 | FLGVYYHKNNK | FLGVYHKNNK | 455 | 1078 |
N501Y
Reference GSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCG
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GSTPCNGVEGFNCYFPLQSYGFQPTYGVGYQPYRVVVLSFELLHAPATVCG
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*29:02 | QSYGFQPTN | QSYGFQPTY | 26152 | 24 |
| HLA-A*29:02 | YFPLQSYGFQPTN | YFPLQSYGFQPTY | 19514 | 25 |
| HLA-B*15:01 | LQSYGFQPTN | LQSYGFQPTY | 6135 | 8 |
| HLA-B*35:01 | FPLQSYGFQPTN | FPLQSYGFQPTY | 8715 | 15 |
| HLA-C*03:02 | QSYGFQPTN | QSYGFQPTY | 12903 | 23 |
| HLA-B*15:03 | LQSYGFQPTN | LQSYGFQPTY | 2045 | 4 |
| HLA-B*15:03 | QSYGFQPTN | QSYGFQPTY | 6543 | 13 |
| HLA-C*16:01 | QSYGFQPTN | QSYGFQPTY | 10868 | 27 |
| HLA-B*35:01 | QSYGFQPTN | QSYGFQPTY | 24615 | 71 |
| HLA-C*12:03 | QSYGFQPTN | QSYGFQPTY | 12696 | 38 |
| HLA-B*15:03 | PLQSYGFQPTN | PLQSYGFQPTY | 22802 | 80 |
| HLA-C*14:02 | TNGVGYQPY | TYGVGYQPY | 5468 | 21 |
| HLA-A*29:02 | LQSYGFQPTN | LQSYGFQPTY | 28458 | 133 |
| HLA-C*03:02 | FPLQSYGFQPTN | FPLQSYGFQPTY | 23840 | 113 |
| HLA-C*03:02 | LQSYGFQPTN | LQSYGFQPTY | 23421 | 125 |
| HLA-A*30:02 | LQSYGFQPTN | LQSYGFQPTY | 7508 | 42 |
| HLA-A*30:02 | QSYGFQPTN | QSYGFQPTY | 5297 | 30 |
| HLA-B*15:03 | FPLQSYGFQPTN | FPLQSYGFQPTY | 20159 | 137 |
| HLA-C*03:02 | YFPLQSYGFQPTN | YFPLQSYGFQPTY | 27639 | 198 |
| HLA-A*29:02 | CYFPLQSYGFQPTN | CYFPLQSYGFQPTY | 27182 | 196 |
| HLA-C*14:02 | SYGFQPTN | SYGFQPTY | 20230 | 162 |
| HLA-A*29:02 | FPLQSYGFQPTN | FPLQSYGFQPTY | 32767 | 264 |
| HLA-B*15:01 | QSYGFQPTN | QSYGFQPTY | 21529 | 195 |
| HLA-C*14:02 | YFPLQSYGFQPTN | YFPLQSYGFQPTY | 18230 | 169 |
| HLA-B*15:03 | YFPLQSYGFQPTN | YFPLQSYGFQPTY | 22168 | 206 |
| HLA-A*11:01 | QSYGFQPTN | QSYGFQPTY | 22068 | 241 |
| HLA-C*16:01 | LQSYGFQPTN | LQSYGFQPTY | 27149 | 326 |
| HLA-C*12:02 | QSYGFQPTN | QSYGFQPTY | 21029 | 267 |
| HLA-B*15:01 | PLQSYGFQPTN | PLQSYGFQPTY | 32767 | 449 |
| HLA-B*35:01 | YFPLQSYGFQPTN | YFPLQSYGFQPTY | 28375 | 395 |
| HLA-C*12:03 | FPLQSYGFQPTN | FPLQSYGFQPTY | 27893 | 431 |
| HLA-C*16:01 | FPLQSYGFQPTN | FPLQSYGFQPTY | 27733 | 434 |
| HLA-C*02:02 | QSYGFQPTN | QSYGFQPTY | 26598 | 425 |
| HLA-C*02:10 | QSYGFQPTN | QSYGFQPTY | 26598 | 425 |
| HLA-A*30:02 | YFPLQSYGFQPTN | YFPLQSYGFQPTY | 18743 | 310 |
| HLA-B*15:03 | LQSYGFQPTNG | LQSYGFQPTYG | 6387 | 109 |
| HLA-B*53:01 | FPLQSYGFQPTN | FPLQSYGFQPTY | 8451 | 151 |
| HLA-C*12:03 | LQSYGFQPTN | LQSYGFQPTY | 26641 | 480 |
| HLA-A*32:01 | QSYGFQPTN | QSYGFQPTY | 16619 | 311 |
| HLA-A*30:02 | FPLQSYGFQPTN | FPLQSYGFQPTY | 21475 | 466 |
| HLA-C*03:02 | NGVGYQPY | YGVGYQPY | 10463 | 451 |
| HLA-B*57:01 | QSYGFQPTN | QSYGFQPTY | 4070 | 215 |
| HLA-B*58:01 | QSYGFQPTN | QSYGFQPTY | 1532 | 83 |
| HLA-A*02:11 | NGVGYQPYRV | YGVGYQPYRV | 5989 | 327 |
| HLA-B*57:01 | LQSYGFQPTN | LQSYGFQPTY | 3839 | 244 |
| HLA-B*58:01 | LQSYGFQPTN | LQSYGFQPTY | 1885 | 155 |
| HLA-B*15:03 | NGVGYQPY | YGVGYQPY | 4677 | 467 |
| HLA-A*31:01 | TNGVGYQPYR | TYGVGYQPYR | 811 | 84 |
| HLA-A*33:03 | TNGVGYQPYR | TYGVGYQPYR | 573 | 62 |
| HLA-A*29:02 | TNGVGYQPY | TYGVGYQPY | 2031 | 237 |
| HLA-A*29:02 | PTNGVGYQPY | PTYGVGYQPY | 1211 | 177 |
| HLA-A*02:11 | YGFQPTNGV | YGFQPTYGV | 307 | 49 |
| HLA-A*02:01 | YGFQPTNGV | YGFQPTYGV | 2160 | 459 |
| HLA-A*68:01 | PTNGVGYQPYR | PTYGVGYQPYR | 1073 | 242 |
| HLA-A*02:11 | LQSYGFQPTNGV | LQSYGFQPTYGV | 1446 | 396 |
| HLA-A*31:01 | PTNGVGYQPYR | PTYGVGYQPYR | 1377 | 406 |
| HLA-A*02:06 | YGFQPTNGV | YGFQPTYGV | 174 | 52 |
| HLA-A*33:03 | PTNGVGYQPYR | PTYGVGYQPYR | 1345 | 407 |
| HLA-A*02:02 | YGFQPTNGV | YGFQPTYGV | 868 | 287 |
| HLA-A*02:06 | QSYGFQPTNGV | QSYGFQPTYGV | 1121 | 407 |
| HLA-A*68:02 | YGFQPTNGV | YGFQPTYGV | 73 | 28 |
| HLA-A*68:02 | QSYGFQPTNGV | QSYGFQPTYGV | 122 | 48 |
| HLA-B*15:01 | GFQPTNGVGY | GFQPTYGVGY | 774 | 311 |
| HLA-A*29:02 | YGFQPTNGVGY | YGFQPTYGVGY | 1158 | 486 |
| HLA-A*31:01 | NGVGYQPYR | YGVGYQPYR | 438 | 185 |
| HLA-A*02:06 | LQSYGFQPTNGV | LQSYGFQPTYGV | 249 | 111 |
| HLA-A*30:02 | PTNGVGYQPY | PTYGVGYQPY | 465 | 210 |
| HLA-B*15:03 | FQPTNGVGY | FQPTYGVGY | 63 | 29 |
| HLA-A*02:02 | LQSYGFQPTNGV | LQSYGFQPTYGV | 594 | 280 |
| HLA-B*15:03 | GFQPTNGVGY | GFQPTYGVGY | 769 | 363 |
A570D
Reference GLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGV
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GLTGTGVLTESNKKFLPFQQFGRDIDDTTDAVRDPQTLEILDITPCSFGGV
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*68:02 | DIADTTDAV | DIDDTTDAV | 24 | 2016 |
| HLA-C*08:02 | IADTTDAV | IDDTTDAV | 260 | 12788 |
| HLA-A*68:01 | DIADTTDAVR | DIDDTTDAVR | 28 | 961 |
| HLA-A*02:02 | FGRDIADTTDAV | FGRDIDDTTDAV | 26 | 819 |
| HLA-A*68:02 | FGRDIADTTDAV | FGRDIDDTTDAV | 216 | 5617 |
| HLA-A*02:02 | RDIADTTDAV | RDIDDTTDAV | 109 | 2346 |
| HLA-B*15:03 | FQQFGRDIA | FQQFGRDID | 491 | 8882 |
| HLA-A*02:02 | FLPFQQFGRDIA | FLPFQQFGRDID | 379 | 4318 |
| HLA-A*02:06 | FGRDIADTTDAV | FGRDIDDTTDAV | 85 | 852 |
| HLA-A*02:06 | RDIADTTDAV | RDIDDTTDAV | 301 | 2023 |
| HLA-A*02:01 | FGRDIADTTDAV | FGRDIDDTTDAV | 318 | 1833 |
| HLA-A*02:11 | FGRDIADTTDAV | FGRDIDDTTDAV | 81 | 356 |
| HLA-A*02:11 | RDIADTTDAV | RDIDDTTDAV | 303 | 798 |
D614G
Reference PCSFGGVSVITPGTNTSNQVAVLYQDVNCTEVPVAIHADQLTPTWRVYSTG
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated PCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVPVAIHADQLTPTWRVYSTG
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-C*05:01 | YQDVNCTEV | YQGVNCTEV | 82 | 8597 |
| HLA-C*08:02 | YQDVNCTEV | YQGVNCTEV | 89 | 8066 |
| HLA-A*02:11 | DVNCTEVPV | GVNCTEVPV | 2140 | 72 |
| HLA-A*02:02 | DVNCTEVPV | GVNCTEVPV | 4099 | 213 |
| HLA-A*68:02 | DVNCTEVPV | GVNCTEVPV | 36 | 659 |
| HLA-A*02:06 | DVNCTEVPV | GVNCTEVPV | 3807 | 208 |
| HLA-A*68:02 | QVAVLYQDV | QVAVLYQGV | 183 | 13 |
| HLA-A*68:02 | NQVAVLYQDV | NQVAVLYQGV | 650 | 52 |
| HLA-A*02:06 | QVAVLYQDV | QVAVLYQGV | 1312 | 148 |
| HLA-A*02:11 | QVAVLYQDV | QVAVLYQGV | 2169 | 268 |
| HLA-A*68:02 | NTSNQVAVLYQDV | NTSNQVAVLYQGV | 1858 | 231 |
| HLA-A*68:02 | TSNQVAVLYQDV | TSNQVAVLYQGV | 3281 | 457 |
| HLA-A*02:02 | QVAVLYQDV | QVAVLYQGV | 1107 | 188 |
| HLA-A*02:01 | YQDVNCTEV | YQGVNCTEV | 75 | 315 |
| HLA-A*02:06 | YQDVNCTEV | YQGVNCTEV | 17 | 57 |
| HLA-A*02:11 | VLYQDVNCT | VLYQGVNCT | 224 | 74 |
| HLA-A*02:11 | YQDVNCTEV | YQGVNCTEV | 31 | 93 |
| HLA-A*02:11 | VLYQDVNCTEVP | VLYQGVNCTEVP | 1000 | 402 |
| HLA-A*02:02 | NQVAVLYQDV | NQVAVLYQGV | 269 | 116 |
| HLA-A*02:11 | AVLYQDVNCTEV | AVLYQGVNCTEV | 500 | 238 |
| HLA-A*02:01 | NQVAVLYQDV | NQVAVLYQGV | 558 | 267 |
| HLA-A*02:06 | NQVAVLYQDV | NQVAVLYQGV | 36 | 18 |
P681H
Reference VNNSYECDIPIGAGICASYQTQTNSPRRARSVASQSIIAYTMSLGAENSVA
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated VNNSYECDIPIGAGICASYQTQTNSHRRARSVASQSIIAYTMSLGAENSVA
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-B*07:02 | SPRRARSVA | SHRRARSVA | 4 | 4721 |
| HLA-B*42:01 | SPRRARSVA | SHRRARSVA | 8 | 6169 |
| HLA-B*07:02 | SPRRARSVASQSI | SHRRARSVASQSI | 17 | 11433 |
| HLA-B*07:02 | SPRRARSV | SHRRARSV | 24 | 12728 |
| HLA-B*07:02 | SPRRARSVAS | SHRRARSVAS | 37 | 14758 |
| HLA-B*07:02 | SPRRARSVASQSII | SHRRARSVASQSII | 55 | 17736 |
| HLA-B*42:01 | SPRRARSV | SHRRARSV | 38 | 11622 |
| HLA-B*42:01 | SPRRARSVASQSI | SHRRARSVASQSI | 48 | 14418 |
| HLA-B*07:02 | TNSPRRARSVA | TNSHRRARSVA | 125 | 20078 |
| HLA-B*42:01 | SPRRARSVAS | SHRRARSVAS | 158 | 17461 |
| HLA-B*07:02 | NSPRRARSVA | NSHRRARSVA | 69 | 7270 |
| HLA-B*42:01 | SPRRARSVASQSII | SHRRARSVASQSII | 321 | 21521 |
| HLA-B*07:02 | TQTNSPRRARSVA | TQTNSHRRARSVA | 270 | 17880 |
| HLA-B*07:02 | QTNSPRRARSVA | QTNSHRRARSVA | 249 | 13539 |
| HLA-B*42:01 | TNSPRRARSVA | TNSHRRARSVA | 437 | 21599 |
| HLA-B*42:01 | NSPRRARSVA | NSHRRARSVA | 217 | 8330 |
| HLA-C*14:02 | SYQTQTNSP | SYQTQTNSH | 3691 | 139 |
| HLA-B*08:01 | NSPRRARSV | NSHRRARSV | 881 | 69 |
| HLA-B*08:01 | SPRRARSVA | SHRRARSVA | 372 | 3831 |
| HLA-B*08:01 | SPRRARSV | SHRRARSV | 428 | 2448 |
| HLA-C*16:01 | NSPRRARSV | NSHRRARSV | 1247 | 314 |
| HLA-C*12:03 | NSPRRARSV | NSHRRARSV | 1110 | 365 |
| HLA-A*11:01 | ASYQTQTNSPR | ASYQTQTNSHR | 346 | 1041 |
| HLA-A*68:01 | CASYQTQTNSPR | CASYQTQTNSHR | 142 | 401 |
| HLA-A*68:01 | TQTNSPRRAR | TQTNSHRRAR | 254 | 710 |
| HLA-A*31:01 | YQTQTNSPR | YQTQTNSHR | 441 | 1214 |
| HLA-A*68:01 | YQTQTNSPRR | YQTQTNSHRR | 206 | 78 |
| HLA-A*33:03 | QTQTNSPRR | QTQTNSHRR | 445 | 176 |
| HLA-A*33:03 | YQTQTNSPRR | YQTQTNSHRR | 967 | 411 |
| HLA-A*68:01 | QTQTNSPRR | QTQTNSHRR | 119 | 51 |
| HLA-A*68:01 | QTNSPRRAR | QTNSHRRAR | 95 | 216 |
| HLA-A*31:01 | ASYQTQTNSPR | ASYQTQTNSHR | 139 | 311 |
T716I
Reference SIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated SIIAYTMSLGAENSVAYSNNSIAIPINFTISVTTEILPVSMTKTSVDCTMY
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-C*15:02 | YSNNSIAIPT | YSNNSIAIPI | 8151 | 360 |
| HLA-A*68:02 | SVAYSNNSIAIPT | SVAYSNNSIAIPI | 3003 | 172 |
| HLA-C*16:01 | YSNNSIAIPT | YSNNSIAIPI | 5899 | 374 |
| HLA-A*68:02 | YSNNSIAIPT | YSNNSIAIPI | 990 | 78 |
| HLA-B*58:01 | YSNNSIAIPT | YSNNSIAIPI | 4346 | 439 |
| HLA-A*02:06 | YSNNSIAIPT | YSNNSIAIPI | 2074 | 359 |
| HLA-A*02:01 | AIPTNFTISV | AIPINFTISV | 173 | 30 |
| HLA-A*68:02 | IAIPTNFTI | IAIPINFTI | 505 | 97 |
| HLA-A*02:06 | AIPTNFTISV | AIPINFTISV | 79 | 16 |
| HLA-A*68:02 | TNFTISVTTEI | INFTISVTTEI | 199 | 905 |
| HLA-A*02:02 | IAIPTNFTI | IAIPINFTI | 1142 | 295 |
| HLA-A*02:11 | AIPTNFTISV | AIPINFTISV | 42 | 11 |
| HLA-A*02:02 | SIAIPTNFTI | SIAIPINFTI | 167 | 46 |
| HLA-A*02:11 | IAIPTNFTI | IAIPINFTI | 182 | 58 |
| HLA-A*02:01 | IAIPTNFTI | IAIPINFTI | 923 | 325 |
| HLA-A*02:11 | SIAIPTNFTI | SIAIPINFTI | 129 | 46 |
| HLA-A*02:06 | IAIPTNFTI | IAIPINFTI | 99 | 37 |
| HLA-A*32:01 | IAIPTNFTI | IAIPINFTI | 370 | 143 |
| HLA-A*68:02 | SIAIPTNFTI | SIAIPINFTI | 128 | 50 |
| HLA-A*02:06 | SIAIPTNFTISV | SIAIPINFTISV | 148 | 58 |
| HLA-C*12:03 | IPTNFTISV | IPINFTISV | 1235 | 488 |
| HLA-A*02:02 | AIPTNFTISV | AIPINFTISV | 75 | 30 |
| HLA-A*02:06 | SIAIPTNFTI | SIAIPINFTI | 257 | 105 |
| HLA-A*02:01 | SIAIPTNFTI | SIAIPINFTI | 541 | 237 |
| HLA-B*35:01 | IPTNFTISV | IPINFTISV | 182 | 80 |
| HLA-A*68:02 | AIPTNFTISV | AIPINFTISV | 420 | 190 |
| HLA-B*42:01 | SIAIPTNFTISV | SIAIPINFTISV | 925 | 436 |
| HLA-B*15:03 | IAIPTNFTI | IAIPINFTI | 279 | 559 |
S982A
Reference QALNTLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated QALNTLVKQLSSNFGAISSVLNDILARLDKVEAEVQIDRLITGRLQSLQTY
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*30:01 | LSRLDKVEA | LARLDKVEA | 324 | 1357 |
| HLA-A*02:11 | GAISSVLNDILSRL | GAISSVLNDILARL | 1085 | 403 |
| HLA-A*02:01 | ISSVLNDILSRL | ISSVLNDILARL | 1063 | 399 |
| HLA-A*02:11 | VLNDILSRLD | VLNDILARLD | 274 | 104 |
| HLA-A*02:01 | SVLNDILSRL | SVLNDILARL | 281 | 107 |
| HLA-A*02:11 | AISSVLNDILSRL | AISSVLNDILARL | 235 | 92 |
| HLA-A*02:01 | SSVLNDILSRL | SSVLNDILARL | 920 | 364 |
| HLA-A*02:02 | LNDILSRL | LNDILARL | 793 | 331 |
| HLA-A*02:11 | SSVLNDILSRL | SSVLNDILARL | 85 | 39 |
| HLA-A*02:11 | ISSVLNDILSRL | ISSVLNDILARL | 105 | 49 |
| HLA-A*68:02 | SVLNDILSRL | SVLNDILARL | 702 | 331 |
| HLA-A*02:02 | GAISSVLNDILSRL | GAISSVLNDILARL | 262 | 124 |
| HLA-A*02:02 | SSVLNDILSRLD | SSVLNDILARLD | 902 | 448 |
| HLA-A*02:11 | SVLNDILSRL | SVLNDILARL | 22 | 11 |
D1118H
Reference GVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQP
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GVFVSNGTHWFVTQRNFYEPQIITTHNTFVSGNCDVVIGIVNNTVYDPLQP
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*30:01 | TTDNTFVSG | TTHNTFVSG | 13098 | 346 |
| HLA-A*68:02 | TTDNTFVSGNCDV | TTHNTFVSGNCDV | 2752 | 249 |
| HLA-C*03:02 | QIITTDNTF | QIITTHNTF | 886 | 205 |
| HLA-B*18:01 | YEPQIITTDNTF | YEPQIITTHNTF | 1026 | 250 |
| HLA-B*15:03 | QIITTDNTF | QIITTHNTF | 144 | 51 |
| HLA-C*14:02 | FYEPQIITTDNTF | FYEPQIITTHNTF | 308 | 110 |
| HLA-A*02:11 | IITTDNTFV | IITTHNTFV | 105 | 47 |

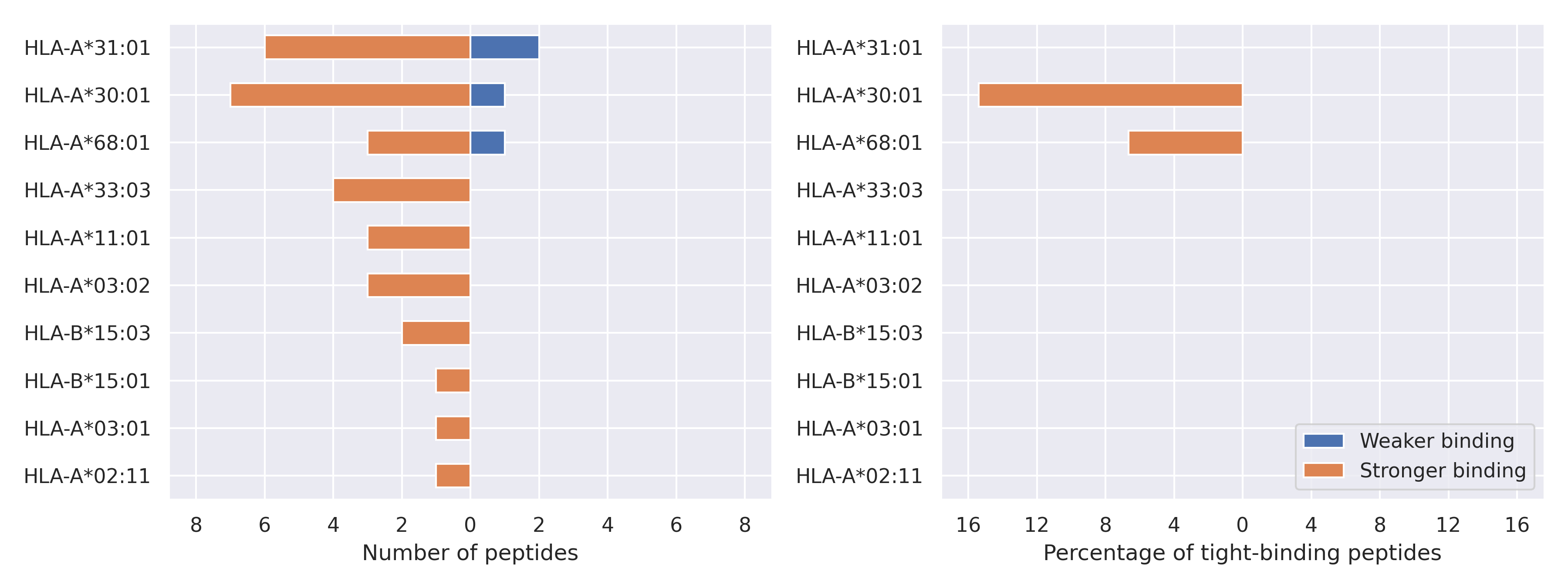

N protein
D3L
Reference MSDNGPQNQRNAPRITFGGPSDSTGSNQ
|| |||||||||||||||||||||||||
Mutated MSLNGPQNQRNAPRITFGGPSDSTGSNQ
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*03:02 | SDNGPQNQR | SLNGPQNQR | 21742 | 265 |
| HLA-A*31:01 | SDNGPQNQR | SLNGPQNQR | 7217 | 137 |
| HLA-A*33:03 | SDNGPQNQR | SLNGPQNQR | 8619 | 290 |
| HLA-A*68:01 | SDNGPQNQR | SLNGPQNQR | 3572 | 198 |
| HLA-A*68:01 | MSDNGPQNQRNAPR | MSLNGPQNQRNAPR | 1120 | 225 |
| HLA-A*31:01 | MSDNGPQNQRNAPR | MSLNGPQNQRNAPR | 627 | 178 |
| HLA-A*33:03 | MSDNGPQNQRNAPR | MSLNGPQNQRNAPR | 565 | 181 |
| HLA-A*31:01 | SDNGPQNQRNAPR | SLNGPQNQRNAPR | 1101 | 415 |
| HLA-A*33:03 | MSDNGPQNQR | MSLNGPQNQR | 290 | 129 |
| HLA-A*31:01 | MSDNGPQNQR | MSLNGPQNQR | 217 | 98 |
203-204 RG->KR
Reference GGSQASSRSSSRSRNSSRNSTPGSSRGTSPARMAGNGGDAALALLLLDRLNQ
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GGSQASSRSSSRSRNSSRNSTPGSSKRTSPARMAGNGGDAALALLLLDRLNQ
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*68:01 | NSTPGSSRG | NSTPGSSKR | 32767 | 34 |
| HLA-A*33:03 | NSTPGSSRG | NSTPGSSKR | 32767 | 300 |
| HLA-B*15:03 | SRGTSPARM | SKRTSPARM | 2669 | 106 |
| HLA-A*31:01 | RNSTPGSSRG | RNSTPGSSKR | 7013 | 340 |
| HLA-A*30:01 | SSRNSTPGSSR | SSRNSTPGSSK | 356 | 20 |
| HLA-A*30:01 | GTSPARMAG | RTSPARMAG | 493 | 30 |
| HLA-A*31:01 | SSRNSTPGSSRG | SSRNSTPGSSKR | 3757 | 231 |
| HLA-A*30:01 | GTSPARMAGNGG | RTSPARMAGNGG | 6051 | 411 |
| HLA-A*31:01 | SSRNSTPGSSR | SSRNSTPGSSK | 127 | 1853 |
| HLA-A*30:01 | NSSRNSTPGSSR | NSSRNSTPGSSK | 4255 | 353 |
| HLA-A*30:01 | RNSTPGSSR | RNSTPGSSK | 2120 | 188 |
| HLA-A*31:01 | RNSTPGSSR | RNSTPGSSK | 123 | 1335 |
| HLA-A*03:01 | SSRNSTPGSSR | SSRNSTPGSSK | 4753 | 442 |
| HLA-A*11:01 | SSRNSTPGSSR | SSRNSTPGSSK | 2231 | 263 |
| HLA-A*68:01 | NSSRNSTPGSSR | NSSRNSTPGSSK | 270 | 1385 |
| HLA-A*30:01 | GSSRGTSPA | GSSKRTSPA | 555 | 145 |
| HLA-A*30:01 | SSRNSTPGSSRG | SSRNSTPGSSKR | 1625 | 469 |
| HLA-A*30:01 | SSRGTSPARMAG | SSKRTSPARMAG | 449 | 1031 |
S235F
Reference MAGNGGDAALALLLLDRLNQLESKMSGKGQQQQGQTVTKKSAAEASKKPRQ
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated MAGNGGDAALALLLLDRLNQLESKMFGKGQQQQGQTVTKKSAAEASKKPRQ
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-B*15:01 | RLNQLESKMS | RLNQLESKMF | 11543 | 128 |
| HLA-B*15:03 | RLNQLESKMS | RLNQLESKMF | 15810 | 402 |
| HLA-A*02:11 | KMSGKGQQQQGQTV | KMFGKGQQQQGQTV | 4223 | 179 |
| HLA-A*11:01 | NQLESKMSGK | NQLESKMFGK | 1477 | 282 |
| HLA-A*03:02 | QLESKMSGK | QLESKMFGK | 782 | 156 |
| HLA-A*11:01 | QLESKMSGK | QLESKMFGK | 1994 | 407 |
| HLA-A*03:02 | RLNQLESKMSGK | RLNQLESKMFGK | 319 | 129 |
NS8 protein
Q27stop
Reference KFLVFLGIITTVAAFHQECSLQSCTQHQPYVVDDPCPIHFYSKWYIRVGARKSAPLIELCVDEAGSKSPIQYIDIGNYTVSCLPFTINCQEPKLGSLVVRCSFYEDFLEYHDVRVVLDFI
|||||||||||||||||||||||||
Mutated KFLVFLGIITTVAAFHQECSLQSCT‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*02:11 | YIDIGNYTV | - | 3 | - |
| HLA-A*29:02 | SFYEDFLEY | - | 3 | - |
| HLA-A*31:01 | HFYSKWYIR | - | 4 | - |
| HLA-A*02:11 | FLEYHDVRV | - | 5 | - |
| HLA-A*33:03 | HFYSKWYIR | - | 5 | - |
| HLA-A*02:06 | YIDIGNYTV | - | 6 | - |
| HLA-B*15:03 | IQYIDIGNY | - | 6 | - |
| HLA-A*68:01 | FTINCQEPK | - | 7 | - |
| HLA-A*02:01 | YIDIGNYTV | - | 8 | - |
| HLA-A*02:02 | FLEYHDVRV | - | 9 | - |
| HLA-A*02:06 | YVVDDPCPI | - | 10 | - |
| HLA-A*02:11 | FLEYHDVRVV | - | 10 | - |
| HLA-B*15:03 | LQSCTQHQPY | LQSCT | 10 | - |
| HLA-C*14:02 | SFYEDFLEY | - | 10 | - |
| HLA-A*02:11 | YVVDDPCPI | - | 13 | - |
| HLA-A*31:01 | IHFYSKWYIR | - | 13 | - |
| HLA-B*53:01 | CPIHFYSKW | - | 13 | - |
| HLA-C*14:02 | NYTVSCLPF | - | 13 | - |
| HLA-B*15:01 | LQSCTQHQPY | LQSCT | 14 | - |
| HLA-A*29:02 | CSFYEDFLEY | - | 15 | - |
| HLA-A*02:02 | YIDIGNYTV | - | 16 | - |
| HLA-C*05:01 | YIDIGNYTV | - | 16 | - |
| HLA-A*02:06 | YTVSCLPFTI | - | 18 | - |
| HLA-A*68:02 | TVSCLPFTI | - | 19 | - |
| HLA-A*02:01 | FLEYHDVRV | - | 22 | - |
| HLA-A*31:01 | KWYIRVGAR | - | 22 | - |
| HLA-A*02:02 | FLEYHDVRVV | - | 24 | - |
| HLA-A*68:02 | YTVSCLPFTI | - | 24 | - |
| HLA-A*02:02 | YVVDDPCPI | - | 29 | - |
| HLA-A*02:11 | YTVSCLPFTI | - | 29 | - |
| HLA-C*03:03 | YVVDDPCPI | - | 29 | - |
| HLA-C*03:04 | YVVDDPCPI | - | 29 | - |
| HLA-A*11:01 | FTINCQEPK | - | 30 | - |
| HLA-C*08:02 | YIDIGNYTV | - | 30 | - |
| HLA-A*02:11 | SLQSCTQHQPYV | SLQSCT | 31 | - |
| HLA-A*31:01 | HFYSKWYIRVGAR | - | 31 | - |
| HLA-A*02:11 | TVSCLPFTI | - | 32 | - |
| HLA-A*33:03 | HFYSKWYIRVGAR | - | 32 | - |
| HLA-B*15:01 | IQYIDIGNY | - | 32 | - |
| HLA-B*40:01 | LEYHDVRVVL | - | 32 | - |
| HLA-A*33:03 | IHFYSKWYIR | - | 35 | - |
| HLA-A*02:02 | YTVSCLPFTI | - | 36 | - |
| HLA-C*14:02 | EYHDVRVVL | - | 38 | - |
| HLA-A*30:02 | IQYIDIGNY | - | 39 | - |
| HLA-B*15:03 | SFYEDFLEY | - | 39 | - |
| HLA-A*02:01 | FLEYHDVRVV | - | 46 | - |
| HLA-A*24:02 | NYTVSCLPF | - | 47 | - |
| HLA-A*30:01 | GSKSPIQYI | - | 47 | - |
| HLA-B*40:02 | LEYHDVRVVL | - | 49 | - |
| HLA-C*03:02 | YTVSCLPF | - | 52 | - |
| HLA-A*23:01 | NYTVSCLPF | - | 53 | - |
| HLA-A*30:02 | GSLVVRCSFY | - | 54 | - |
| HLA-A*29:02 | VRCSFYEDFLEY | - | 55 | - |
| HLA-A*30:01 | GARKSAPLI | - | 55 | - |
| HLA-B*08:01 | YIRVGARKSAPL | - | 55 | - |
| HLA-C*03:02 | YVVDDPCPI | - | 55 | - |
| HLA-A*68:02 | YVVDDPCPI | - | 57 | - |
| HLA-A*02:01 | YVVDDPCPI | - | 59 | - |
| HLA-A*02:06 | YTVSCLPFT | - | 59 | - |
| HLA-B*15:03 | RKSAPLIEL | - | 59 | - |
| HLA-A*29:02 | RCSFYEDFLEY | - | 60 | - |
| HLA-A*29:02 | VVRCSFYEDFLEY | - | 61 | - |
| HLA-A*02:02 | TVSCLPFTI | - | 63 | - |
| HLA-A*31:01 | CPIHFYSKWYIR | - | 74 | - |
| HLA-A*30:01 | RVGARKSAPLI | - | 75 | - |
| HLA-A*01:01 | CSFYEDFLEY | - | 76 | - |
| HLA-A*02:06 | FLEYHDVRV | - | 80 | - |
| HLA-A*29:02 | SLVVRCSFY | - | 84 | - |
| HLA-A*30:02 | LQSCTQHQPY | LQSCT | 84 | - |
| HLA-A*02:06 | TVSCLPFTI | - | 85 | - |
| HLA-A*02:02 | FLEYHDVRVVL | - | 86 | - |
| HLA-A*30:02 | CSFYEDFLEY | - | 89 | - |
| HLA-A*30:02 | SFYEDFLEY | - | 90 | - |
| HLA-C*14:02 | LEYHDVRVVL | - | 90 | - |
| HLA-A*02:01 | YTVSCLPFTI | - | 93 | - |
| HLA-B*58:01 | YTVSCLPFTI | - | 94 | - |
| HLA-C*12:03 | YVVDDPCPI | - | 97 | - |
| HLA-A*29:02 | YVVDDPCPIHFY | - | 98 | - |
| HLA-A*31:01 | HFYSKWYIRV | - | 98 | - |
| HLA-A*02:11 | KLGSLVVRC | - | 101 | - |
| HLA-B*15:03 | GNYTVSCLPF | - | 101 | - |
| HLA-A*30:02 | SLVVRCSFY | - | 103 | - |
| HLA-A*26:01 | YVVDDPCPIHFY | - | 106 | - |
| HLA-A*02:02 | SLQSCTQHQPYV | SLQSCT | 108 | - |
| HLA-A*29:02 | SFYEDFLEYH | - | 110 | - |
| HLA-A*68:02 | FTINCQEPKL | - | 113 | - |
| HLA-B*15:01 | SLVVRCSFY | - | 115 | - |
| HLA-C*14:02 | FYEDFLEY | - | 116 | - |
| HLA-A*33:03 | DFLEYHDVR | - | 117 | - |
| HLA-B*42:01 | EPKLGSLVV | - | 118 | - |
| HLA-A*31:01 | YSKWYIRVGAR | - | 120 | - |
| HLA-A*03:02 | FTINCQEPK | - | 121 | - |
| HLA-A*30:02 | KSPIQYIDIGNY | - | 122 | - |
| HLA-B*40:02 | LEYHDVRVV | - | 122 | - |
| HLA-A*33:03 | CPIHFYSKWYIR | - | 123 | - |
| HLA-C*14:02 | FLEYHDVRVVL | - | 126 | - |
| HLA-B*15:03 | CSFYEDFLEY | - | 128 | - |
| HLA-B*35:01 | SFYEDFLEY | - | 128 | - |
| HLA-A*68:01 | PFTINCQEPK | - | 130 | - |
| HLA-B*15:03 | SLVVRCSFY | - | 130 | - |
| HLA-A*33:03 | FYSKWYIRVGAR | - | 133 | - |
| HLA-B*15:03 | GSLVVRCSF | - | 133 | - |
| HLA-A*02:06 | FTINCQEPKL | - | 134 | - |
| HLA-A*02:11 | QYIDIGNYTV | - | 135 | - |
| HLA-A*02:11 | FLEYHDVRVVL | - | 137 | - |
| HLA-B*57:01 | LGSLVVRCSF | - | 138 | - |
| HLA-A*02:02 | FTINCQEPKL | - | 140 | - |
| HLA-A*31:01 | KWYIRVGARK | - | 145 | - |
| HLA-A*68:01 | HFYSKWYIR | - | 146 | - |
| HLA-A*30:01 | KWYIRVGARK | - | 149 | - |
| HLA-C*03:02 | SFYEDFLEY | - | 152 | - |
| HLA-C*12:02 | YVVDDPCPI | - | 156 | - |
| HLA-A*31:01 | PIHFYSKWYIR | - | 158 | - |
| HLA-B*15:03 | YTVSCLPF | - | 158 | - |
| HLA-C*07:02 | SFYEDFLEY | - | 160 | - |
| HLA-A*33:03 | YSKWYIRVGAR | - | 162 | - |
| HLA-C*17:01 | YVVDDPCPI | - | 163 | - |
| HLA-A*02:01 | SLQSCTQHQPYV | SLQSCT | 164 | - |
| HLA-B*38:01 | IHFYSKWYI | - | 168 | - |
| HLA-A*23:01 | FYSKWYIRV | - | 171 | - |
| HLA-A*29:02 | LVVRCSFYEDFLEY | - | 171 | - |
| HLA-A*02:11 | SLQSCTQHQPYVV | SLQSCT | 172 | - |
| HLA-A*23:01 | QYIDIGNYTV | - | 174 | - |
| HLA-A*33:03 | FYSKWYIR | - | 174 | - |
| HLA-A*33:03 | HFYSKWYIRV | - | 176 | - |
| HLA-B*58:01 | KSAPLIELCV | - | 177 | - |
| HLA-C*17:01 | YIDIGNYTV | - | 181 | - |
| HLA-B*58:01 | LGSLVVRCSF | - | 182 | - |
| HLA-A*31:01 | SKWYIRVGAR | - | 183 | - |
| HLA-B*38:01 | YHDVRVVLDF | - | 184 | - |
| HLA-A*02:06 | FLEYHDVRVV | - | 192 | - |
| HLA-A*30:01 | AGSKSPIQYI | - | 192 | - |
| HLA-C*08:01 | YIDIGNYTV | - | 192 | - |
| HLA-A*11:01 | SCLPFTINCQEPK | - | 193 | - |
| HLA-A*29:02 | FYEDFLEY | - | 195 | - |
| HLA-A*31:01 | FYSKWYIR | - | 195 | - |
| HLA-A*30:02 | KLGSLVVRCSFY | - | 199 | - |
| HLA-B*15:03 | SPIQYIDIGNY | - | 201 | - |
| HLA-B*58:01 | GSLVVRCSF | - | 201 | - |
| HLA-C*14:02 | FYSKWYIRV | - | 207 | - |
| HLA-B*58:01 | CSFYEDFLEY | - | 208 | - |
| HLA-C*03:02 | CSFYEDFLEY | - | 211 | - |
| HLA-B*58:01 | KSAPLIELC | - | 217 | - |
| HLA-B*42:01 | QEPKLGSLVV | - | 218 | - |
| HLA-A*24:02 | NYTVSCLPFTI | - | 221 | - |
| HLA-B*50:01 | LEYHDVRVV | - | 221 | - |
| HLA-B*40:01 | YEDFLEYHDVRVVL | - | 224 | - |
| HLA-A*01:01 | VVDDPCPIHFY | - | 225 | - |
| HLA-B*07:02 | RVGARKSAPL | - | 225 | - |
| HLA-A*30:01 | YSKWYIRVGA | - | 229 | - |
| HLA-C*16:01 | YVVDDPCPI | - | 229 | - |
| HLA-A*23:01 | NYTVSCLPFTI | - | 231 | - |
| HLA-A*30:02 | RCSFYEDFLEY | - | 236 | - |
| HLA-A*68:02 | DVRVVLDFI | - | 236 | - |
| HLA-A*33:03 | DPCPIHFYSKWYIR | - | 238 | - |
| HLA-C*16:01 | YTVSCLPF | - | 240 | - |
| HLA-A*02:01 | TVSCLPFTI | - | 244 | - |
| HLA-A*31:01 | FYSKWYIRVGAR | - | 244 | - |
| HLA-C*05:01 | FLEYHDVRV | - | 244 | - |
| HLA-A*68:02 | YTVSCLPFT | - | 245 | - |
| HLA-C*05:01 | VVDDPCPIHF | - | 247 | - |
| HLA-B*15:03 | KSPIQYIDIGNY | - | 252 | - |
| HLA-A*68:02 | FTINCQEPKLGSLV | - | 254 | - |
| HLA-B*15:01 | CSFYEDFLEY | - | 256 | - |
| HLA-A*24:02 | FYSKWYIRV | - | 261 | - |
| HLA-A*68:02 | YSKWYIRVGA | - | 262 | - |
| HLA-B*57:01 | KLGSLVVRCSF | - | 263 | - |
| HLA-A*01:01 | CVDEAGSKSPIQY | - | 264 | - |
| HLA-A*33:03 | EDFLEYHDVR | - | 264 | - |
| HLA-A*23:01 | IGNYTVSCLPF | - | 272 | - |
| HLA-B*15:03 | SLQSCTQHQPY | SLQSCT | 275 | - |
| HLA-C*02:02 | YVVDDPCPI | - | 275 | - |
| HLA-C*02:10 | YVVDDPCPI | - | 275 | - |
| HLA-B*57:01 | GSLVVRCSF | - | 276 | - |
| HLA-A*32:01 | TVSCLPFTI | - | 294 | - |
| HLA-A*02:02 | SLVVRCSFYEDFL | - | 298 | - |
| HLA-A*02:11 | IQYIDIGNYTV | - | 299 | - |
| HLA-A*30:02 | PIQYIDIGNY | - | 304 | - |
| HLA-A*24:02 | QYIDIGNYTV | - | 310 | - |
| HLA-A*02:11 | YIDIGNYTVS | - | 313 | - |
| HLA-A*02:06 | IQYIDIGNYTV | - | 320 | - |
| HLA-B*15:01 | VVRCSFYEDF | - | 326 | - |
| HLA-B*40:01 | LEYHDVRVV | - | 328 | - |
| HLA-B*15:03 | RCSFYEDFLEY | - | 332 | - |
| HLA-B*15:01 | SLQSCTQHQPY | SLQSCT | 333 | - |
| HLA-C*14:02 | YEDFLEYHDVRVVL | - | 333 | - |
| HLA-A*68:01 | YVVDDPCPIHFYSK | - | 335 | - |
| HLA-A*31:01 | IHFYSKWYIRVGAR | - | 336 | - |
| HLA-B*08:01 | VGARKSAPL | - | 346 | - |
| HLA-C*14:02 | YHDVRVVL | - | 346 | - |
| HLA-A*33:03 | KWYIRVGAR | - | 347 | - |
| HLA-B*15:03 | QSCTQHQPY | QSCT | 350 | - |
| HLA-B*15:01 | SPIQYIDIGNY | - | 352 | - |
| HLA-B*40:02 | YEDFLEYHDV | - | 352 | - |
| HLA-A*33:03 | WYIRVGARK | - | 359 | - |
| HLA-A*33:03 | SKWYIRVGAR | - | 361 | - |
| HLA-C*03:02 | YVVDDPCPIHF | - | 364 | - |
| HLA-A*02:02 | SLQSCTQHQPYVV | SLQSCT | 376 | - |
| HLA-A*30:01 | KWYIRVGAR | - | 382 | - |
| HLA-C*16:01 | IGNYTVSCL | - | 383 | - |
| HLA-B*15:03 | SKSPIQYIDIGNY | - | 384 | - |
| HLA-A*30:02 | QSCTQHQPY | QSCT | 386 | - |
| HLA-B*15:03 | PIQYIDIGNY | - | 390 | - |
| HLA-A*30:02 | SLQSCTQHQPY | SLQSCT | 393 | - |
| HLA-A*11:01 | CSFYEDFLEY | - | 395 | - |
| HLA-A*68:01 | FTINCQEPKL | - | 395 | - |
| HLA-C*16:01 | QSCTQHQPY | QSCT | 397 | - |
| HLA-A*33:03 | PIHFYSKWYIR | - | 398 | - |
| HLA-B*08:01 | SLVVRCSF | - | 399 | - |
| HLA-C*16:01 | GSLVVRCSF | - | 400 | - |
| HLA-A*11:01 | VVDDPCPIHFYSK | - | 401 | - |
| HLA-A*29:02 | GSLVVRCSFY | - | 402 | - |
| HLA-A*68:01 | YSKWYIRVGARK | - | 402 | - |
| HLA-C*15:02 | KSAPLIELCV | - | 403 | - |
| HLA-C*07:02 | EYHDVRVVL | - | 404 | - |
| HLA-A*29:02 | IQYIDIGNY | - | 410 | - |
| HLA-A*02:11 | YIDIGNYTVSCL | - | 412 | - |
| HLA-B*40:06 | LEYHDVRVV | - | 412 | - |
| HLA-A*68:02 | YIDIGNYTV | - | 413 | - |
| HLA-B*15:03 | YHDVRVVLDF | - | 413 | - |
| HLA-A*33:03 | FTINCQEPK | - | 416 | - |
| HLA-B*38:01 | YHDVRVVL | - | 417 | - |
| HLA-A*24:02 | IGNYTVSCLPF | - | 426 | - |
| HLA-A*30:01 | HFYSKWYIR | - | 430 | - |
| HLA-C*15:02 | YTVSCLPFTI | - | 430 | - |
| HLA-B*15:03 | CQEPKLGSL | - | 432 | - |
| HLA-C*12:03 | SFYEDFLEY | - | 443 | - |
| HLA-B*42:01 | YIRVGARKSAPL | - | 448 | - |
| HLA-B*15:03 | VRCSFYEDFLEY | - | 449 | - |
| HLA-B*58:01 | KLGSLVVRCSF | - | 450 | - |
| HLA-C*14:02 | CSFYEDFLEY | - | 454 | - |
| HLA-B*15:01 | YTVSCLPF | - | 456 | - |
| HLA-A*30:02 | SKSPIQYIDIGNY | - | 458 | - |
| HLA-A*02:11 | DFLEYHDVRVV | - | 459 | - |
| HLA-A*11:01 | LPFTINCQEPK | - | 466 | - |
| HLA-B*40:02 | YEDFLEYHDVRVVL | - | 468 | - |
| HLA-B*15:03 | IQYIDIGNYT | - | 483 | - |
| HLA-B*58:01 | TVSCLPFTI | - | 484 | - |
| HLA-C*16:01 | SFYEDFLEY | - | 486 | - |
| HLA-A*30:02 | SPIQYIDIGNY | - | 491 | - |
| HLA-A*02:06 | FTINCQEPKLGSL | - | 492 | - |
| HLA-A*23:01 | GNYTVSCLPF | - | 495 | - |
| HLA-A*33:03 | IHFYSKWYIRVGAR | - | 497 | - |
| HLA-C*14:02 | FYEDFLEYH | - | 497 | - |
| HLA-A*02:01 | FLEYHDVRVVL | - | 499 | - |
| HLA-A*02:06 | LQSCTQHQPYV | LQSCT | 500 | - |
| HLA-A*31:01 | WYIRVGARK | - | 500 | - |

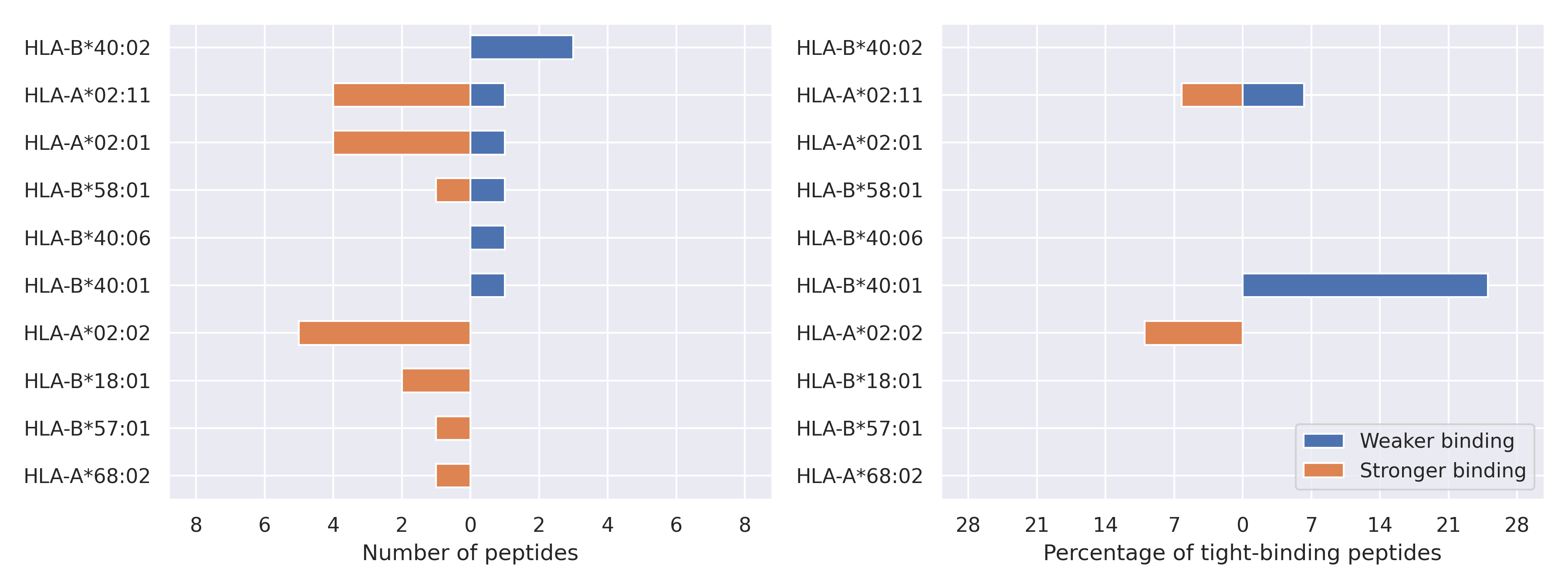

NS9c protein
G50N
Reference AAVKPLLVPHHVVATVQEIQLQAAVGELLLLEWLAMAVMLLLLCCCLTD
||||||||||||||||||||||||| |||||||||||||||||||||||
Mutated AAVKPLLVPHHVVATVQEIQLQAAVNELLLLEWLAMAVMLLLLCCCLTD
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-B*18:01 | GELLLLEWLAM | NELLLLEWLAM | 4979 | 247 |
| HLA-B*18:01 | GELLLLEW | NELLLLEW | 3915 | 401 |
| HLA-B*40:01 | GELLLLEWL | NELLLLEWL | 28 | 140 |
| HLA-A*02:11 | QLQAAVGEL | QLQAAVNEL | 120 | 27 |
| HLA-A*02:11 | IQLQAAVGEL | IQLQAAVNEL | 338 | 81 |
| HLA-B*40:02 | GELLLLEWL | NELLLLEWL | 52 | 204 |
| HLA-B*40:02 | GELLLLEWLAM | NELLLLEWLAM | 201 | 772 |
| HLA-A*02:01 | QLQAAVGEL | QLQAAVNEL | 1290 | 358 |
| HLA-A*02:02 | QLQAAVGEL | QLQAAVNEL | 92 | 28 |
| HLA-B*58:01 | VGELLLLEW | VNELLLLEW | 330 | 1071 |
| HLA-A*02:02 | IQLQAAVGEL | IQLQAAVNEL | 170 | 58 |
| HLA-A*02:01 | LQAAVGELL | LQAAVNELL | 938 | 352 |
| HLA-A*02:02 | LQAAVGELL | LQAAVNELL | 44 | 17 |
| HLA-B*40:06 | GELLLLEWLA | NELLLLEWLA | 268 | 677 |
| HLA-B*40:02 | GELLLLEWLA | NELLLLEWLA | 475 | 1195 |
| HLA-A*02:11 | LQAAVGELL | LQAAVNELL | 386 | 154 |
| HLA-A*02:01 | IQLQAAVGEL | IQLQAAVNEL | 1138 | 475 |
| HLA-A*02:01 | QLQAAVGELL | QLQAAVNELL | 961 | 403 |
| HLA-A*02:01 | GELLLLEWLAMA | NELLLLEWLAMA | 109 | 258 |
| HLA-A*02:02 | QLQAAVGELL | QLQAAVNELL | 35 | 15 |
| HLA-A*02:02 | IQLQAAVGELL | IQLQAAVNELL | 724 | 313 |
| HLA-A*02:11 | QLQAAVGELL | QLQAAVNELL | 303 | 131 |
| HLA-B*58:01 | AVGELLLLEW | AVNELLLLEW | 196 | 87 |
| HLA-A*02:11 | GELLLLEWLAMA | NELLLLEWLAMA | 29 | 61 |
| HLA-B*57:01 | AVGELLLLEW | AVNELLLLEW | 432 | 206 |
| HLA-A*68:02 | EIQLQAAVGELL | EIQLQAAVNELL | 697 | 346 |

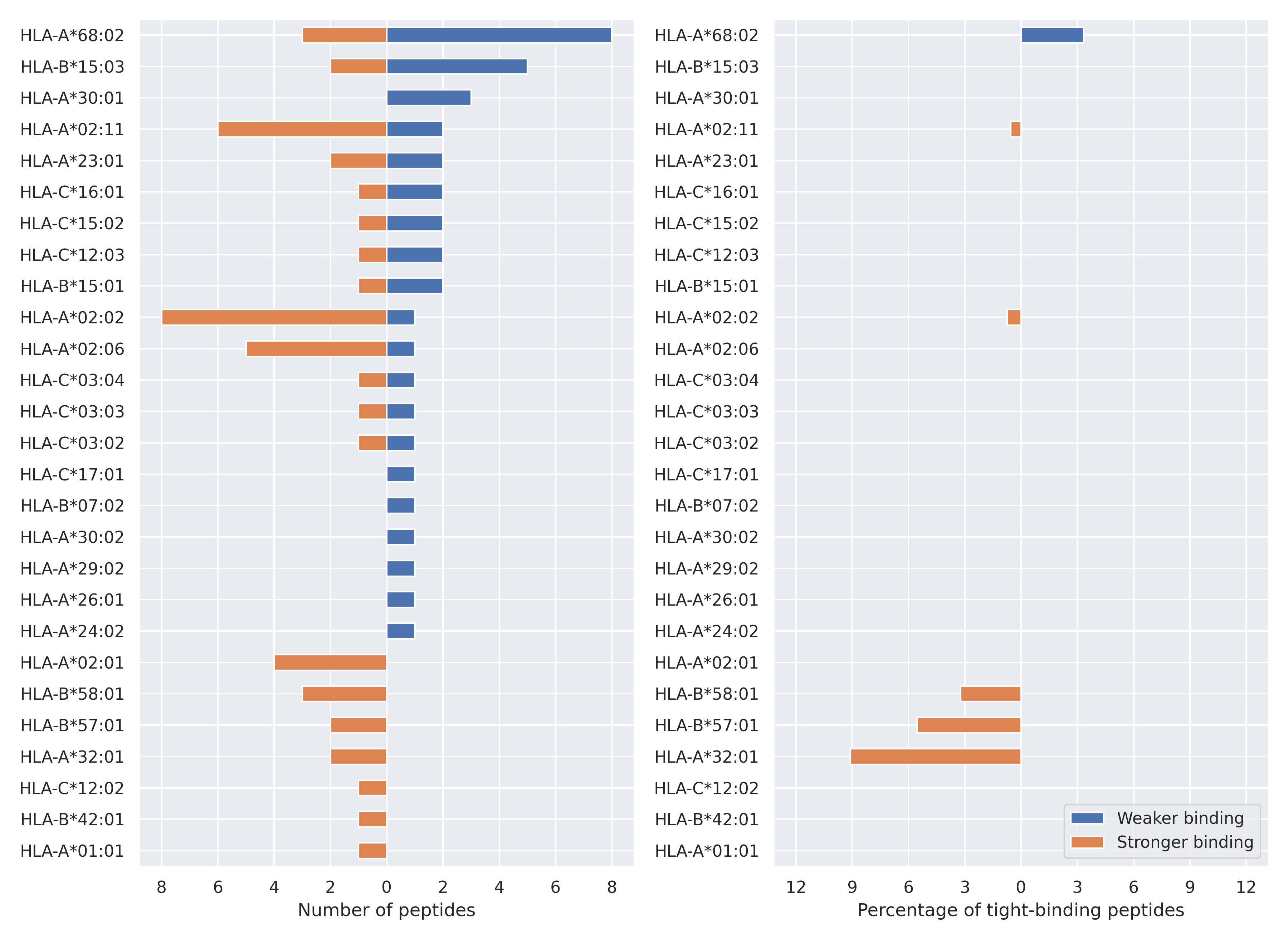

NSP3 protein
T183I
Reference EEDWLDDDSQQTVGQQDGSEDNQTTTIQTIVEVQPQLEMELTPVVQTIEVN
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated EEDWLDDDSQQTVGQQDGSEDNQTTIIQTIVEVQPQLEMELTPVVQTIEVN
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*68:02 | NQTTTIQTIVEV | NQTTIIQTIVEV | 131 | 1642 |
| HLA-A*68:02 | EDNQTTTIQTIVEV | EDNQTTIIQTIVEV | 209 | 2184 |
| HLA-A*02:11 | TTTIQTIVEV | TTIIQTIVEV | 926 | 101 |
| HLA-A*02:01 | TTIQTIVEV | TIIQTIVEV | 449 | 53 |
| HLA-C*15:02 | TTIQTIVEV | TIIQTIVEV | 148 | 1212 |
| HLA-A*68:02 | TTIQTIVEVQ | TIIQTIVEVQ | 486 | 3957 |
| HLA-A*02:02 | TTIQTIVEV | TIIQTIVEV | 586 | 86 |
| HLA-C*16:01 | TTIQTIVEV | TIIQTIVEV | 287 | 1681 |
| HLA-A*02:11 | TTIQTIVEV | TIIQTIVEV | 36 | 7 |
| HLA-A*68:02 | TTIQTIVEV | TIIQTIVEV | 8 | 36 |
| HLA-C*12:03 | TTIQTIVEV | TIIQTIVEV | 65 | 268 |
| HLA-A*02:06 | NQTTTIQTI | NQTTIIQTI | 966 | 325 |
| HLA-A*02:06 | TTTIQTIVEV | TTIIQTIVEV | 346 | 128 |
| HLA-A*02:06 | TTIQTIVEV | TIIQTIVEV | 28 | 14 |
A890D
Reference LQQIELKFNPPALQDAYYRARAGEAANFCALILAYCNKTVGELGDVRETMS
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated LQQIELKFNPPALQDAYYRARAGEADNFCALILAYCNKTVGELGDVRETMS
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-C*16:01 | AANFCALIL | ADNFCALIL | 71 | 26218 |
| HLA-C*03:03 | AANFCALIL | ADNFCALIL | 163 | 32767 |
| HLA-C*03:04 | AANFCALIL | ADNFCALIL | 163 | 32767 |
| HLA-C*03:02 | AANFCALIL | ADNFCALIL | 249 | 32767 |
| HLA-C*12:03 | AANFCALIL | ADNFCALIL | 327 | 31906 |
| HLA-A*68:02 | EAANFCALI | EADNFCALI | 5 | 445 |
| HLA-C*17:01 | AANFCALIL | ADNFCALIL | 417 | 28330 |
| HLA-C*15:02 | AANFCALIL | ADNFCALIL | 444 | 23260 |
| HLA-A*68:02 | EAANFCALIL | EADNFCALIL | 39 | 1878 |
| HLA-B*15:03 | ANFCALILAY | DNFCALILAY | 99 | 3738 |
| HLA-B*15:03 | AANFCALIL | ADNFCALIL | 401 | 11495 |
| HLA-A*68:02 | GEAANFCALI | GEADNFCALI | 256 | 6356 |
| HLA-A*01:01 | EAANFCALILAY | EADNFCALILAY | 2565 | 144 |
| HLA-A*26:01 | EAANFCALILAY | EADNFCALILAY | 318 | 5414 |
| HLA-B*15:01 | ANFCALILAY | DNFCALILAY | 400 | 5972 |
| HLA-A*30:02 | ANFCALILAY | DNFCALILAY | 167 | 2346 |
| HLA-A*02:06 | AANFCALILA | ADNFCALILA | 441 | 4505 |
| HLA-B*07:02 | RARAGEAANF | RARAGEADNF | 420 | 3711 |
| HLA-A*30:01 | RARAGEAAN | RARAGEADN | 425 | 2806 |
| HLA-A*68:02 | EAANFCALILA | EADNFCALILA | 262 | 1482 |
| HLA-B*15:03 | ARAGEAANF | ARAGEADNF | 191 | 929 |
| HLA-B*15:03 | RARAGEAANF | RARAGEADNF | 72 | 338 |
| HLA-B*15:01 | RARAGEAANF | RARAGEADNF | 132 | 605 |
| HLA-A*29:02 | ANFCALILAY | DNFCALILAY | 55 | 231 |
| HLA-A*24:02 | YYRARAGEAANF | YYRARAGEADNF | 167 | 684 |
| HLA-A*23:01 | YYRARAGEAANF | YYRARAGEADNF | 209 | 819 |
| HLA-A*30:01 | RARAGEAANF | RARAGEADNF | 344 | 1332 |
| HLA-B*15:03 | GEAANFCAL | GEADNFCAL | 162 | 420 |
| HLA-A*23:01 | AYYRARAGEAANF | AYYRARAGEADNF | 278 | 625 |
| HLA-A*30:01 | RARAGEAANFCA | RARAGEADNFCA | 258 | 518 |
I1412T
Reference SVGKFCLEASFNYLKSPNFSKLINIIIWFLLLSVCLGSLIYSTAALGVLMS
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated SVGKFCLEASFNYLKSPNFSKLINITIWFLLLSVCLGSLIYSTAALGVLMS
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*68:02 | IIIWFLLLSV | ITIWFLLLSV | 2073 | 142 |
| HLA-A*68:02 | IIWFLLLSV | TIWFLLLSV | 2625 | 320 |
| HLA-B*15:03 | KLINIIIWF | KLINITIWF | 568 | 90 |
| HLA-B*15:01 | KLINIIIWF | KLINITIWF | 1157 | 248 |
| HLA-A*02:02 | YLKSPNFSKLINII | YLKSPNFSKLINIT | 334 | 1554 |
| HLA-C*03:03 | FSKLINIII | FSKLINITI | 2108 | 478 |
| HLA-C*03:04 | FSKLINIII | FSKLINITI | 2108 | 478 |
| HLA-C*16:01 | FSKLINIII | FSKLINITI | 527 | 137 |
| HLA-C*12:03 | FSKLINIII | FSKLINITI | 247 | 65 |
| HLA-C*03:02 | FSKLINIII | FSKLINITI | 1536 | 421 |
| HLA-A*32:01 | KLINIIIWFL | KLINITIWFL | 488 | 141 |
| HLA-A*02:01 | SKLINIIIWFL | SKLINITIWFL | 312 | 91 |
| HLA-A*32:01 | KLINIIIWF | KLINITIWF | 161 | 47 |
| HLA-B*58:01 | FSKLINIIIW | FSKLINITIW | 51 | 15 |
| HLA-A*68:02 | FSKLINIII | FSKLINITI | 1131 | 345 |
| HLA-A*02:06 | SKLINIIIWFL | SKLINITIWFL | 940 | 293 |
| HLA-A*02:06 | LINIIIWFL | LINITIWFL | 432 | 137 |
| HLA-A*02:02 | SKLINIIIWFL | SKLINITIWFL | 609 | 195 |
| HLA-A*02:11 | LINIIIWFLL | LINITIWFLL | 444 | 146 |
| HLA-A*23:01 | KLINIIIWF | KLINITIWF | 1357 | 449 |
| HLA-A*23:01 | INIIIWFLL | INITIWFLL | 1280 | 432 |
| HLA-B*57:01 | FSKLINIIIW | FSKLINITIW | 79 | 27 |
| HLA-A*02:11 | SKLINIIIWFL | SKLINITIWFL | 88 | 32 |
| HLA-C*15:02 | FSKLINIII | FSKLINITI | 1149 | 428 |
| HLA-A*02:11 | YLKSPNFSKLINII | YLKSPNFSKLINIT | 314 | 833 |
| HLA-A*02:02 | LINIIIWFLL | LINITIWFLL | 447 | 169 |
| HLA-A*02:01 | LINIIIWFL | LINITIWFL | 335 | 127 |
| HLA-B*57:01 | KSPNFSKLINIIIW | KSPNFSKLINITIW | 454 | 176 |
| HLA-B*58:01 | KSPNFSKLINIIIW | KSPNFSKLINITIW | 382 | 150 |
| HLA-B*42:01 | SPNFSKLINIII | SPNFSKLINITI | 633 | 254 |
| HLA-B*15:03 | SKLINIIIWF | SKLINITIWF | 222 | 90 |
| HLA-A*02:01 | FSKLINIIIWFL | FSKLINITIWFL | 1189 | 487 |
| HLA-C*12:02 | FSKLINIII | FSKLINITI | 1099 | 482 |
| HLA-A*02:02 | SKLINIIIWFLL | SKLINITIWFLL | 810 | 365 |
| HLA-A*02:11 | NFSKLINIIIWFL | NFSKLINITIWFL | 909 | 417 |
| HLA-A*02:02 | FSKLINIIIWFL | FSKLINITIWFL | 853 | 394 |
| HLA-A*02:02 | KLINIIIWFLLL | KLINITIWFLLL | 114 | 53 |
| HLA-B*58:01 | KLINIIIW | KLINITIW | 930 | 441 |
| HLA-A*02:11 | FSKLINIIIWFL | FSKLINITIWFL | 198 | 94 |
| HLA-A*02:02 | KLINIIIWF | KLINITIWF | 815 | 387 |
| HLA-A*02:11 | NIIIWFLLL | NITIWFLLL | 245 | 511 |
| HLA-A*02:02 | KLINIIIWFLL | KLINITIWFLL | 76 | 38 |

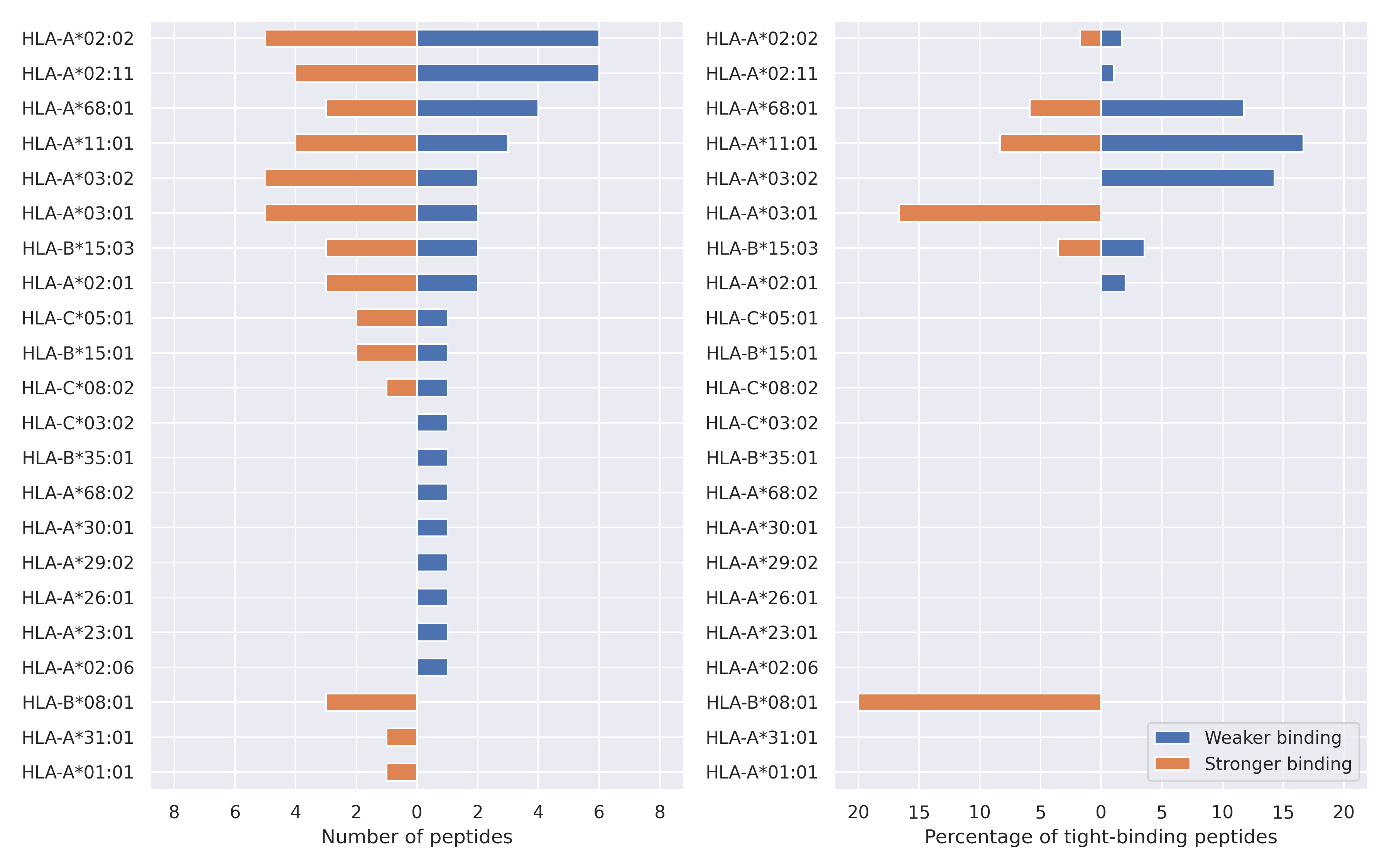

NSP6 protein
SGF 106-108 deletion
Reference FNMVYMPASWVMRIMTWLDMVDTSLSGFKLKDCVMYASAVVLLILMTARTVYD
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated FNMVYMPASWVMRIMTWLDMVDTSL‑‑‑KLKDCVMYASAVVLLILMTARTVYD
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*02:02 | FKLKDCVMYA | - | 8 | - |
| HLA-A*02:11 | FKLKDCVMYA | - | 12 | - |
| HLA-A*68:01 | MVDTSLSGFK | MVDTSLK | 13 | - |
| HLA-B*15:03 | FKLKDCVMY | - | 15 | - |
| HLA-A*11:01 | MVDTSLSGFK | MVDTSLK | 21 | - |
| HLA-A*11:01 | TSLSGFKLK | TSLKLK | 22 | - |
| HLA-A*03:01 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 25 |
| HLA-A*02:01 | FKLKDCVMYA | - | 27 | - |
| HLA-A*68:01 | DTSLSGFKLK | DTSLKLK | 33 | - |
| HLA-A*03:02 | MVDTSLSGFK | MVDTSLK | 35 | - |
| HLA-A*68:01 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 37 |
| HLA-A*03:01 | MVDTSLSGFK | MVDTSLK | 54 | - |
| HLA-A*03:02 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 59 |
| HLA-C*05:01 | MVDTSLSGF | MVDTSL | 64 | - |
| HLA-A*11:01 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 71 |
| HLA-A*02:06 | FKLKDCVMYA | - | 90 | - |
| HLA-A*30:01 | TSLSGFKLK | TSLKLK | 107 | - |
| HLA-A*02:02 | SGFKLKDCVMYA | - | 126 | - |
| HLA-A*11:01 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 128 |
| HLA-A*03:02 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 147 |
| HLA-C*08:02 | MVDTSLSGF | MVDTSL | 159 | - |
| HLA-A*03:02 | IMTWLDMVDTSLSGFK | IMTWLDMVDTSLK | - | 168 |
| HLA-A*02:11 | SGFKLKDCVMYA | - | 200 | - |
| HLA-A*02:02 | MTWLDMVDTSLSGFKL | MTWLDMVDTSLKL | - | 202 |
| HLA-A*01:01 | MVDTSLSGFKLKDCVMY | MVDTSLKLKDCVMY | - | 207 |
| HLA-C*03:02 | MVDTSLSGF | MVDTSL | 211 | - |
| HLA-A*02:02 | GFKLKDCVMYA | - | 239 | - |
| HLA-A*02:02 | TSLSGFKLKDCVMYA | TSLKLKDCVMYA | - | 244 |
| HLA-A*03:01 | TSLSGFKLK | TSLKLK | 244 | - |
| HLA-B*15:03 | MVDTSLSGF | MVDTSL | 276 | - |
| HLA-A*68:01 | TSLSGFKLK | TSLKLK | 286 | - |
| HLA-A*03:02 | TSLSGFKLK | TSLKLK | 289 | - |
| HLA-A*03:01 | IMTWLDMVDTSLSGFK | IMTWLDMVDTSLK | - | 309 |
| HLA-A*68:02 | DTSLSGFKL | DTSLKL | 313 | - |
| HLA-A*02:11 | MTWLDMVDTSLSGFKL | MTWLDMVDTSLKL | - | 346 |
| HLA-B*15:01 | DMVDTSLSGF | DMVDTSL | 362 | - |
| HLA-A*23:01 | TWLDMVDTSLSGF | - | 387 | - |
| HLA-A*02:11 | GFKLKDCVMYA | - | 394 | - |
| HLA-A*03:01 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 415 |
| HLA-A*26:01 | DMVDTSLSGF | DMVDTSL | 417 | - |
| HLA-B*08:01 | MVDTSLSGFKLKDCVM | MVDTSLKLKDCVM | - | 426 |
| HLA-A*02:02 | WLDMVDTSLS | - | 441 | - |
| HLA-A*02:11 | FKLKDCVMYASAVV | - | 481 | - |
| HLA-A*11:01 | DTSLSGFKLK | DTSLKLK | 488 | - |
| HLA-B*35:01 | MVDTSLSGF | MVDTSL | 490 | - |
| HLA-A*31:01 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 493 |
| HLA-B*15:03 | LSGFKLKDCVMY | LKLKDCVMY | 3466 | 22 |
| HLA-A*02:11 | LDMVDTSLSGFKL | LDMVDTSLKL | 16396 | 166 |
| HLA-A*02:02 | LDMVDTSLSGFKL | LDMVDTSLKL | 9971 | 106 |
| HLA-A*02:11 | SLSGFKLKDCV | SLKLKDCV | 122 | 9934 |
| HLA-A*02:01 | LDMVDTSLSGFKL | LDMVDTSLKL | 20579 | 311 |
| HLA-B*08:01 | SLSGFKLKDCVM | SLKLKDCVM | 929 | 36 |
| HLA-A*02:02 | SLSGFKLKDCV | SLKLKDCV | 408 | 10216 |
| HLA-C*05:01 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 8375 | 417 |
| HLA-B*15:01 | SLSGFKLKDCVMY | SLKLKDCVMY | 2952 | 158 |
| HLA-B*08:01 | TSLSGFKLKDCVM | TSLKLKDCVM | 4628 | 289 |
| HLA-B*15:01 | SLSGFKLKDCVM | SLKLKDCVM | 2654 | 197 |
| HLA-A*68:01 | DMVDTSLSGFK | DMVDTSLK | 366 | 4919 |
| HLA-A*02:11 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 1342 | 108 |
| HLA-C*08:02 | MVDTSLSGFKL | MVDTSLKL | 2134 | 174 |
| HLA-B*15:03 | SLSGFKLKDCVM | SLKLKDCVM | 3634 | 297 |
| HLA-A*02:01 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 2214 | 195 |
| HLA-A*03:02 | WLDMVDTSLSGFK | WLDMVDTSLK | 1756 | 156 |
| HLA-A*02:02 | LSGFKLKDCVMYA | LKLKDCVMYA | 305 | 28 |
| HLA-A*02:01 | LSGFKLKDCVMYA | LKLKDCVMYA | 1788 | 165 |
| HLA-A*02:11 | LSGFKLKDCVMYA | LKLKDCVMYA | 578 | 54 |
| HLA-B*15:03 | SLSGFKLKDCVMY | SLKLKDCVMY | 3626 | 349 |
| HLA-A*03:01 | WLDMVDTSLSGFK | WLDMVDTSLK | 2900 | 287 |
| HLA-C*05:01 | MVDTSLSGFKL | MVDTSLKL | 1125 | 124 |
| HLA-A*11:01 | WLDMVDTSLSGFK | WLDMVDTSLK | 4020 | 492 |
| HLA-A*02:02 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 788 | 116 |
| HLA-A*68:01 | DMVDTSLSGFKLK | DMVDTSLKLK | 1679 | 251 |
| HLA-A*02:01 | SLSGFKLKDCVMYA | SLKLKDCVMYA | 203 | 853 |
| HLA-A*02:11 | SLSGFKLKDCVMYA | SLKLKDCVMYA | 64 | 223 |
| HLA-A*02:02 | SLSGFKLKDCVMYA | SLKLKDCVMYA | 55 | 171 |
| HLA-A*29:02 | SLSGFKLKDCVMY | SLKLKDCVMY | 404 | 1192 |
| HLA-A*11:01 | MVDTSLSGFKLK | MVDTSLKLK | 143 | 50 |
| HLA-A*03:02 | MVDTSLSGFKLK | MVDTSLKLK | 312 | 127 |
| HLA-A*68:01 | MVDTSLSGFKLK | MVDTSLKLK | 602 | 246 |
| HLA-A*03:01 | MVDTSLSGFKLK | MVDTSLKLK | 441 | 190 |

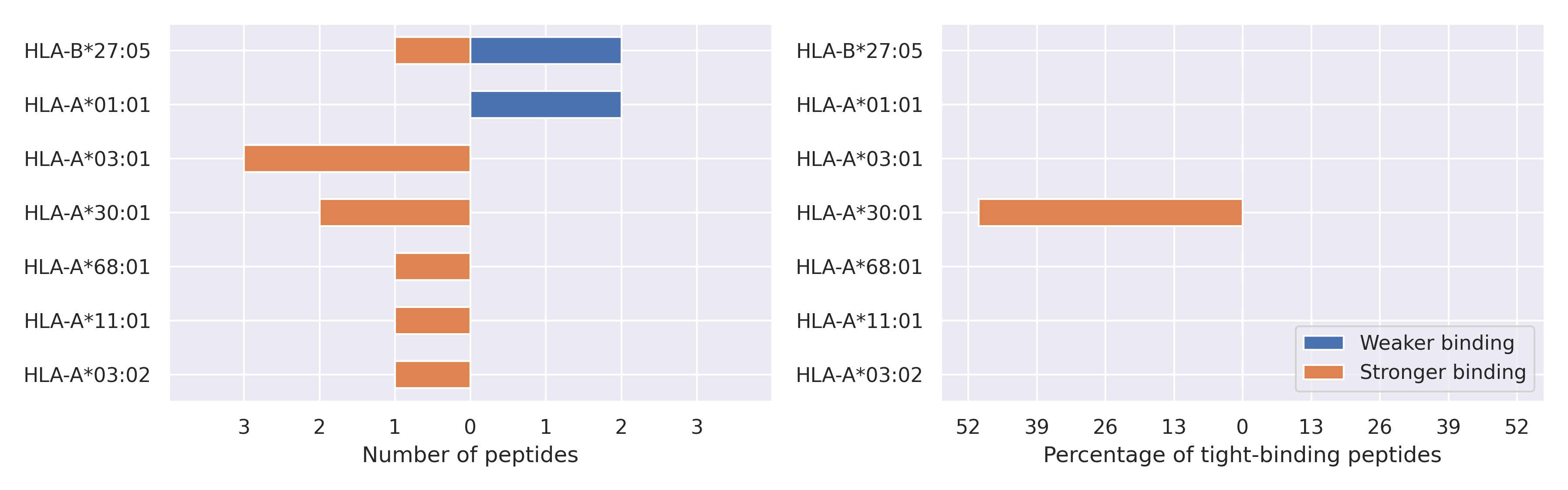

NSP9 protein
D78N
Reference WARFPKSDGTGTIYTELEPPCRFVTDTPKGPKVKYLYFIKGLNNLNRGMVL
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated WARFPKSDGTGTIYTELEPPCRFVTNTPKGPKVKYLYFIKGLNNLNRGMVL
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-B*27:05 | CRFVTDTPK | CRFVTNTPK | 73 | - |
| HLA-B*27:05 | CRFVTDTPKGPK | CRFVTNTPKGPK | 302 | - |
| HLA-A*01:01 | VTDTPKGPKVKYLY | VTNTPKGPKVKYLY | 57 | 2541 |
| HLA-A*30:01 | VTDTPKGPK | VTNTPKGPK | 1758 | 46 |
| HLA-A*01:01 | VTDTPKGPKVKY | VTNTPKGPKVKY | 277 | 6463 |
| HLA-A*68:01 | VTDTPKGPK | VTNTPKGPK | 2219 | 277 |
| HLA-A*03:01 | VTDTPKGPK | VTNTPKGPK | 694 | 102 |
| HLA-A*30:01 | RFVTDTPKGPK | RFVTNTPKGPK | 959 | 142 |
| HLA-A*03:01 | RFVTDTPKGPK | RFVTNTPKGPK | 1503 | 399 |
| HLA-A*03:01 | FVTDTPKGPK | FVTNTPKGPK | 948 | 323 |
| HLA-B*27:05 | LEPPCRFVTDTPK | LEPPCRFVTNTPK | 1066 | 368 |
| HLA-A*03:02 | VTDTPKGPK | VTNTPKGPK | 713 | 268 |
| HLA-A*11:01 | VTDTPKGPK | VTNTPKGPK | 137 | 57 |

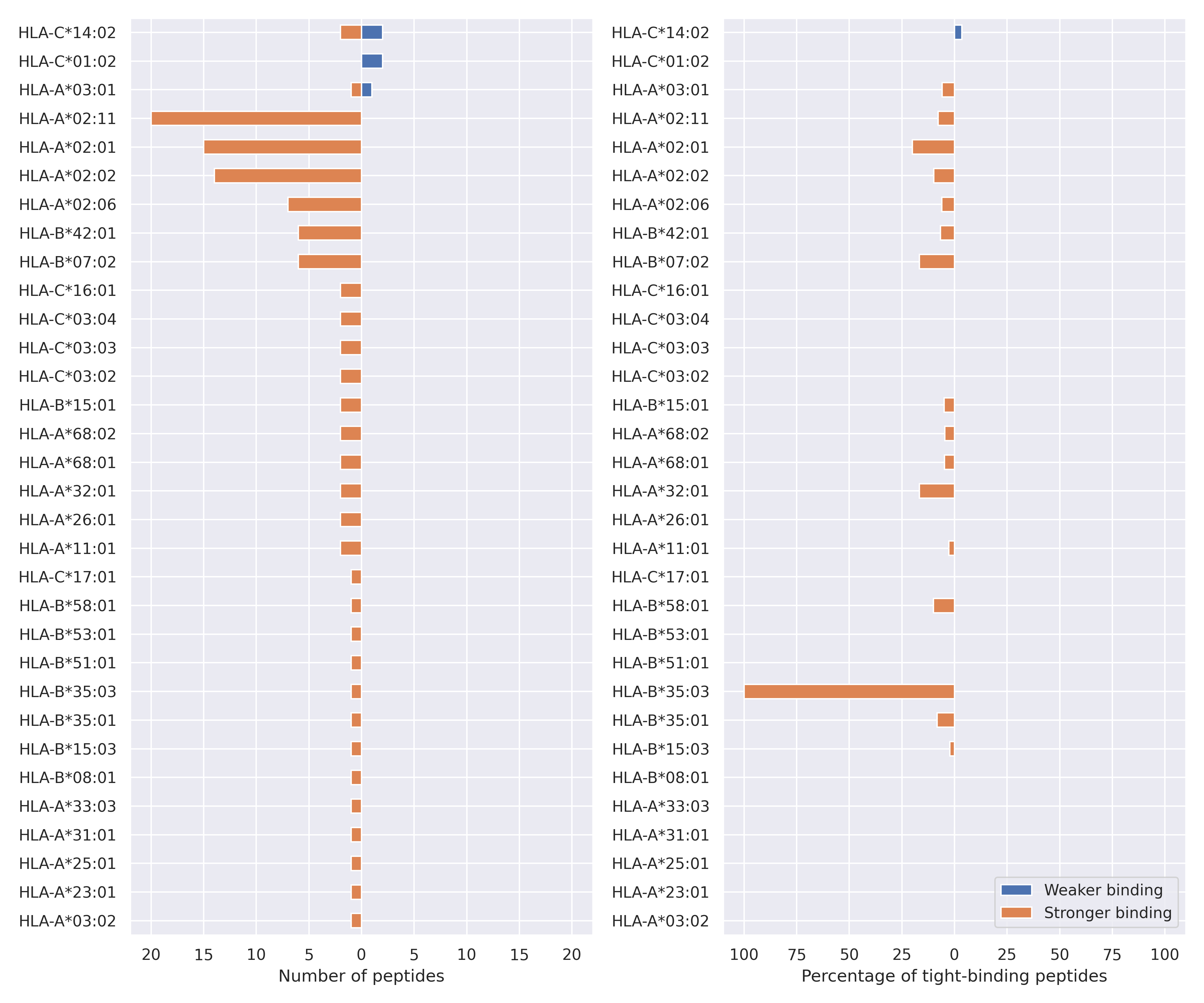

NSP12 protein
P323L
Reference CVNCLDDRCILHCANFNVLFSTVFPPTSFGPLVRKIFVDGVPFVVSTGYHF
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated CVNCLDDRCILHCANFNVLFSTVFPLTSFGPLVRKIFVDGVPFVVSTGYHF
| Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
|---|---|---|---|---|
| HLA-A*02:01 | FPPTSFGPLV | FPLTSFGPLV | 8999 | 21 |
| HLA-A*02:02 | FPPTSFGPLV | FPLTSFGPLV | 7237 | 18 |
| HLA-A*02:11 | FPPTSFGPLV | FPLTSFGPLV | 3405 | 9 |
| HLA-A*32:01 | VLFSTVFPP | VLFSTVFPL | 5415 | 27 |
| HLA-A*02:11 | LFSTVFPP | LFSTVFPL | 6706 | 35 |
| HLA-A*02:11 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 1827 | 12 |
| HLA-A*02:11 | NFNVLFSTVFPP | NFNVLFSTVFPL | 1779 | 13 |
| HLA-A*02:11 | NVLFSTVFPP | NVLFSTVFPL | 739 | 6 |
| HLA-C*03:03 | VLFSTVFPP | VLFSTVFPL | 28468 | 265 |
| HLA-C*03:04 | VLFSTVFPP | VLFSTVFPL | 28468 | 265 |
| HLA-A*02:11 | FNVLFSTVFPP | FNVLFSTVFPL | 413 | 4 |
| HLA-C*14:02 | VLFSTVFPP | VLFSTVFPL | 21407 | 220 |
| HLA-A*02:11 | FNVLFSTVFPPT | FNVLFSTVFPLT | 2618 | 27 |
| HLA-A*02:01 | LFSTVFPP | LFSTVFPL | 7475 | 81 |
| HLA-C*14:02 | LFSTVFPP | LFSTVFPL | 11979 | 138 |
| HLA-B*15:03 | VLFSTVFPP | VLFSTVFPL | 3115 | 36 |
| HLA-A*02:11 | VLFSTVFPP | VLFSTVFPL | 78 | 1 |
| HLA-C*03:02 | VLFSTVFPP | VLFSTVFPL | 20533 | 273 |
| HLA-A*02:01 | FNVLFSTVFPP | FNVLFSTVFPL | 656 | 9 |
| HLA-A*02:01 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 2569 | 37 |
| HLA-A*02:11 | FNVLFSTVFPPTS | FNVLFSTVFPLTS | 9448 | 142 |
| HLA-A*02:02 | NVLFSTVFPP | NVLFSTVFPL | 1088 | 17 |
| HLA-A*02:11 | CANFNVLFSTVFPP | CANFNVLFSTVFPL | 6143 | 96 |
| HLA-A*02:02 | FNVLFSTVFPP | FNVLFSTVFPL | 1014 | 16 |
| HLA-A*68:02 | NVLFSTVFPP | NVLFSTVFPL | 2213 | 37 |
| HLA-A*02:02 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 3126 | 53 |
| HLA-A*02:11 | PPTSFGPLV | PLTSFGPLV | 28329 | 483 |
| HLA-C*16:01 | VLFSTVFPP | VLFSTVFPL | 24733 | 432 |
| HLA-C*17:01 | VLFSTVFPP | VLFSTVFPL | 25087 | 439 |
| HLA-A*02:01 | FNVLFSTVFPPT | FNVLFSTVFPLT | 3765 | 66 |
| HLA-A*02:02 | LFSTVFPP | LFSTVFPL | 9311 | 167 |
| HLA-A*02:01 | NVLFSTVFPP | NVLFSTVFPL | 928 | 17 |
| HLA-A*02:02 | NFNVLFSTVFPP | NFNVLFSTVFPL | 2542 | 47 |
| HLA-A*02:02 | VLFSTVFPP | VLFSTVFPL | 269 | 5 |
| HLA-A*02:01 | NFNVLFSTVFPP | NFNVLFSTVFPL | 2286 | 44 |
| HLA-A*02:06 | FPPTSFGPLV | FPLTSFGPLV | 3379 | 73 |
| HLA-A*02:01 | VLFSTVFPP | VLFSTVFPL | 179 | 4 |
| HLA-A*02:06 | FNVLFSTVFPP | FNVLFSTVFPL | 1609 | 37 |
| HLA-A*02:02 | FNVLFSTVFPPT | FNVLFSTVFPLT | 4116 | 110 |
| HLA-A*02:11 | FSTVFPPTSFGPLV | FSTVFPLTSFGPLV | 6695 | 180 |
| HLA-A*02:01 | FNVLFSTVFPPTS | FNVLFSTVFPLTS | 11451 | 311 |
| HLA-A*02:06 | VLFSTVFPP | VLFSTVFPL | 368 | 10 |
| HLA-A*02:11 | ANFNVLFSTVFPPT | ANFNVLFSTVFPLT | 14639 | 409 |
| HLA-A*02:01 | FSTVFPPTSFGPLV | FSTVFPLTSFGPLV | 12596 | 425 |
| HLA-A*68:01 | PTSFGPLVR | LTSFGPLVR | 908 | 36 |
| HLA-A*02:06 | NVLFSTVFPP | NVLFSTVFPL | 1611 | 66 |
| HLA-B*15:01 | VLFSTVFPP | VLFSTVFPL | 5731 | 243 |
| HLA-B*35:01 | FPPTSFGPL | FPLTSFGPL | 304 | 13 |
| HLA-B*53:01 | FPPTSFGPL | FPLTSFGPL | 3581 | 154 |
| HLA-C*01:02 | FPPTSFGPL | FPLTSFGPL | 217 | 4855 |
| HLA-A*02:01 | CANFNVLFSTVFPP | CANFNVLFSTVFPL | 8519 | 384 |
| HLA-A*02:02 | FNVLFSTVFPPTS | FNVLFSTVFPLTS | 10920 | 497 |
| HLA-A*02:02 | FSTVFPPTSFGPLV | FSTVFPLTSFGPLV | 6958 | 322 |
| HLA-A*02:11 | VFPPTSFGPLV | VFPLTSFGPLV | 4242 | 199 |
| HLA-A*02:02 | CANFNVLFSTVFPP | CANFNVLFSTVFPL | 8183 | 391 |
| HLA-A*02:11 | NFNVLFSTVFPPT | NFNVLFSTVFPLT | 9111 | 472 |
| HLA-A*02:06 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 5191 | 304 |
| HLA-A*02:06 | NFNVLFSTVFPP | NFNVLFSTVFPL | 4220 | 274 |
| HLA-A*02:06 | FNVLFSTVFPPT | FNVLFSTVFPLT | 4868 | 388 |
| HLA-B*35:03 | FPPTSFGPL | FPLTSFGPL | 286 | 24 |
| HLA-A*03:01 | PTSFGPLVRK | LTSFGPLVRK | 554 | 47 |
| HLA-A*31:01 | PTSFGPLVR | LTSFGPLVR | 4402 | 390 |
| HLA-A*11:01 | PTSFGPLVR | LTSFGPLVR | 4068 | 379 |
| HLA-A*03:02 | PTSFGPLVRK | LTSFGPLVRK | 868 | 88 |
| HLA-B*07:02 | STVFPPTSFGPL | STVFPLTSFGPL | 777 | 79 |
| HLA-A*68:01 | PTSFGPLVRK | LTSFGPLVRK | 308 | 34 |
| HLA-B*07:02 | TVFPPTSFGPL | TVFPLTSFGPL | 1498 | 171 |
| HLA-A*02:11 | STVFPPTSFGPLV | STVFPLTSFGPLV | 2427 | 285 |
| HLA-A*02:11 | NVLFSTVFPPT | NVLFSTVFPLT | 1183 | 139 |
| HLA-A*33:03 | PTSFGPLVR | LTSFGPLVR | 3228 | 381 |
| HLA-A*26:01 | STVFPPTSF | STVFPLTSF | 786 | 95 |
| HLA-B*07:02 | VFPPTSFGPL | VFPLTSFGPL | 339 | 43 |
| HLA-A*02:01 | NVLFSTVFPPT | NVLFSTVFPLT | 2111 | 290 |
| HLA-B*42:01 | FSTVFPPTSFGPL | FSTVFPLTSFGPL | 1320 | 185 |
| HLA-B*42:01 | STVFPPTSFGPL | STVFPLTSFGPL | 738 | 111 |
| HLA-A*02:01 | VLFSTVFPPTSF | VLFSTVFPLTSF | 2225 | 342 |
| HLA-B*08:01 | FPPTSFGPL | FPLTSFGPL | 973 | 153 |
| HLA-B*42:01 | TVFPPTSFGPL | TVFPLTSFGPL | 843 | 142 |
| HLA-A*11:01 | PTSFGPLVRK | LTSFGPLVRK | 123 | 21 |
| HLA-B*42:01 | VFPPTSFGPL | VFPLTSFGPL | 274 | 47 |
| HLA-A*02:01 | VLFSTVFPPTS | VLFSTVFPLTS | 708 | 124 |
| HLA-B*07:02 | FSTVFPPTSFGPL | FSTVFPLTSFGPL | 2537 | 466 |
| HLA-B*07:02 | FPPTSFGPL | FPLTSFGPL | 42 | 8 |
| HLA-A*02:11 | VLFSTVFPPTSF | VLFSTVFPLTSF | 1019 | 195 |
| HLA-A*25:01 | STVFPPTSF | STVFPLTSF | 1533 | 296 |
| HLA-B*07:02 | FPPTSFGPLV | FPLTSFGPLV | 1131 | 236 |
| HLA-B*42:01 | FPPTSFGPL | FPLTSFGPL | 21 | 5 |
| HLA-A*26:01 | FSTVFPPTSF | FSTVFPLTSF | 1667 | 398 |
| HLA-B*51:01 | FPPTSFGPL | FPLTSFGPL | 1809 | 433 |
| HLA-A*02:11 | VLFSTVFPPTS | VLFSTVFPLTS | 309 | 74 |
| HLA-B*42:01 | FPPTSFGPLV | FPLTSFGPLV | 368 | 89 |
| HLA-A*02:02 | VLFSTVFPPTS | VLFSTVFPLTS | 1210 | 377 |
| HLA-C*03:02 | FPPTSFGPL | FPLTSFGPL | 960 | 313 |
| HLA-A*32:01 | STVFPPTSF | STVFPLTSF | 230 | 86 |
| HLA-B*58:01 | FSTVFPPTSF | FSTVFPLTSF | 88 | 33 |
| HLA-B*15:01 | STVFPPTSF | STVFPLTSF | 130 | 49 |
| HLA-A*02:01 | VLFSTVFPPT | VLFSTVFPLT | 61 | 23 |
| HLA-C*03:03 | FPPTSFGPL | FPLTSFGPL | 375 | 145 |
| HLA-C*03:04 | FPPTSFGPL | FPLTSFGPL | 375 | 145 |
| HLA-A*02:02 | VLFSTVFPPT | VLFSTVFPLT | 113 | 44 |
| HLA-C*16:01 | FSTVFPPTS | FSTVFPLTS | 1127 | 460 |
| HLA-C*14:02 | LFSTVFPPTSF | LFSTVFPLTSF | 396 | 950 |
| HLA-C*01:02 | VFPPTSFGPL | VFPLTSFGPL | 429 | 997 |
| HLA-A*02:02 | TVFPPTSFGPLV | TVFPLTSFGPLV | 789 | 343 |
| HLA-A*68:02 | STVFPPTSFGPLV | STVFPLTSFGPLV | 169 | 74 |
| HLA-A*02:11 | VLFSTVFPPT | VLFSTVFPLT | 25 | 11 |
| HLA-A*03:01 | TVFPPTSFGPLVRK | TVFPLTSFGPLVRK | 92 | 198 |
| HLA-C*14:02 | VFPPTSFGPL | VFPLTSFGPL | 47 | 99 |
| HLA-A*23:01 | LFSTVFPPTSF | LFSTVFPLTSF | 370 | 179 |
