This strain contains 53 protein-level mutations:
We identified all possible linear viral peptides affected by these mutations. Whenever it was possible, we matched the reference peptide with the mutated one. For example, D -> L mutation transformed SDNGPQNQR to SLNGPQNQR. Cases when it was not meaningful included deletions and insertions at the flanks of the peptide, e.g., HV deletion in NVTWFHAIHV peptide.
Then, we predicted binding affinities between the selected peptides and frequent HLA alleles. Predictions were made with NetMHCpan-4.1 and NetMHCIIpan-4.0. The binding affinities were classifies into three groups:
Here we report HLA-peptide interactions whose affinity was altered by at least two folds. Note that mutations with empty set of altered interactions are not showed.

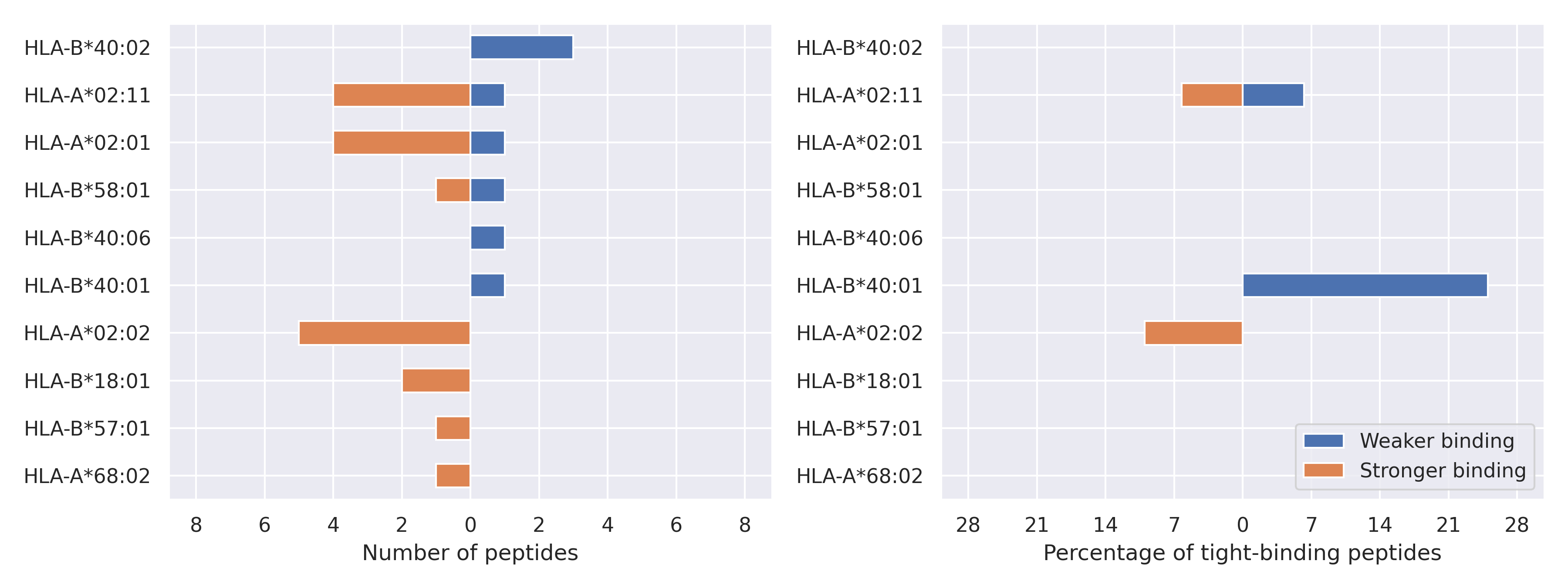

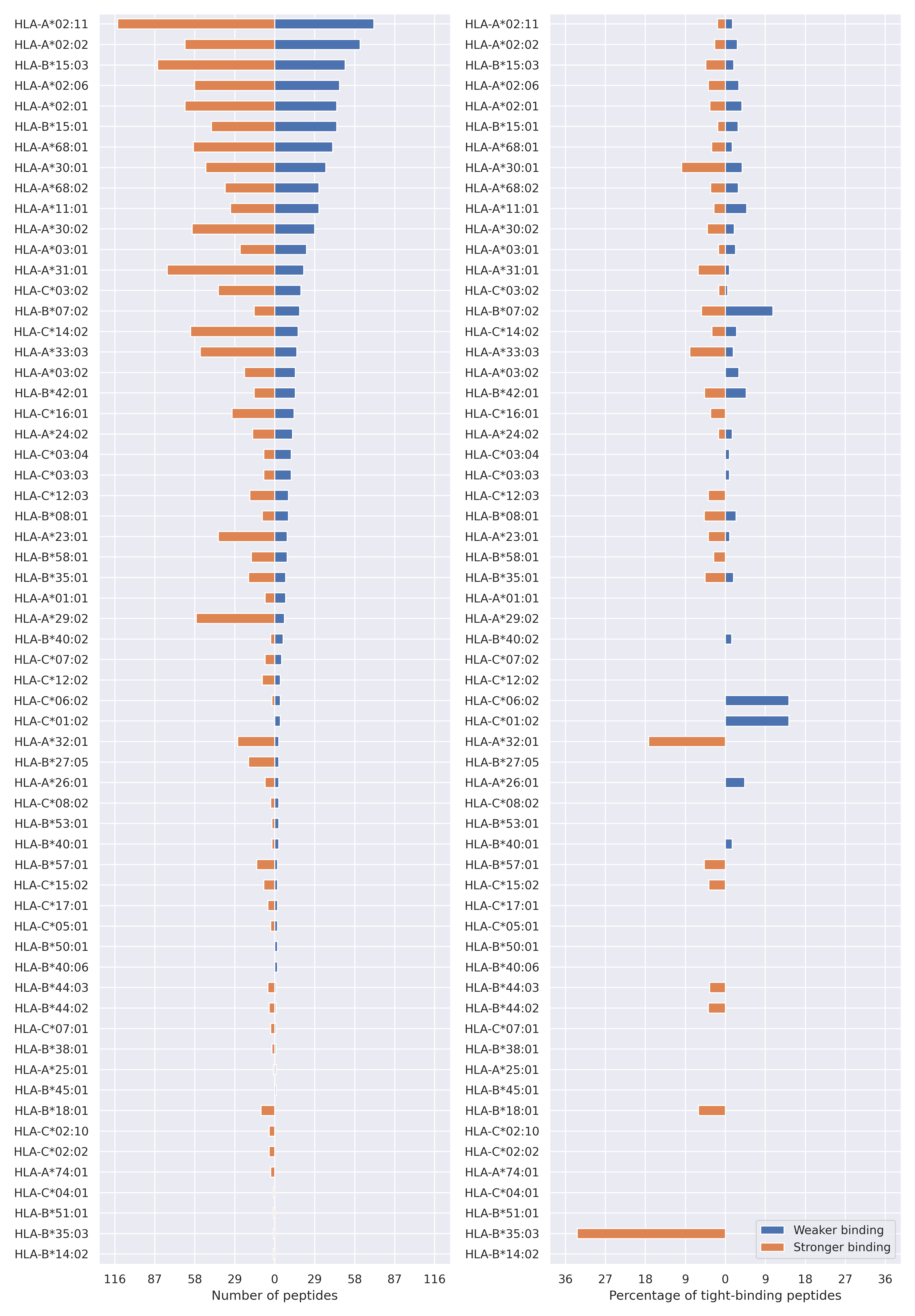

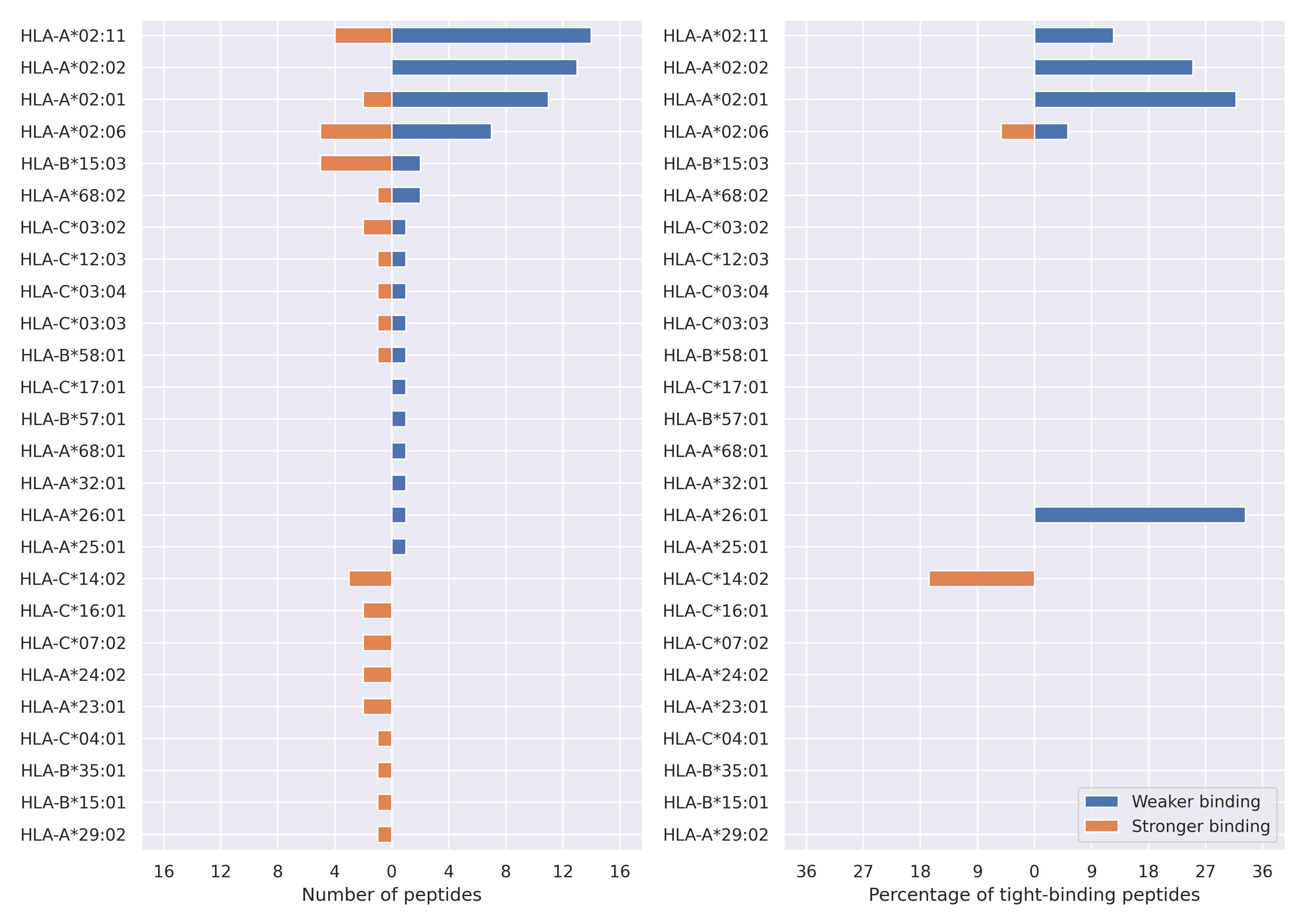

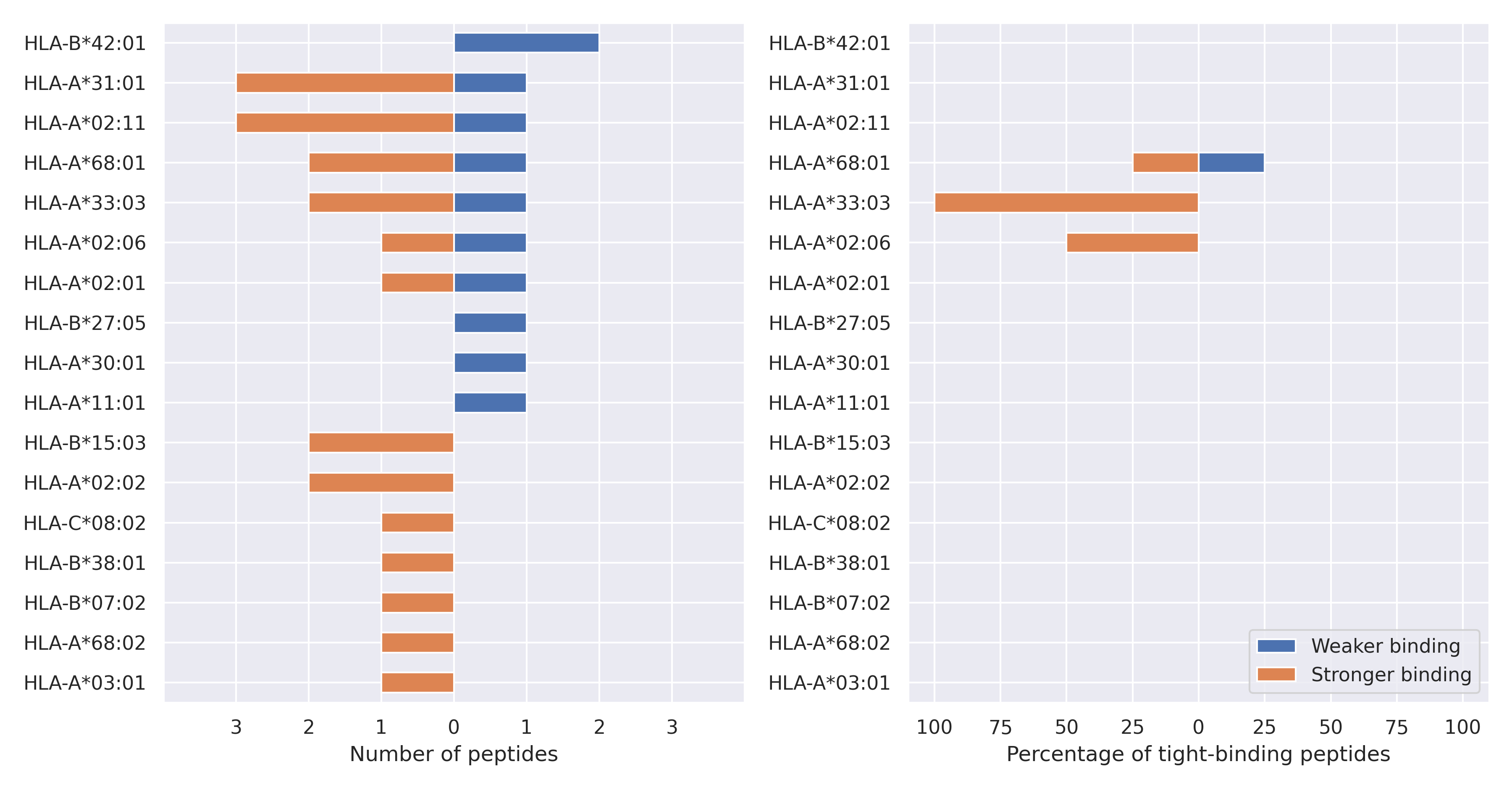

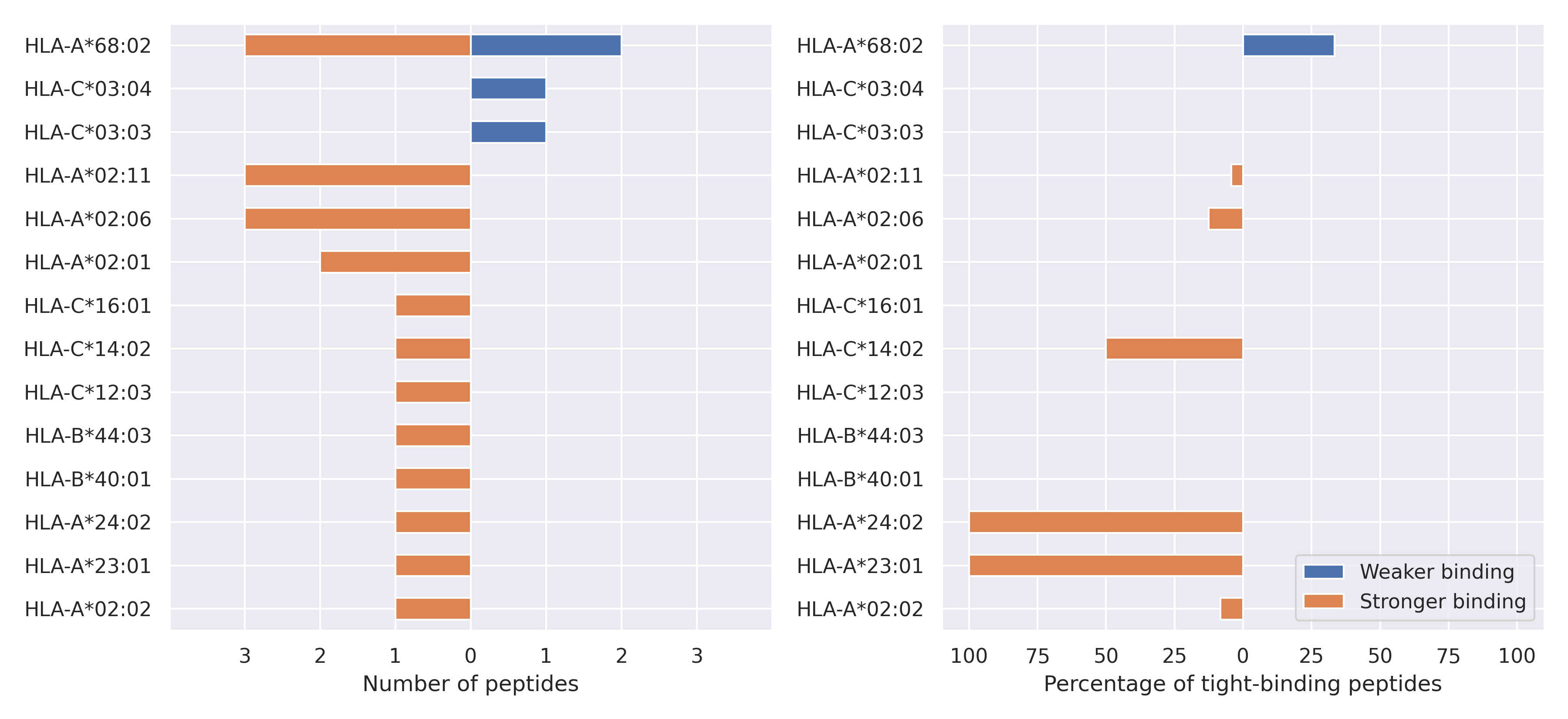

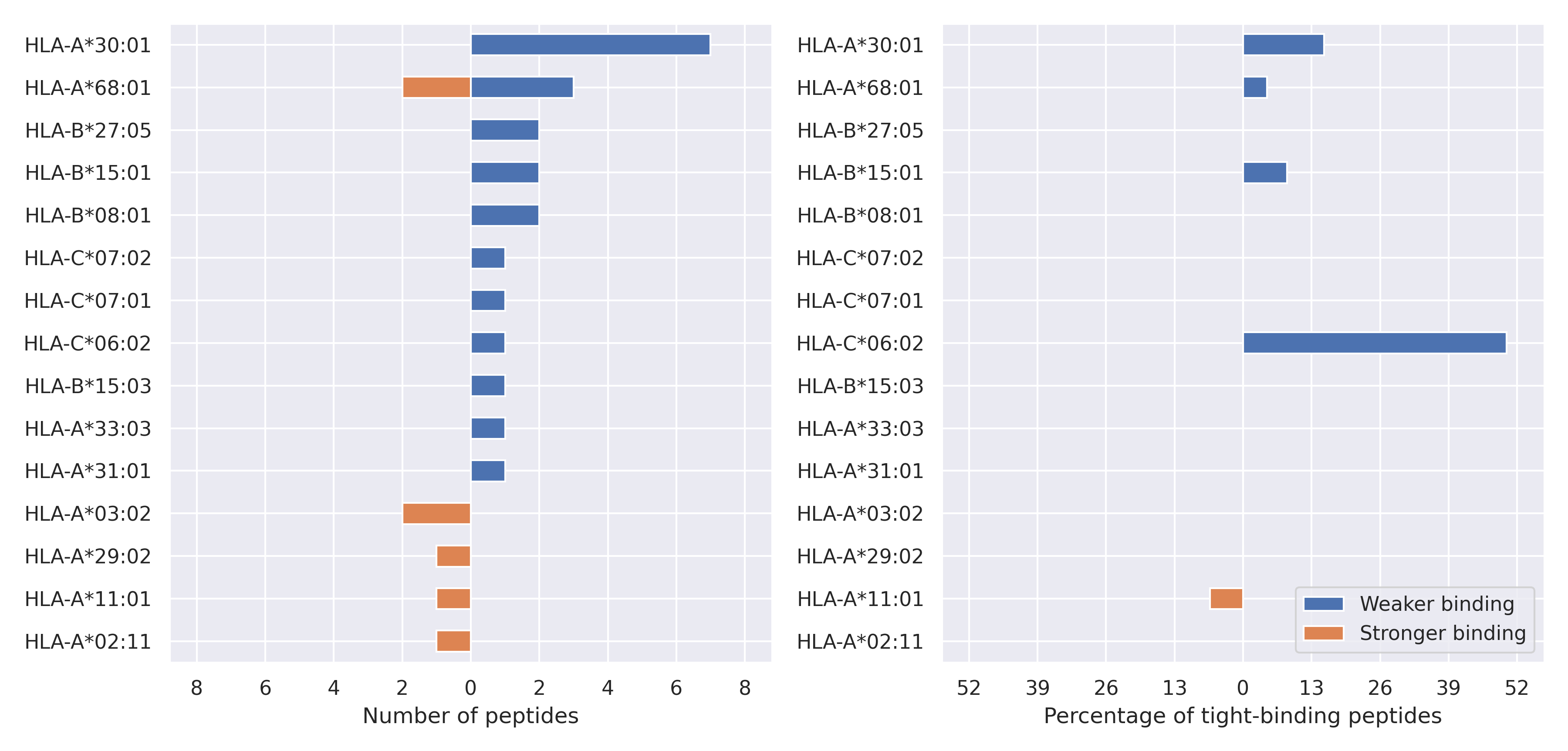

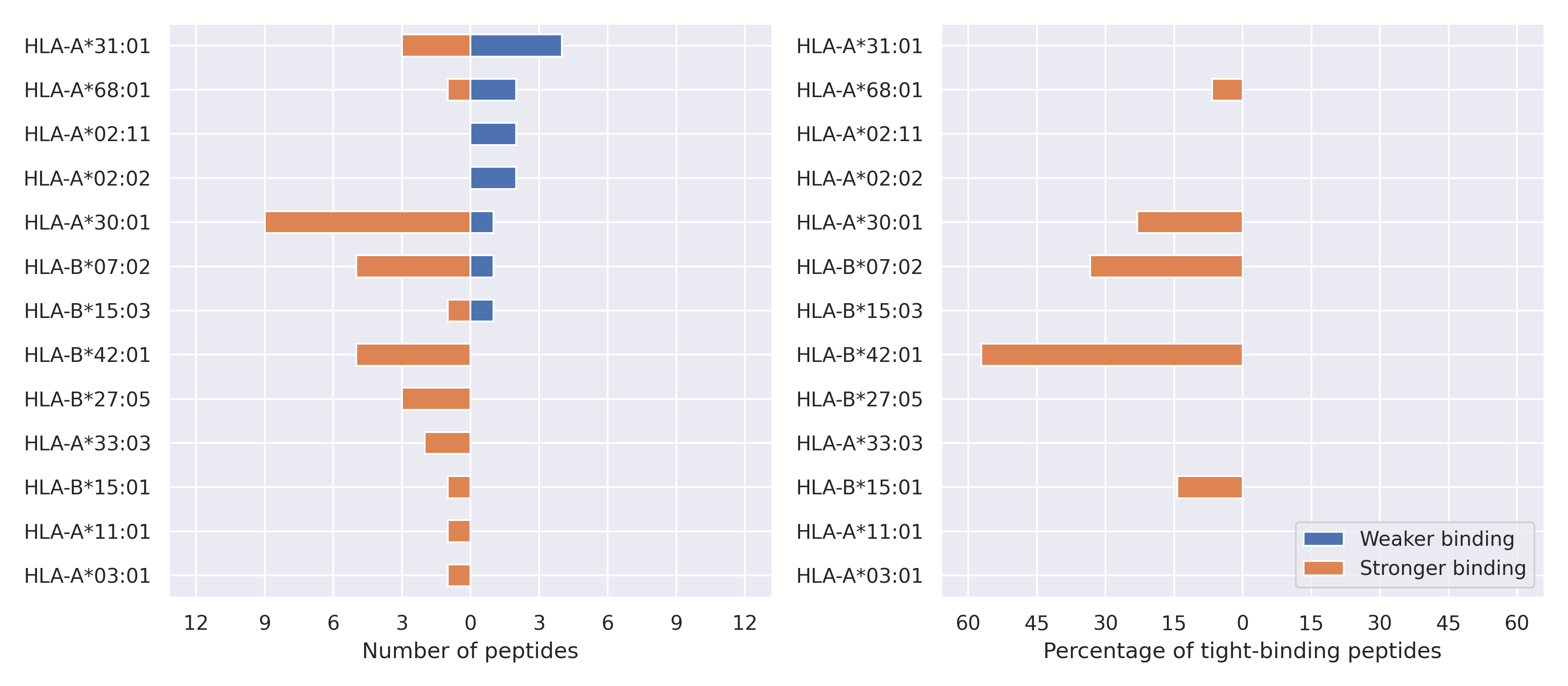

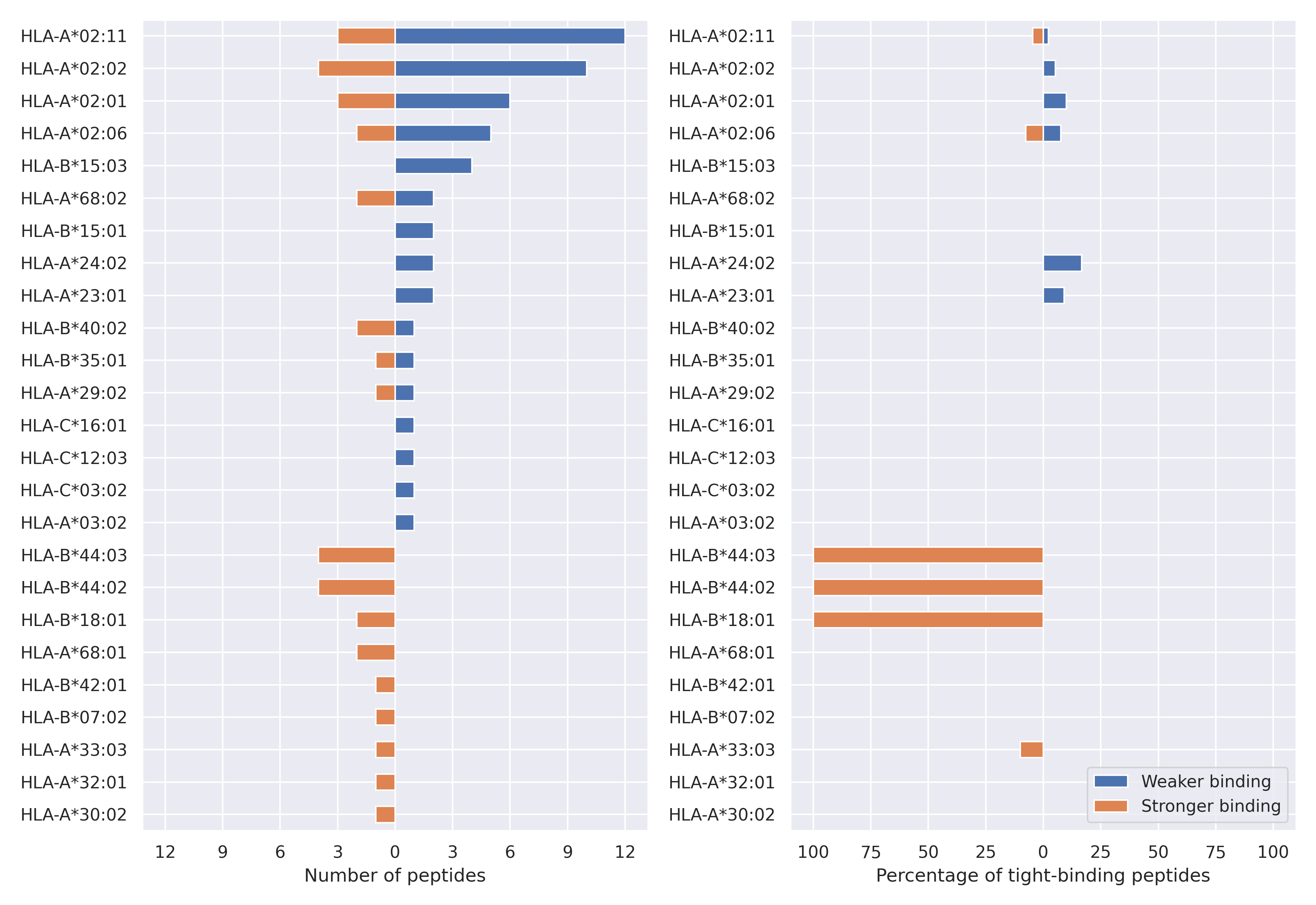

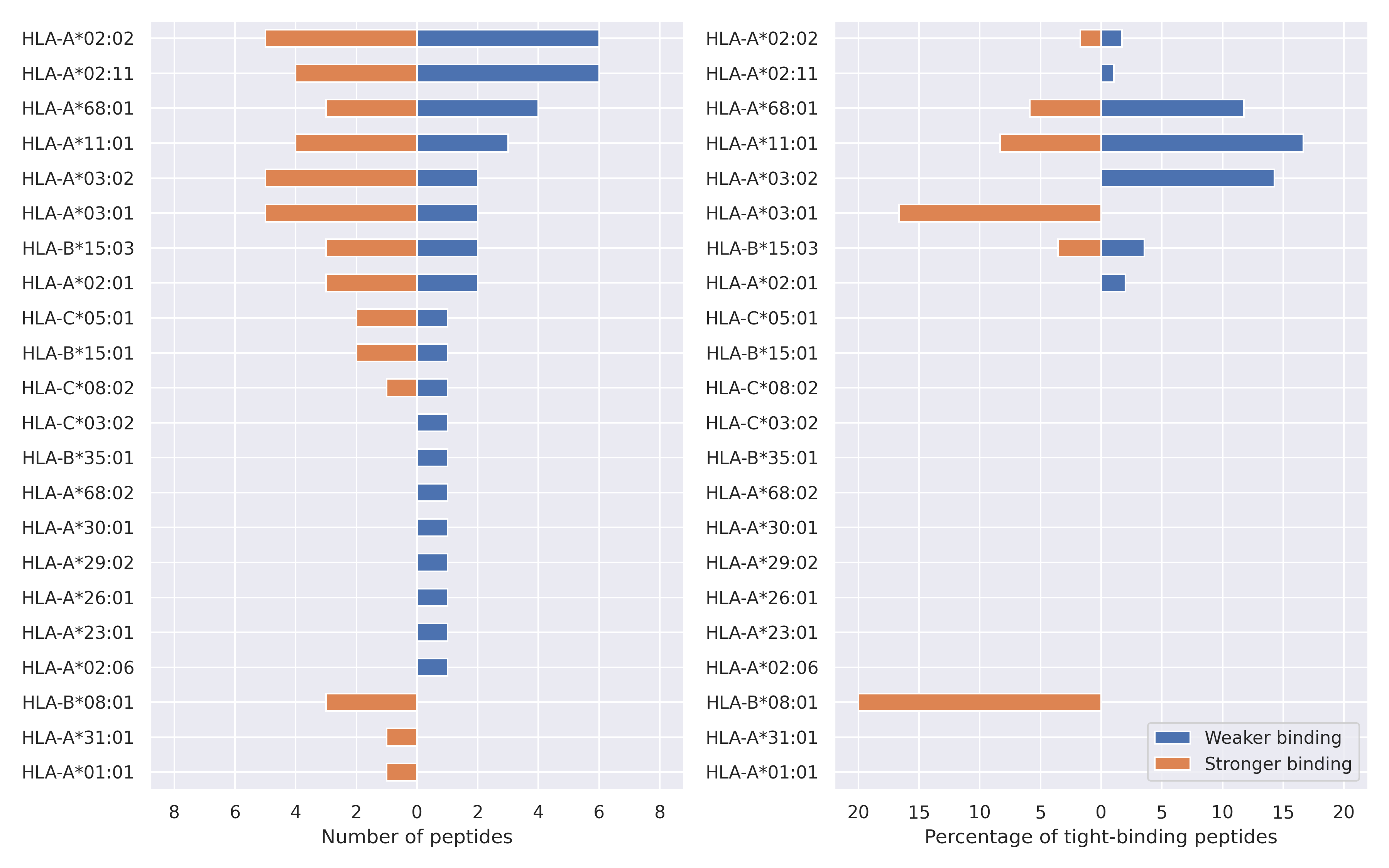

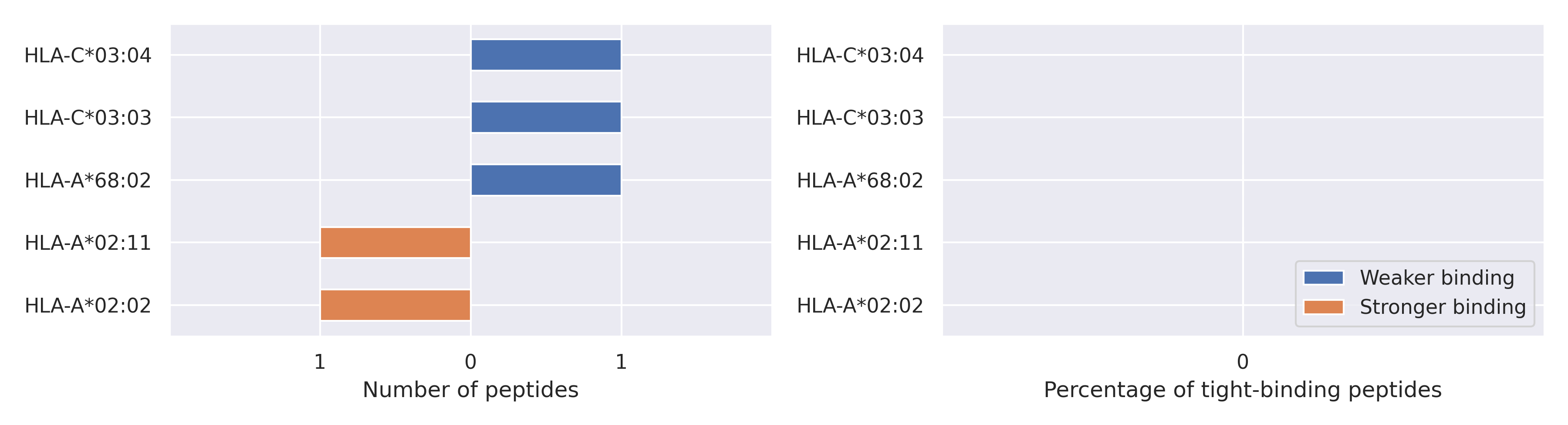

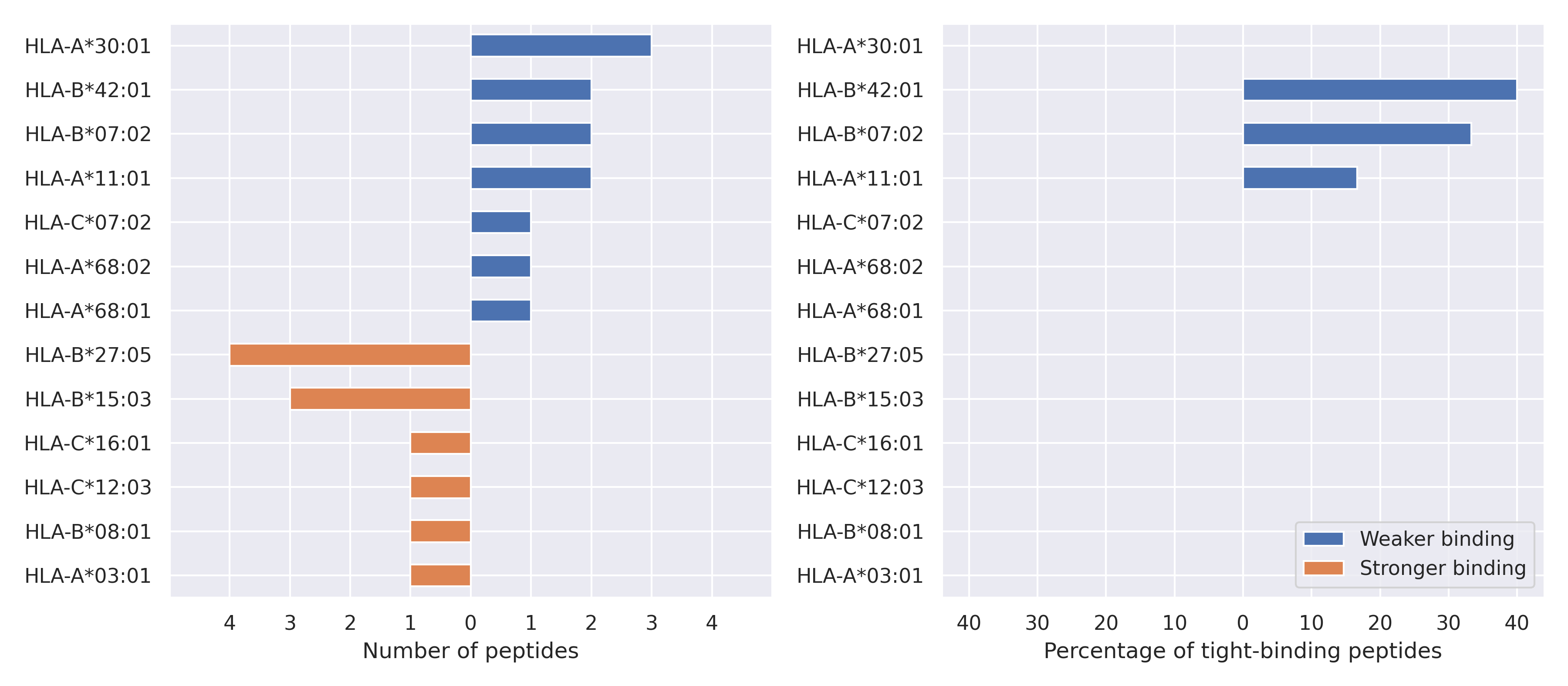

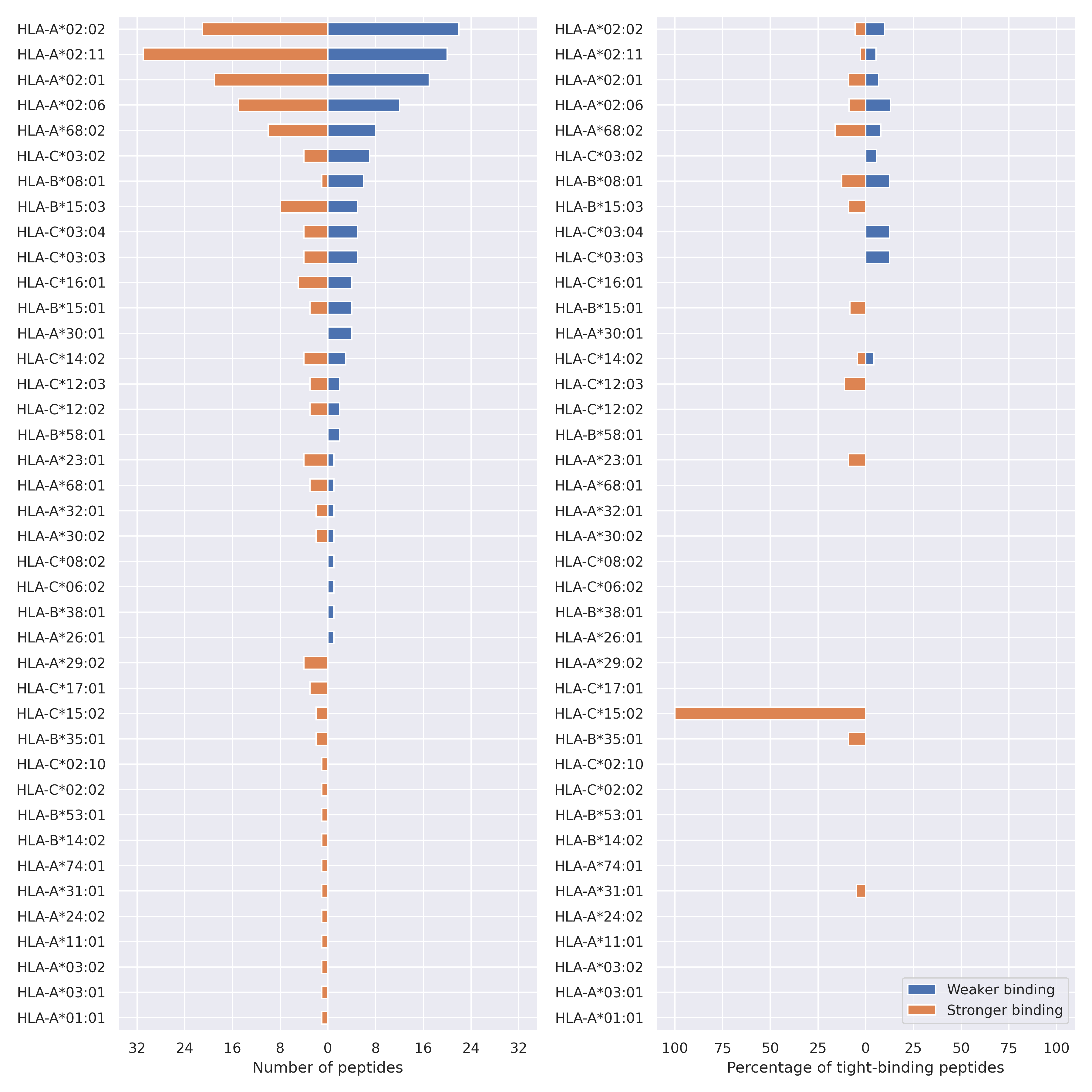

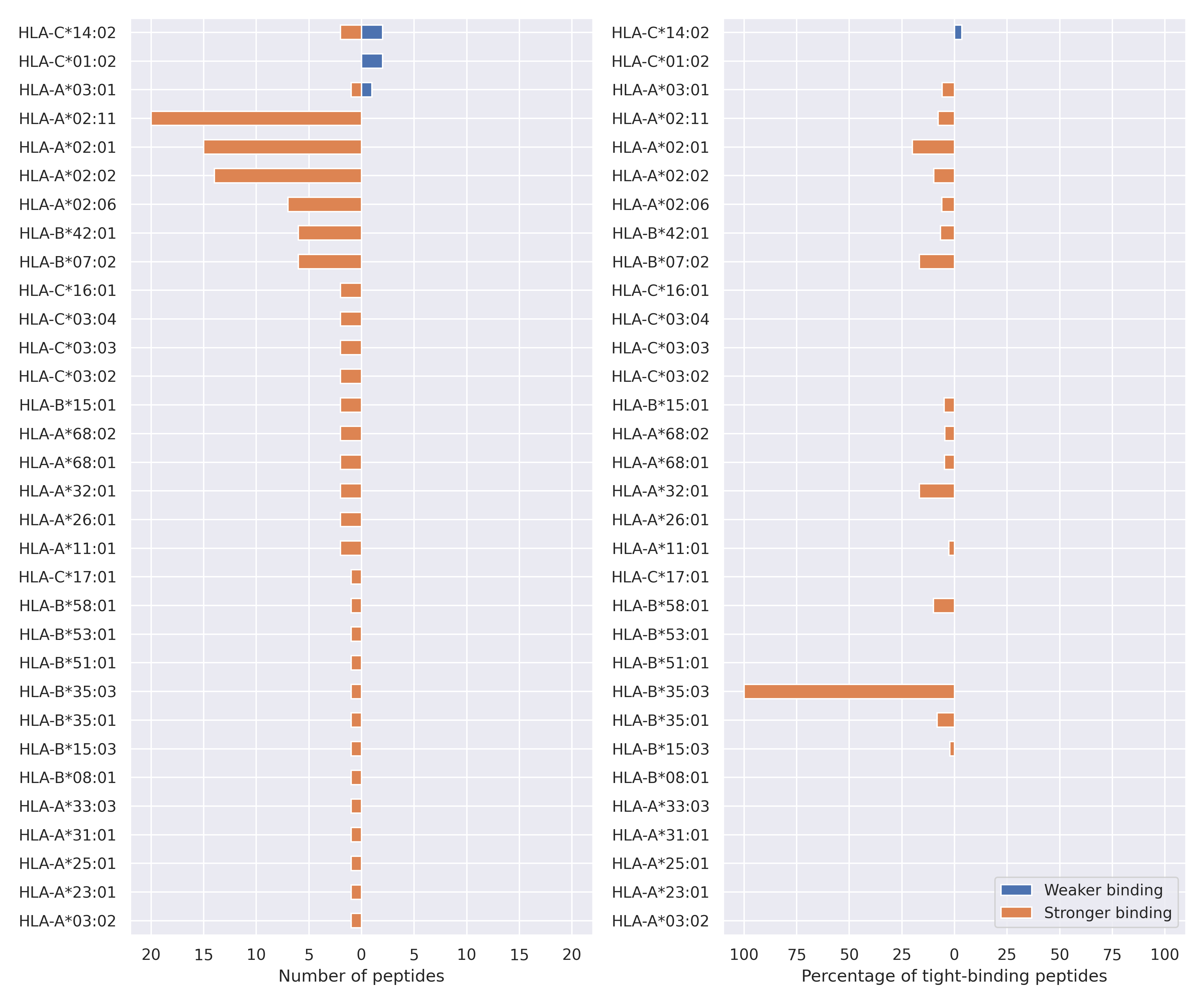

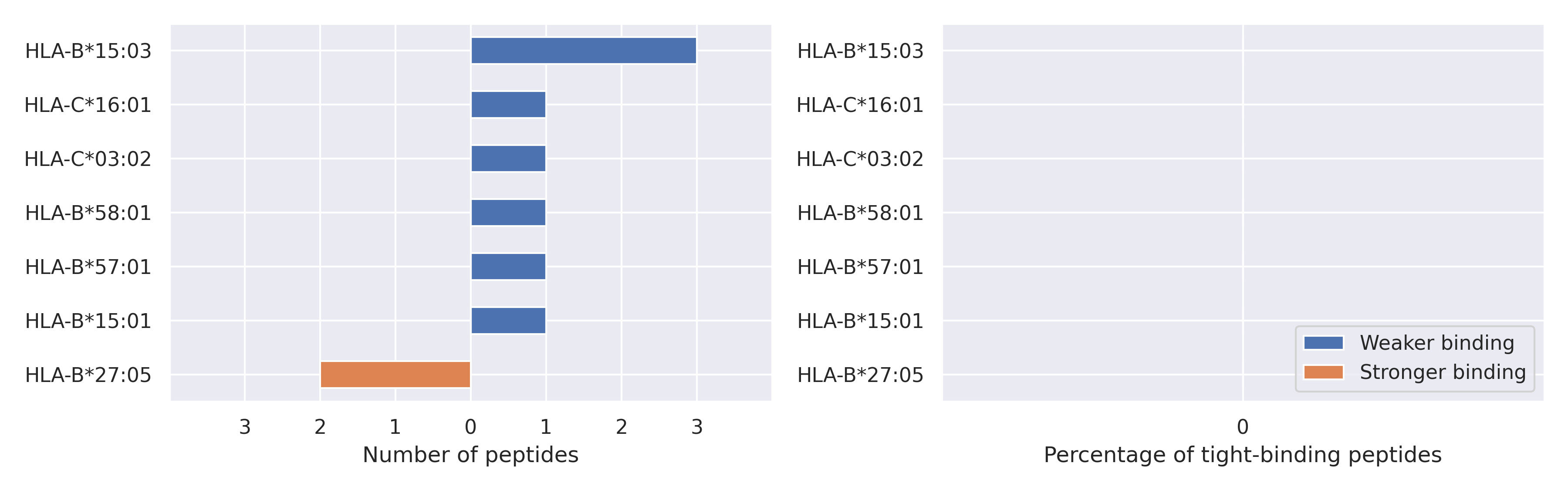

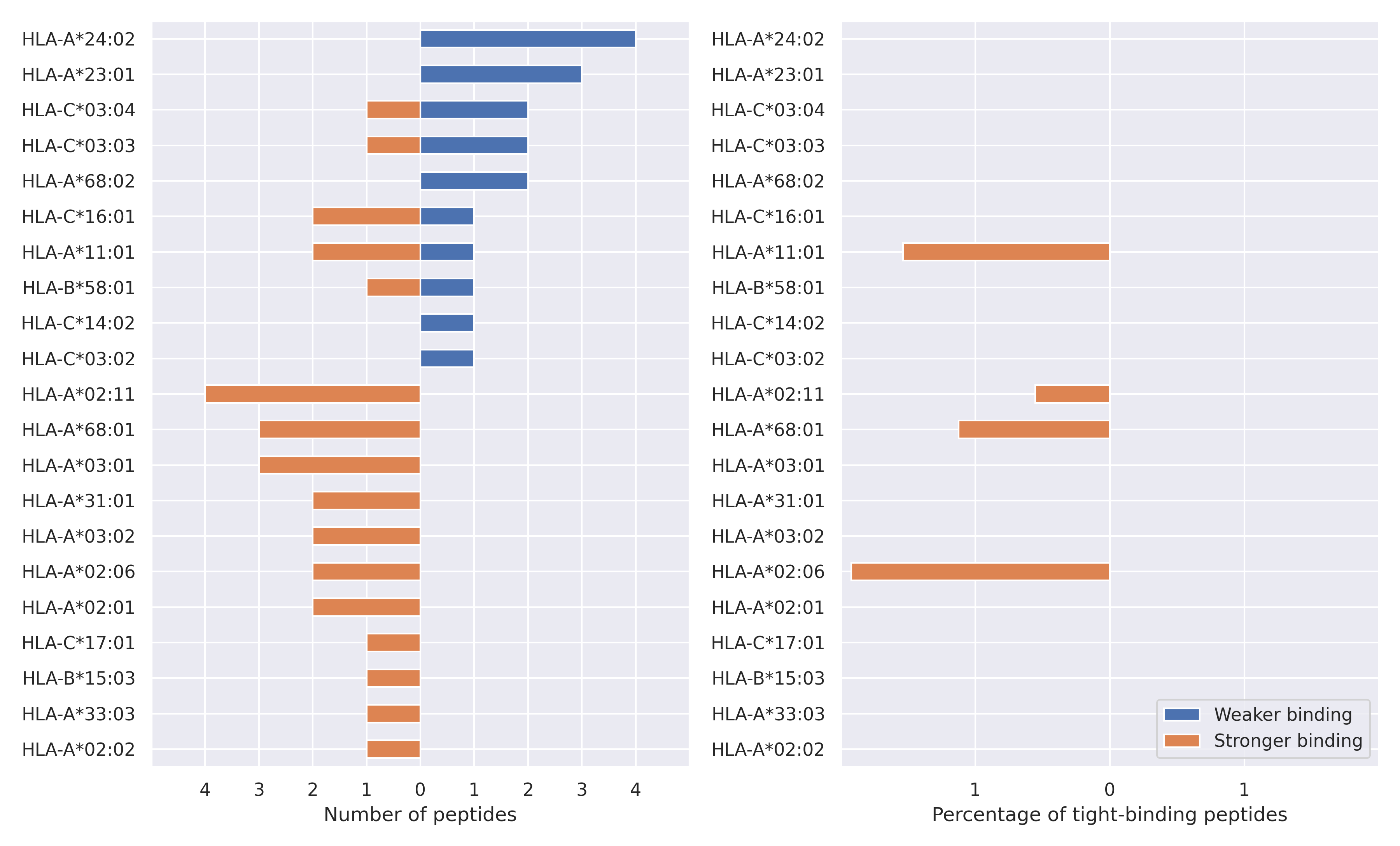

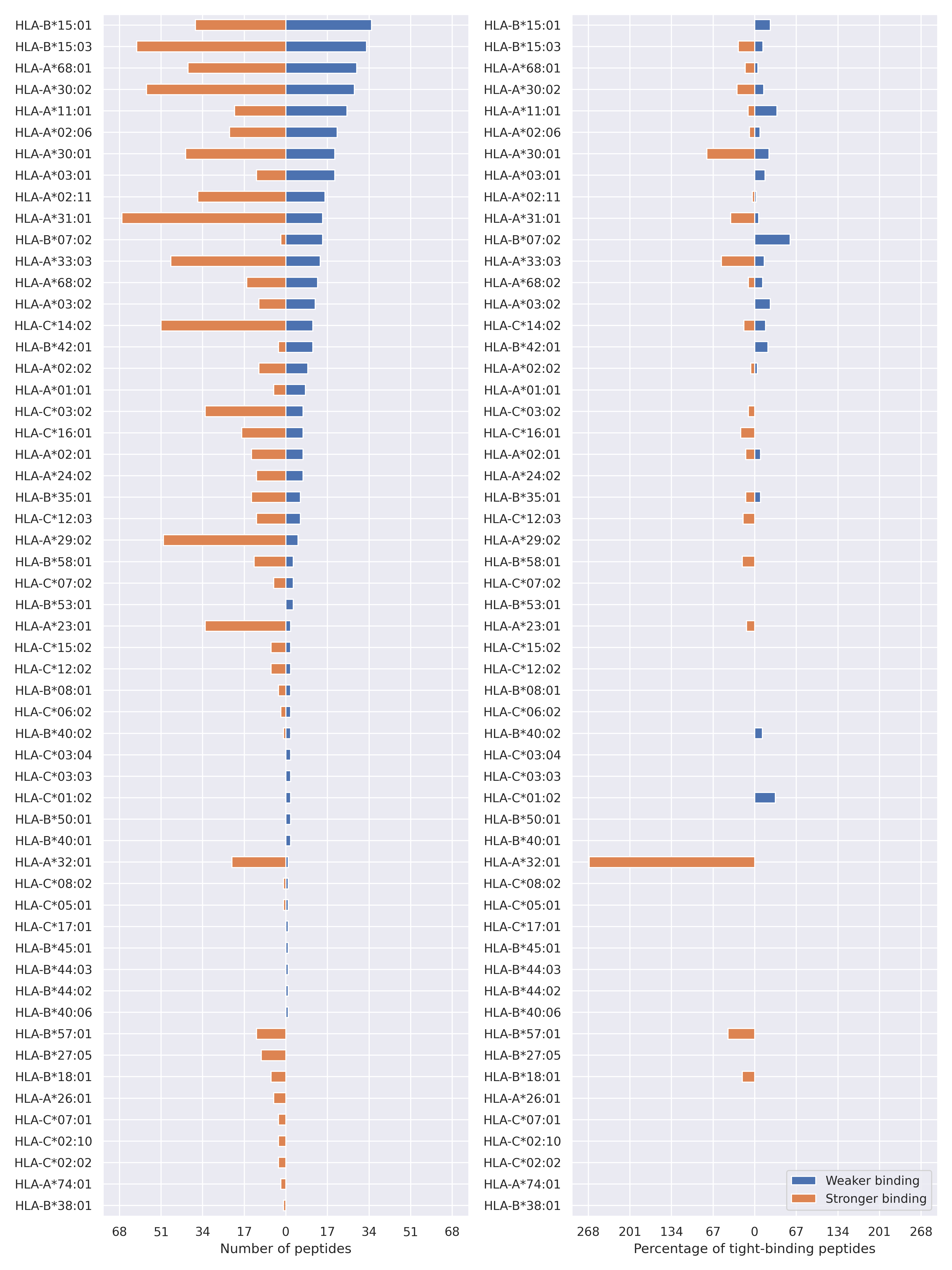

For each allele we calculated the number of peptides with increased and decreased affinitiy (two or more times). The absolute number of such peptides is showed on the left side of the figure (blue bars — weaker binding, orange bars — stronger).
While absolute numbers are of interest, they do not reflect the initial number of tighly binding peptides for the specific allele. Roughly speaking, if an allele had high number of tight binders, then vanished affinity of several peptides will not affect much the integral ability of peptide presentation. To the contrary, low number of vanished peptides could be important if the particular allele initially had narrow epitope repertoire. To account for this effect, we normalized the absolute numbers of new/vanished tight binders (IC50 affinity ≤ 50 nM) by the total number of tight binders for each allele. To avoid possible divisions by zero, we used + 1 regularization term in all denominators. For example, if some allele had no tight binders in the reference genome, and three new tight binders appeared as a result of the mutation, the relative increase will be 300%. The results are showed in the right part of the figure. Protein-specific plots are listed below.
Reference MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFR
|||||||||||||||||| |||||||||||||||||||||||||
Mutated MFVFLVLLPLVSSQCVNLITRTQ‑‑‑SYTNSFTRGVYYPDKVFR
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*30:01 | TTRTQLPPA | ITRTQS | 9 | - |
HLA-B*15:03 | SQCVNLTTRTQLPPAY | SQCVNLITRTQSY | - | 69 |
HLA-A*30:01 | LTTRTQLPPA | LITRTQS | 82 | - |
HLA-B*15:01 | SQCVNLTTRTQLPPAY | SQCVNLITRTQSY | - | 99 |
HLA-A*31:01 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 137 |
HLA-A*68:01 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 153 |
HLA-A*30:01 | TTRTQLPPAY | ITRTQSY | 263 | - |
HLA-A*30:02 | TTRTQLPPAY | ITRTQSY | 288 | - |
HLA-A*33:03 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 483 |
HLA-A*68:01 | LTTRTQLPPAYTNSFTR | LITRTQSYTNSFTR | - | 500 |
HLA-B*15:01 | VNLTTRTQLPPAY | VNLITRTQSY | 13158 | 64 |
HLA-B*15:03 | NLTTRTQLPPAY | NLITRTQSY | 6010 | 51 |
HLA-C*03:02 | NLTTRTQLPPAY | NLITRTQSY | 19101 | 246 |
HLA-B*15:01 | NLTTRTQLPPAY | NLITRTQSY | 7078 | 94 |
HLA-C*14:02 | NLTTRTQLPPAY | NLITRTQSY | 12990 | 212 |
HLA-A*26:01 | NLTTRTQLPPAY | NLITRTQSY | 19363 | 395 |
HLA-B*35:01 | NLTTRTQLPPAY | NLITRTQSY | 16454 | 368 |
HLA-A*30:01 | VNLTTRTQLPPA | VNLITRTQS | 254 | 8503 |
HLA-B*57:01 | TTRTQLPPAYTNSF | ITRTQSYTNSF | 12200 | 451 |
HLA-B*58:01 | VSSQCVNLT | VSSQCVNLI | 3986 | 159 |
HLA-C*15:02 | VSSQCVNLT | VSSQCVNLI | 10208 | 479 |
HLA-A*29:02 | NLTTRTQLPPAY | NLITRTQSY | 3733 | 191 |
HLA-B*15:03 | VNLTTRTQLPPAY | VNLITRTQSY | 3506 | 182 |
HLA-A*02:02 | LVSSQCVNLT | LVSSQCVNLI | 3376 | 271 |
HLA-A*02:11 | VLLPLVSSQCVNLT | VLLPLVSSQCVNLI | 4460 | 394 |
HLA-A*30:01 | TTRTQLPPAYTN | ITRTQSYTN | 4274 | 435 |
HLA-B*15:01 | CVNLTTRTQLPPAY | CVNLITRTQSY | 4088 | 431 |
HLA-A*30:01 | TTRTQLPPAYTNS | ITRTQSYTNS | 2190 | 280 |
HLA-A*30:02 | VNLTTRTQLPPAY | VNLITRTQSY | 2263 | 499 |
Reference MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHST
||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated MFVFLVLLPLVSSQCVNLITRTQ‑‑‑SYTNSFTRGVYYPDKVFRSSVLHST
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*30:01 | TTRTQLPPA | ITRTQS | 9 | - |
HLA-B*35:01 | LPPAYTNSF | SYTNSF | 43 | - |
HLA-A*30:02 | RTQLPPAYTNSFTRGVY | RTQSYTNSFTRGVY | - | 57 |
HLA-B*42:01 | LPPAYTNSF | SYTNSF | 65 | - |
HLA-B*15:03 | SQCVNLTTRTQLPPAY | SQCVNLITRTQSY | - | 69 |
HLA-A*30:02 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 76 |
HLA-A*30:01 | LTTRTQLPPA | LITRTQS | 82 | - |
HLA-A*31:01 | TRTQLPPAYTNSFTR | TRTQSYTNSFTR | - | 93 |
HLA-B*15:01 | SQCVNLTTRTQLPPAY | SQCVNLITRTQSY | - | 99 |
HLA-A*68:01 | TRTQLPPAYTNSFTR | TRTQSYTNSFTR | - | 104 |
HLA-B*15:03 | TQLPPAYTNSFTRGVY | TQSYTNSFTRGVY | - | 118 |
HLA-B*15:01 | TQLPPAYTNSFTRGVY | TQSYTNSFTRGVY | - | 120 |
HLA-A*30:02 | QLPPAYTNSFTRGVYY | QSYTNSFTRGVYY | - | 131 |
HLA-A*31:01 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 137 |
HLA-A*29:02 | QLPPAYTNSFTRGVYY | QSYTNSFTRGVYY | - | 139 |
HLA-A*30:01 | RTQLPPAYT | RTQSYT | 148 | - |
HLA-A*68:01 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 153 |
HLA-B*15:03 | TRTQLPPAY | TRTQSY | 158 | - |
HLA-A*30:02 | TQLPPAYTNSFTRGVY | TQSYTNSFTRGVY | - | 180 |
HLA-B*15:03 | TQLPPAYTNSFTRGVYY | TQSYTNSFTRGVYY | - | 185 |
HLA-A*31:01 | RTQLPPAYTNSFTRG | RTQSYTNSFTRG | - | 256 |
HLA-A*30:01 | TTRTQLPPAY | ITRTQSY | 263 | - |
HLA-A*30:02 | TTRTQLPPAY | ITRTQSY | 288 | - |
HLA-B*07:02 | LPPAYTNSF | SYTNSF | 293 | - |
HLA-B*15:01 | QLPPAYTNSF | QSYTNSF | 300 | - |
HLA-A*30:02 | TQLPPAYTNSFTRGVYY | TQSYTNSFTRGVYY | - | 308 |
HLA-B*15:01 | TQLPPAYTNSFTRGVYY | TQSYTNSFTRGVYY | - | 333 |
HLA-B*15:03 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 339 |
HLA-C*07:02 | TRTQLPPAY | TRTQSY | 348 | - |
HLA-B*53:01 | LPPAYTNSF | SYTNSF | 366 | - |
HLA-A*30:02 | RTQLPPAY | RTQSY | 425 | - |
HLA-B*27:05 | TRTQLPPAYTNSFTR | TRTQSYTNSFTR | - | 448 |
HLA-B*15:01 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 449 |
HLA-A*29:02 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 478 |
HLA-A*33:03 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 483 |
HLA-A*68:01 | LTTRTQLPPAYTNSFTR | LITRTQSYTNSFTR | - | 500 |
HLA-B*15:01 | VNLTTRTQLPPAY | VNLITRTQSY | 13158 | 64 |
HLA-B*15:03 | NLTTRTQLPPAY | NLITRTQSY | 6010 | 51 |
HLA-C*14:02 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 14144 | 145 |
HLA-A*68:02 | PPAYTNSFTRGV | SYTNSFTRGV | 10453 | 114 |
HLA-C*14:02 | PPAYTNSFTRGVY | SYTNSFTRGVY | 12408 | 145 |
HLA-C*03:02 | NLTTRTQLPPAY | NLITRTQSY | 19101 | 246 |
HLA-C*16:01 | RTQLPPAYTNSF | RTQSYTNSF | 2820 | 37 |
HLA-C*03:02 | RTQLPPAYTNSF | RTQSYTNSF | 4604 | 61 |
HLA-B*15:01 | NLTTRTQLPPAY | NLITRTQSY | 7078 | 94 |
HLA-A*11:01 | QLPPAYTNSFTR | QSYTNSFTR | 3359 | 49 |
HLA-C*14:02 | LPPAYTNSFTRGVY | SYTNSFTRGVY | 9125 | 145 |
HLA-C*14:02 | NLTTRTQLPPAY | NLITRTQSY | 12990 | 212 |
HLA-A*68:02 | PAYTNSFTRGV | SYTNSFTRGV | 6906 | 114 |
HLA-A*32:01 | RTQLPPAYTNSF | RTQSYTNSF | 472 | 9 |
HLA-A*26:01 | NLTTRTQLPPAY | NLITRTQSY | 19363 | 395 |
HLA-C*14:02 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 6618 | 145 |
HLA-B*35:01 | NLTTRTQLPPAY | NLITRTQSY | 16454 | 368 |
HLA-C*14:02 | PAYTNSFTRGVY | SYTNSFTRGVY | 6173 | 145 |
HLA-A*29:02 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 4374 | 120 |
HLA-A*30:01 | VNLTTRTQLPPA | VNLITRTQS | 254 | 8503 |
HLA-A*68:02 | LPPAYTNSFTRGV | SYTNSFTRGV | 3330 | 114 |
HLA-B*15:03 | RTQLPPAYTNSF | RTQSYTNSF | 425 | 15 |
HLA-B*57:01 | TTRTQLPPAYTNSF | ITRTQSYTNSF | 12200 | 451 |
HLA-A*11:01 | TQLPPAYTNSFTR | TQSYTNSFTR | 2926 | 119 |
HLA-A*31:01 | QLPPAYTNSFTR | QSYTNSFTR | 515 | 24 |
HLA-A*29:02 | NLTTRTQLPPAY | NLITRTQSY | 3733 | 191 |
HLA-B*15:03 | VNLTTRTQLPPAY | VNLITRTQSY | 3506 | 182 |
HLA-C*14:02 | RTQLPPAYTNSF | RTQSYTNSF | 3326 | 184 |
HLA-A*30:02 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 3543 | 197 |
HLA-B*15:01 | RTQLPPAYTNSF | RTQSYTNSF | 975 | 55 |
HLA-A*30:02 | LPPAYTNSFTRGVY | SYTNSFTRGVY | 2376 | 157 |
HLA-A*30:01 | RTQLPPAYTNSF | RTQSYTNSF | 3577 | 243 |
HLA-A*68:01 | PAYTNSFTR | SYTNSFTR | 165 | 2401 |
HLA-A*68:01 | QLPPAYTNSFTR | QSYTNSFTR | 151 | 11 |
HLA-A*30:02 | PPAYTNSFTRGVY | SYTNSFTRGVY | 1913 | 157 |
HLA-A*30:02 | RTQLPPAYTNSF | RTQSYTNSF | 1808 | 163 |
HLA-A*30:01 | RTQLPPAYTNSFT | RTQSYTNSFT | 3299 | 301 |
HLA-B*58:01 | RTQLPPAYTNSF | RTQSYTNSF | 1040 | 101 |
HLA-A*33:03 | QLPPAYTNSFTR | QSYTNSFTR | 547 | 55 |
HLA-A*30:01 | TTRTQLPPAYTN | ITRTQSYTN | 4274 | 435 |
HLA-B*15:01 | CVNLTTRTQLPPAY | CVNLITRTQSY | 4088 | 431 |
HLA-A*01:01 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 3112 | 351 |
HLA-A*68:01 | LPPAYTNSFTR | SYTNSFTR | 284 | 2401 |
HLA-A*24:02 | RTQLPPAYTNSF | RTQSYTNSF | 2532 | 307 |
HLA-A*30:01 | TTRTQLPPAYTNS | ITRTQSYTNS | 2190 | 280 |
HLA-A*29:02 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 925 | 120 |
HLA-B*15:03 | TRTQLPPAYTNSF | TRTQSYTNSF | 1884 | 251 |
HLA-A*23:01 | RTQLPPAYTNSF | RTQSYTNSF | 2381 | 372 |
HLA-A*31:01 | TQLPPAYTNSFTR | TQSYTNSFTR | 728 | 117 |
HLA-A*03:02 | QLPPAYTNSFTR | QSYTNSFTR | 1446 | 252 |
HLA-B*57:01 | RTQLPPAYTNSF | RTQSYTNSF | 1080 | 190 |
HLA-A*30:02 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 1100 | 197 |
HLA-A*11:01 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 559 | 107 |
HLA-A*74:01 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 1362 | 280 |
HLA-A*30:02 | VNLTTRTQLPPAY | VNLITRTQSY | 2263 | 499 |
HLA-A*68:01 | TQLPPAYTNSFTR | TQSYTNSFTR | 94 | 21 |
HLA-B*15:01 | TQLPPAYTNSF | TQSYTNSF | 184 | 772 |
HLA-A*03:02 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 880 | 214 |
HLA-A*30:02 | PAYTNSFTRGVY | SYTNSFTRGVY | 616 | 157 |
HLA-A*31:01 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 46 | 13 |
HLA-A*33:03 | TQLPPAYTNSFTR | TQSYTNSFTR | 730 | 209 |
HLA-A*01:01 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 1115 | 351 |
Reference FVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQ
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated FVFLVLLPLVSSQCVNLITRTQ‑‑‑SYTNSFTRGVYYPDKVFRSSVLHSTQ
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*30:01 | TTRTQLPPA | ITRTQS | 9 | - |
HLA-B*35:01 | LPPAYTNSF | SYTNSF | 43 | - |
HLA-A*30:02 | RTQLPPAYTNSFTRGVY | RTQSYTNSFTRGVY | - | 57 |
HLA-B*42:01 | LPPAYTNSF | SYTNSF | 65 | - |
HLA-B*15:03 | SQCVNLTTRTQLPPAY | SQCVNLITRTQSY | - | 69 |
HLA-A*30:02 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 76 |
HLA-A*30:01 | LTTRTQLPPA | LITRTQS | 82 | - |
HLA-A*31:01 | TRTQLPPAYTNSFTR | TRTQSYTNSFTR | - | 93 |
HLA-B*15:01 | SQCVNLTTRTQLPPAY | SQCVNLITRTQSY | - | 99 |
HLA-A*68:01 | TRTQLPPAYTNSFTR | TRTQSYTNSFTR | - | 104 |
HLA-B*15:03 | TQLPPAYTNSFTRGVY | TQSYTNSFTRGVY | - | 118 |
HLA-B*15:01 | TQLPPAYTNSFTRGVY | TQSYTNSFTRGVY | - | 120 |
HLA-A*30:02 | QLPPAYTNSFTRGVYY | QSYTNSFTRGVYY | - | 131 |
HLA-A*31:01 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 137 |
HLA-A*29:02 | QLPPAYTNSFTRGVYY | QSYTNSFTRGVYY | - | 139 |
HLA-A*30:01 | RTQLPPAYT | RTQSYT | 148 | - |
HLA-A*68:01 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 153 |
HLA-B*15:03 | TRTQLPPAY | TRTQSY | 158 | - |
HLA-A*30:02 | TQLPPAYTNSFTRGVY | TQSYTNSFTRGVY | - | 180 |
HLA-B*15:03 | TQLPPAYTNSFTRGVYY | TQSYTNSFTRGVYY | - | 185 |
HLA-A*31:01 | RTQLPPAYTNSFTRG | RTQSYTNSFTRG | - | 256 |
HLA-A*30:01 | TTRTQLPPAY | ITRTQSY | 263 | - |
HLA-A*30:02 | TTRTQLPPAY | ITRTQSY | 288 | - |
HLA-B*07:02 | LPPAYTNSF | SYTNSF | 293 | - |
HLA-B*15:01 | QLPPAYTNSF | QSYTNSF | 300 | - |
HLA-A*30:02 | TQLPPAYTNSFTRGVYY | TQSYTNSFTRGVYY | - | 308 |
HLA-B*15:01 | TQLPPAYTNSFTRGVYY | TQSYTNSFTRGVYY | - | 333 |
HLA-B*15:03 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 339 |
HLA-C*07:02 | TRTQLPPAY | TRTQSY | 348 | - |
HLA-B*53:01 | LPPAYTNSF | SYTNSF | 366 | - |
HLA-A*30:02 | RTQLPPAY | RTQSY | 425 | - |
HLA-B*27:05 | TRTQLPPAYTNSFTR | TRTQSYTNSFTR | - | 448 |
HLA-B*15:01 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 449 |
HLA-A*29:02 | QLPPAYTNSFTRGVY | QSYTNSFTRGVY | - | 478 |
HLA-A*33:03 | TTRTQLPPAYTNSFTR | ITRTQSYTNSFTR | - | 483 |
HLA-A*68:01 | LTTRTQLPPAYTNSFTR | LITRTQSYTNSFTR | - | 500 |
HLA-B*15:01 | VNLTTRTQLPPAY | VNLITRTQSY | 13158 | 64 |
HLA-B*15:03 | NLTTRTQLPPAY | NLITRTQSY | 6010 | 51 |
HLA-C*14:02 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 14144 | 145 |
HLA-A*68:02 | PPAYTNSFTRGV | SYTNSFTRGV | 10453 | 114 |
HLA-C*14:02 | PPAYTNSFTRGVY | SYTNSFTRGVY | 12408 | 145 |
HLA-C*03:02 | NLTTRTQLPPAY | NLITRTQSY | 19101 | 246 |
HLA-C*16:01 | RTQLPPAYTNSF | RTQSYTNSF | 2820 | 37 |
HLA-C*03:02 | RTQLPPAYTNSF | RTQSYTNSF | 4604 | 61 |
HLA-B*15:01 | NLTTRTQLPPAY | NLITRTQSY | 7078 | 94 |
HLA-A*11:01 | QLPPAYTNSFTR | QSYTNSFTR | 3359 | 49 |
HLA-C*14:02 | LPPAYTNSFTRGVY | SYTNSFTRGVY | 9125 | 145 |
HLA-C*14:02 | NLTTRTQLPPAY | NLITRTQSY | 12990 | 212 |
HLA-A*68:02 | PAYTNSFTRGV | SYTNSFTRGV | 6906 | 114 |
HLA-A*32:01 | RTQLPPAYTNSF | RTQSYTNSF | 472 | 9 |
HLA-A*26:01 | NLTTRTQLPPAY | NLITRTQSY | 19363 | 395 |
HLA-C*14:02 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 6618 | 145 |
HLA-B*35:01 | NLTTRTQLPPAY | NLITRTQSY | 16454 | 368 |
HLA-C*14:02 | PAYTNSFTRGVY | SYTNSFTRGVY | 6173 | 145 |
HLA-A*29:02 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 4374 | 120 |
HLA-A*30:01 | VNLTTRTQLPPA | VNLITRTQS | 254 | 8503 |
HLA-A*68:02 | LPPAYTNSFTRGV | SYTNSFTRGV | 3330 | 114 |
HLA-B*15:03 | RTQLPPAYTNSF | RTQSYTNSF | 425 | 15 |
HLA-B*57:01 | TTRTQLPPAYTNSF | ITRTQSYTNSF | 12200 | 451 |
HLA-A*11:01 | TQLPPAYTNSFTR | TQSYTNSFTR | 2926 | 119 |
HLA-A*31:01 | QLPPAYTNSFTR | QSYTNSFTR | 515 | 24 |
HLA-A*29:02 | NLTTRTQLPPAY | NLITRTQSY | 3733 | 191 |
HLA-B*15:03 | VNLTTRTQLPPAY | VNLITRTQSY | 3506 | 182 |
HLA-C*14:02 | RTQLPPAYTNSF | RTQSYTNSF | 3326 | 184 |
HLA-A*30:02 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 3543 | 197 |
HLA-B*15:01 | RTQLPPAYTNSF | RTQSYTNSF | 975 | 55 |
HLA-A*30:02 | LPPAYTNSFTRGVY | SYTNSFTRGVY | 2376 | 157 |
HLA-A*30:01 | RTQLPPAYTNSF | RTQSYTNSF | 3577 | 243 |
HLA-A*68:01 | PAYTNSFTR | SYTNSFTR | 165 | 2401 |
HLA-A*68:01 | QLPPAYTNSFTR | QSYTNSFTR | 151 | 11 |
HLA-A*30:02 | PPAYTNSFTRGVY | SYTNSFTRGVY | 1913 | 157 |
HLA-A*30:02 | RTQLPPAYTNSF | RTQSYTNSF | 1808 | 163 |
HLA-A*30:01 | RTQLPPAYTNSFT | RTQSYTNSFT | 3299 | 301 |
HLA-B*58:01 | RTQLPPAYTNSF | RTQSYTNSF | 1040 | 101 |
HLA-A*33:03 | QLPPAYTNSFTR | QSYTNSFTR | 547 | 55 |
HLA-A*30:01 | TTRTQLPPAYTN | ITRTQSYTN | 4274 | 435 |
HLA-B*15:01 | CVNLTTRTQLPPAY | CVNLITRTQSY | 4088 | 431 |
HLA-A*01:01 | PPAYTNSFTRGVYY | SYTNSFTRGVYY | 3112 | 351 |
HLA-A*68:01 | LPPAYTNSFTR | SYTNSFTR | 284 | 2401 |
HLA-A*24:02 | RTQLPPAYTNSF | RTQSYTNSF | 2532 | 307 |
HLA-A*30:01 | TTRTQLPPAYTNS | ITRTQSYTNS | 2190 | 280 |
HLA-A*29:02 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 925 | 120 |
HLA-B*15:03 | TRTQLPPAYTNSF | TRTQSYTNSF | 1884 | 251 |
HLA-A*23:01 | RTQLPPAYTNSF | RTQSYTNSF | 2381 | 372 |
HLA-A*31:01 | TQLPPAYTNSFTR | TQSYTNSFTR | 728 | 117 |
HLA-A*03:02 | QLPPAYTNSFTR | QSYTNSFTR | 1446 | 252 |
HLA-B*57:01 | RTQLPPAYTNSF | RTQSYTNSF | 1080 | 190 |
HLA-A*30:02 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 1100 | 197 |
HLA-A*11:01 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 559 | 107 |
HLA-A*74:01 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 1362 | 280 |
HLA-A*30:02 | VNLTTRTQLPPAY | VNLITRTQSY | 2263 | 499 |
HLA-A*68:01 | TQLPPAYTNSFTR | TQSYTNSFTR | 94 | 21 |
HLA-B*15:01 | TQLPPAYTNSF | TQSYTNSF | 184 | 772 |
HLA-A*03:02 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 880 | 214 |
HLA-A*30:02 | PAYTNSFTRGVY | SYTNSFTRGVY | 616 | 157 |
HLA-A*31:01 | RTQLPPAYTNSFTR | RTQSYTNSFTR | 46 | 13 |
HLA-A*33:03 | TQLPPAYTNSFTR | TQSYTNSFTR | 730 | 209 |
HLA-A*01:01 | PAYTNSFTRGVYY | SYTNSFTRGVYY | 1115 | 351 |
HLA-A*68:02 | AYTNSFTRGV | SYTNSFTRGV | 350 | 114 |
HLA-C*14:02 | AYTNSFTRGVYY | SYTNSFTRGVYY | 444 | 145 |
HLA-C*14:02 | AYTNSFTRGVY | SYTNSFTRGVY | 431 | 145 |
Reference LLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCT
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated LLIVNNATNVVIKVCEFQFCNDPFLDVYYHKNNKSWMESEFRVYSSANNCT
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*03:01 | GVYYHKNNK | DVYYHKNNK | 27 | 2841 |
HLA-A*30:01 | GVYYHKNNK | DVYYHKNNK | 51 | 3035 |
HLA-A*11:01 | GVYYHKNNK | DVYYHKNNK | 51 | 1768 |
HLA-A*03:02 | GVYYHKNNK | DVYYHKNNK | 119 | 3887 |
HLA-A*31:01 | GVYYHKNNK | DVYYHKNNK | 375 | 5203 |
HLA-A*68:01 | GVYYHKNNK | DVYYHKNNK | 363 | 28 |
HLA-A*68:02 | FCNDPFLGV | FCNDPFLDV | 281 | 3555 |
HLA-A*33:03 | GVYYHKNNK | DVYYHKNNK | 3253 | 287 |
HLA-A*02:06 | FCNDPFLGV | FCNDPFLDV | 116 | 1132 |
HLA-A*02:11 | FCNDPFLGV | FCNDPFLDV | 87 | 751 |
HLA-A*02:06 | EFQFCNDPFLGV | EFQFCNDPFLDV | 87 | 554 |
HLA-A*30:02 | CNDPFLGVY | CNDPFLDVY | 310 | 1959 |
HLA-A*02:02 | FCNDPFLGV | FCNDPFLDV | 365 | 2187 |
HLA-A*02:06 | FQFCNDPFLGVY | FQFCNDPFLDVY | 135 | 784 |
HLA-A*30:02 | FCNDPFLGVY | FCNDPFLDVY | 408 | 1738 |
HLA-A*02:11 | EFQFCNDPFLGV | EFQFCNDPFLDV | 334 | 1214 |
HLA-A*02:02 | EFQFCNDPFLGV | EFQFCNDPFLDV | 477 | 1725 |
HLA-A*02:11 | FQFCNDPFLGVY | FQFCNDPFLDVY | 488 | 1737 |
HLA-A*02:06 | FQFCNDPFLGV | FQFCNDPFLDV | 7 | 21 |
HLA-A*02:11 | FQFCNDPFLGV | FQFCNDPFLDV | 17 | 49 |
HLA-A*02:01 | FQFCNDPFLGV | FQFCNDPFLDV | 39 | 111 |
HLA-A*30:02 | FQFCNDPFLGVY | FQFCNDPFLDVY | 336 | 923 |
HLA-A*02:02 | FQFCNDPFLGV | FQFCNDPFLDV | 45 | 122 |
HLA-B*15:01 | FQFCNDPFLGVY | FQFCNDPFLDVY | 28 | 56 |
Reference NLREFVFKNIDGYFKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRF
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated NLREFVFKNIDGYFKIYSKHTPINLGRDLPQGFSALEPLVDLPIGINITRF
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*68:02 | YSKHTPINLV | YSKHTPINLG | 199 | 16298 |
HLA-A*02:11 | KIYSKHTPINLV | KIYSKHTPINLG | 104 | 6984 |
HLA-B*15:01 | LVRDLPQGF | LGRDLPQGF | 160 | 2486 |
HLA-C*01:02 | VRDLPQGFSAL | GRDLPQGFSAL | 431 | 3580 |
HLA-C*03:02 | LVRDLPQGF | LGRDLPQGF | 259 | 1765 |
HLA-B*15:03 | LVRDLPQGF | LGRDLPQGF | 254 | 793 |
HLA-B*07:02 | HTPINLVRDL | HTPINLGRDL | 892 | 311 |
HLA-B*27:05 | VRDLPQGFSA | GRDLPQGFSA | 1057 | 375 |
HLA-A*68:01 | YSKHTPINLVR | YSKHTPINLGR | 362 | 130 |
HLA-B*07:02 | TPINLVRDL | TPINLGRDL | 213 | 81 |
HLA-A*68:01 | HTPINLVR | HTPINLGR | 480 | 202 |
HLA-A*33:03 | YSKHTPINLVR | YSKHTPINLGR | 762 | 337 |
Reference QTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVAD
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated QTSNFRVQPTESIVRFPNITNLCPFDEVFNATRFASVYAWNRKRISNCVAD
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*40:01 | GEVFNATRF | DEVFNATRF | 164 | 7112 |
HLA-B*18:01 | GEVFNATRFASVY | DEVFNATRFASVY | 2165 | 64 |
HLA-B*18:01 | GEVFNATRF | DEVFNATRF | 971 | 32 |
HLA-B*50:01 | GEVFNATRFA | DEVFNATRFA | 147 | 4233 |
HLA-B*40:02 | GEVFNATRF | DEVFNATRF | 283 | 7625 |
HLA-B*40:06 | GEVFNATRFA | DEVFNATRFA | 201 | 5089 |
HLA-B*15:03 | GEVFNATRF | DEVFNATRF | 359 | 4698 |
HLA-A*68:01 | FGEVFNATR | FDEVFNATR | 338 | 2409 |
HLA-B*45:01 | GEVFNATRFA | DEVFNATRFA | 116 | 688 |
HLA-B*44:02 | GEVFNATRF | DEVFNATRF | 158 | 889 |
HLA-B*44:03 | GEVFNATRF | DEVFNATRF | 136 | 673 |
HLA-B*15:01 | TNLCPFGEVF | TNLCPFDEVF | 368 | 1059 |
HLA-B*15:03 | TNLCPFGEVF | TNLCPFDEVF | 442 | 1176 |
HLA-B*15:03 | NLCPFGEVF | NLCPFDEVF | 130 | 341 |
HLA-A*68:02 | GEVFNATRFA | DEVFNATRFA | 879 | 342 |
HLA-B*15:01 | NLCPFGEVF | NLCPFDEVF | 315 | 773 |
Reference RFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated RFASVYAWNRKRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVY
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*32:01 | VLYNSASFS | VLYNFAPFF | 22186 | 33 |
HLA-A*23:01 | VLYNSASFS | VLYNFAPFF | 32767 | 84 |
HLA-B*15:03 | VLYNSASFS | VLYNFAPFF | 3280 | 11 |
HLA-A*29:02 | VLYNSASFS | VLYNFAPFF | 10439 | 66 |
HLA-A*23:01 | LYNSASFS | LYNFAPFF | 22508 | 183 |
HLA-C*05:01 | VADYSVLYNS | VADYSVLYNF | 11802 | 122 |
HLA-A*24:02 | LYNSASFS | LYNFAPFF | 25164 | 266 |
HLA-A*32:01 | SVLYNSASFS | SVLYNFAPFF | 14340 | 178 |
HLA-A*24:02 | VLYNSASFS | VLYNFAPFF | 32767 | 429 |
HLA-A*29:02 | SVLYNSASFS | SVLYNFAPFF | 16185 | 256 |
HLA-B*15:01 | VLYNSASFS | VLYNFAPFF | 8189 | 139 |
HLA-C*03:02 | VLYNSASFS | VLYNFAPFF | 13004 | 222 |
HLA-C*03:02 | VADYSVLYNS | VADYSVLYNF | 20606 | 367 |
HLA-A*23:01 | SVLYNSASFS | SVLYNFAPFF | 24524 | 482 |
HLA-C*14:02 | LYNSASFS | LYNFAPFF | 5693 | 117 |
HLA-B*58:01 | VADYSVLYNS | VADYSVLYNF | 6124 | 129 |
HLA-B*15:03 | SVLYNSASFS | SVLYNFAPFF | 2850 | 70 |
HLA-A*01:01 | NSASFSTFKCY | NFAPFFAFKCY | 328 | 13051 |
HLA-A*23:01 | DYSVLYNSASFS | DYSVLYNFAPFF | 14260 | 374 |
HLA-C*16:01 | NSASFSTF | NFAPFFAF | 243 | 8562 |
HLA-C*08:02 | VADYSVLYNS | VADYSVLYNF | 16435 | 470 |
HLA-A*02:11 | SVLYNSASFST | SVLYNFAPFFA | 3830 | 120 |
HLA-C*14:02 | VLYNSASFS | VLYNFAPFF | 11085 | 354 |
HLA-A*02:01 | VLYNSASFST | VLYNFAPFFA | 243 | 8 |
HLA-B*57:01 | VADYSVLYNS | VADYSVLYNF | 11273 | 384 |
HLA-A*23:01 | NSASFSTF | NFAPFFAF | 12240 | 424 |
HLA-A*29:02 | YNSASFSTF | YNFAPFFAF | 1671 | 60 |
HLA-B*58:01 | YSVLYNSASFS | YSVLYNFAPFF | 6920 | 296 |
HLA-A*68:02 | NSASFSTFKCYGV | NFAPFFAFKCYGV | 48 | 1043 |
HLA-C*14:02 | NSASFSTF | NFAPFFAF | 2544 | 120 |
HLA-B*15:01 | SVLYNSASFS | SVLYNFAPFF | 2838 | 139 |
HLA-A*02:02 | VLYNSASFST | VLYNFAPFFA | 202 | 10 |
HLA-C*03:02 | SVLYNSASFS | SVLYNFAPFF | 8888 | 443 |
HLA-A*02:06 | VLYNSASFST | VLYNFAPFFA | 710 | 36 |
HLA-B*15:03 | YSVLYNSASFS | YSVLYNFAPFF | 3170 | 164 |
HLA-A*02:11 | VLYNSASFST | VLYNFAPFFA | 77 | 4 |
HLA-A*02:01 | SVLYNSASFST | SVLYNFAPFFA | 5674 | 301 |
HLA-A*11:01 | LYNSASFSTFK | LYNFAPFFAFK | 43 | 797 |
HLA-B*40:02 | ADYSVLYNS | ADYSVLYNF | 4645 | 259 |
HLA-A*30:02 | SASFSTFKCY | FAPFFAFKCY | 71 | 1241 |
HLA-A*02:11 | YSVLYNSASFST | YSVLYNFAPFFA | 7859 | 469 |
HLA-A*32:01 | YNSASFSTF | YNFAPFFAF | 4333 | 294 |
HLA-A*33:03 | YNSASFSTFK | YNFAPFFAFK | 823 | 57 |
HLA-A*02:06 | SVLYNSASFST | SVLYNFAPFFA | 4097 | 319 |
HLA-B*18:01 | YNSASFSTF | YNFAPFFAF | 3495 | 284 |
HLA-A*33:03 | NSASFSTFK | NFAPFFAFK | 181 | 16 |
HLA-A*02:11 | VLYNSASFSTF | VLYNFAPFFAF | 2537 | 236 |
HLA-A*11:01 | NSASFSTFK | NFAPFFAFK | 9 | 94 |
HLA-A*29:02 | NSASFSTFKCY | NFAPFFAFKCY | 662 | 64 |
HLA-A*29:02 | YNSASFSTFKCY | YNFAPFFAFKCY | 842 | 86 |
HLA-A*02:01 | VLYNSASFSTF | VLYNFAPFFAF | 4199 | 455 |
HLA-C*03:02 | YSVLYNSASFS | YSVLYNFAPFF | 2405 | 264 |
HLA-A*02:06 | SVLYNSASF | SVLYNFAPF | 2112 | 234 |
HLA-B*15:01 | VLYNSASFSTF | VLYNFAPFFAF | 50 | 420 |
HLA-A*31:01 | YNSASFSTFK | YNFAPFFAFK | 607 | 73 |
HLA-A*30:01 | LYNSASFST | LYNFAPFFA | 3467 | 433 |
HLA-A*33:03 | SVLYNSASFSTFK | SVLYNFAPFFAFK | 2778 | 357 |
HLA-B*35:01 | SASFSTFKCY | FAPFFAFKCY | 490 | 65 |
HLA-A*31:01 | NSASFSTFK | NFAPFFAFK | 293 | 47 |
HLA-A*29:02 | LYNSASFSTF | LYNFAPFFAF | 387 | 63 |
HLA-A*30:02 | VLYNSASFS | VLYNFAPFF | 2919 | 476 |
HLA-A*31:01 | SVLYNSASFSTFK | SVLYNFAPFFAFK | 857 | 148 |
HLA-A*23:01 | YNSASFSTF | YNFAPFFAF | 352 | 63 |
HLA-A*03:01 | LYNSASFSTFK | LYNFAPFFAFK | 295 | 1614 |
HLA-A*23:01 | SVLYNSASF | SVLYNFAPF | 990 | 197 |
HLA-A*02:11 | SVLYNSASFS | SVLYNFAPFF | 2012 | 435 |
HLA-A*03:01 | NSASFSTFK | NFAPFFAFK | 113 | 494 |
HLA-B*35:01 | YNSASFSTF | YNFAPFFAF | 760 | 180 |
HLA-A*03:02 | LYNSASFSTFK | LYNFAPFFAFK | 202 | 831 |
HLA-A*02:01 | VLYNSASFS | VLYNFAPFF | 1548 | 377 |
HLA-A*02:11 | VLYNSASFS | VLYNFAPFF | 258 | 63 |
HLA-A*01:01 | SASFSTFKCY | FAPFFAFKCY | 461 | 1849 |
HLA-A*11:01 | SASFSTFK | FAPFFAFK | 452 | 1795 |
HLA-A*68:01 | SASFSTFK | FAPFFAFK | 1114 | 290 |
HLA-B*15:01 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 164 | 629 |
HLA-A*03:02 | NSASFSTFK | NFAPFFAFK | 37 | 135 |
HLA-A*29:02 | SVLYNSASF | SVLYNFAPF | 1130 | 313 |
HLA-A*30:02 | NSASFSTFKCY | NFAPFFAFKCY | 387 | 1395 |
HLA-C*12:03 | SASFSTFKCY | FAPFFAFKCY | 498 | 139 |
HLA-C*14:02 | LYNSASFSTF | LYNFAPFFAF | 20 | 69 |
HLA-A*30:02 | VLYNSASFSTFKCY | VLYNFAPFFAFKCY | 272 | 923 |
HLA-A*32:01 | SVLYNSASFSTF | SVLYNFAPFFAF | 1624 | 488 |
HLA-A*31:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 565 | 170 |
HLA-A*68:01 | NSASFSTFK | NFAPFFAFK | 4 | 13 |
HLA-A*31:01 | LYNSASFSTFK | LYNFAPFFAFK | 299 | 92 |
HLA-A*11:01 | YNSASFSTFK | YNFAPFFAFK | 12 | 38 |
HLA-A*24:02 | LYNSASFSTFK | LYNFAPFFAFK | 356 | 1101 |
HLA-A*26:01 | SVLYNSASF | SVLYNFAPF | 1313 | 431 |
HLA-A*33:03 | LYNSASFSTFK | LYNFAPFFAFK | 1158 | 383 |
HLA-A*24:02 | VLYNSASFSTF | VLYNFAPFFAF | 186 | 551 |
HLA-A*03:01 | VLYNSASFSTFKC | VLYNFAPFFAFKC | 312 | 920 |
HLA-A*02:06 | SASFSTFKCYGV | FAPFFAFKCYGV | 1416 | 481 |
HLA-C*03:02 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 113 | 329 |
HLA-A*23:01 | YSVLYNSASF | YSVLYNFAPF | 1120 | 403 |
HLA-B*58:01 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 429 | 1160 |
HLA-A*29:02 | LYNSASFSTFKCY | LYNFAPFFAFKCY | 297 | 115 |
HLA-C*12:02 | SASFSTFKCY | FAPFFAFKCY | 710 | 275 |
HLA-B*15:03 | VLYNSASFSTF | VLYNFAPFFAF | 38 | 96 |
HLA-A*68:01 | NSASFSTFKC | NFAPFFAFKC | 281 | 702 |
HLA-A*03:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 7 | 17 |
HLA-A*03:01 | YNSASFSTFK | YNFAPFFAFK | 80 | 194 |
HLA-A*11:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 22 | 51 |
HLA-B*15:01 | SVLYNSASFSTF | SVLYNFAPFFAF | 221 | 509 |
HLA-B*15:01 | LYNSASFSTF | LYNFAPFFAF | 468 | 1064 |
HLA-B*15:01 | SASFSTFKCY | FAPFFAFKCY | 256 | 561 |
HLA-C*03:02 | SASFSTFKCY | FAPFFAFKCY | 212 | 97 |
HLA-A*23:01 | DYSVLYNSASF | DYSVLYNFAPF | 1039 | 482 |
HLA-A*68:01 | YSVLYNSASFSTFK | YSVLYNFAPFFAFK | 144 | 67 |
Reference ASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYAD
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated ASVYAWNRKRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYAD
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*32:01 | VLYNSASFS | VLYNFAPFF | 22186 | 33 |
HLA-A*23:01 | VLYNSASFS | VLYNFAPFF | 32767 | 84 |
HLA-B*15:03 | VLYNSASFS | VLYNFAPFF | 3280 | 11 |
HLA-A*29:02 | VLYNSASFS | VLYNFAPFF | 10439 | 66 |
HLA-A*23:01 | LYNSASFS | LYNFAPFF | 22508 | 183 |
HLA-A*24:02 | LYNSASFS | LYNFAPFF | 25164 | 266 |
HLA-A*32:01 | SVLYNSASFS | SVLYNFAPFF | 14340 | 178 |
HLA-A*24:02 | VLYNSASFS | VLYNFAPFF | 32767 | 429 |
HLA-A*29:02 | SVLYNSASFS | SVLYNFAPFF | 16185 | 256 |
HLA-A*30:02 | ASFSTFKCY | APFFAFKCY | 43 | 2647 |
HLA-B*15:01 | VLYNSASFS | VLYNFAPFF | 8189 | 139 |
HLA-C*03:02 | VLYNSASFS | VLYNFAPFF | 13004 | 222 |
HLA-B*15:01 | ASFSTFKCY | APFFAFKCY | 107 | 6085 |
HLA-A*23:01 | SVLYNSASFS | SVLYNFAPFF | 24524 | 482 |
HLA-A*02:06 | ASFSTFKCYGV | APFFAFKCYGV | 231 | 11537 |
HLA-C*14:02 | LYNSASFS | LYNFAPFF | 5693 | 117 |
HLA-C*16:01 | ASFSTFKCY | APFFAFKCY | 68 | 3117 |
HLA-C*12:03 | ASFSTFKCY | APFFAFKCY | 115 | 5066 |
HLA-C*03:02 | ASFSTFKCY | APFFAFKCY | 64 | 2656 |
HLA-B*15:03 | SVLYNSASFS | SVLYNFAPFF | 2850 | 70 |
HLA-A*01:01 | NSASFSTFKCY | NFAPFFAFKCY | 328 | 13051 |
HLA-A*23:01 | DYSVLYNSASFS | DYSVLYNFAPFF | 14260 | 374 |
HLA-C*16:01 | NSASFSTF | NFAPFFAF | 243 | 8562 |
HLA-A*11:01 | ASFSTFKCY | APFFAFKCY | 379 | 12606 |
HLA-A*02:11 | SVLYNSASFST | SVLYNFAPFFA | 3830 | 120 |
HLA-C*14:02 | VLYNSASFS | VLYNFAPFF | 11085 | 354 |
HLA-A*02:01 | VLYNSASFST | VLYNFAPFFA | 243 | 8 |
HLA-A*23:01 | NSASFSTF | NFAPFFAF | 12240 | 424 |
HLA-A*29:02 | YNSASFSTF | YNFAPFFAF | 1671 | 60 |
HLA-B*35:01 | ASFSTFKCY | APFFAFKCY | 2345 | 92 |
HLA-C*12:02 | ASFSTFKCY | APFFAFKCY | 338 | 8222 |
HLA-B*58:01 | YSVLYNSASFS | YSVLYNFAPFF | 6920 | 296 |
HLA-A*68:02 | NSASFSTFKCYGV | NFAPFFAFKCYGV | 48 | 1043 |
HLA-C*14:02 | NSASFSTF | NFAPFFAF | 2544 | 120 |
HLA-B*15:03 | ASFSTFKCY | APFFAFKCY | 25 | 529 |
HLA-B*15:01 | SVLYNSASFS | SVLYNFAPFF | 2838 | 139 |
HLA-A*02:02 | VLYNSASFST | VLYNFAPFFA | 202 | 10 |
HLA-C*03:02 | SVLYNSASFS | SVLYNFAPFF | 8888 | 443 |
HLA-A*02:06 | VLYNSASFST | VLYNFAPFFA | 710 | 36 |
HLA-B*15:03 | YSVLYNSASFS | YSVLYNFAPFF | 3170 | 164 |
HLA-A*02:11 | VLYNSASFST | VLYNFAPFFA | 77 | 4 |
HLA-A*02:01 | SVLYNSASFST | SVLYNFAPFFA | 5674 | 301 |
HLA-A*11:01 | LYNSASFSTFK | LYNFAPFFAFK | 43 | 797 |
HLA-A*30:02 | SASFSTFKCY | FAPFFAFKCY | 71 | 1241 |
HLA-A*02:11 | YSVLYNSASFST | YSVLYNFAPFFA | 7859 | 469 |
HLA-C*14:02 | SFSTFKCY | PFFAFKCY | 386 | 6449 |
HLA-A*32:01 | YNSASFSTF | YNFAPFFAF | 4333 | 294 |
HLA-A*33:03 | YNSASFSTFK | YNFAPFFAFK | 823 | 57 |
HLA-A*02:06 | SVLYNSASFST | SVLYNFAPFFA | 4097 | 319 |
HLA-B*18:01 | YNSASFSTF | YNFAPFFAF | 3495 | 284 |
HLA-A*33:03 | NSASFSTFK | NFAPFFAFK | 181 | 16 |
HLA-A*02:11 | VLYNSASFSTF | VLYNFAPFFAF | 2537 | 236 |
HLA-A*11:01 | NSASFSTFK | NFAPFFAFK | 9 | 94 |
HLA-A*29:02 | NSASFSTFKCY | NFAPFFAFKCY | 662 | 64 |
HLA-A*29:02 | YNSASFSTFKCY | YNFAPFFAFKCY | 842 | 86 |
HLA-A*02:01 | VLYNSASFSTF | VLYNFAPFFAF | 4199 | 455 |
HLA-C*03:02 | YSVLYNSASFS | YSVLYNFAPFF | 2405 | 264 |
HLA-A*29:02 | ASFSTFKCY | APFFAFKCY | 201 | 1830 |
HLA-A*02:06 | SVLYNSASF | SVLYNFAPF | 2112 | 234 |
HLA-B*15:01 | VLYNSASFSTF | VLYNFAPFFAF | 50 | 420 |
HLA-A*31:01 | YNSASFSTFK | YNFAPFFAFK | 607 | 73 |
HLA-A*30:01 | LYNSASFST | LYNFAPFFA | 3467 | 433 |
HLA-A*33:03 | SVLYNSASFSTFK | SVLYNFAPFFAFK | 2778 | 357 |
HLA-B*35:01 | SASFSTFKCY | FAPFFAFKCY | 490 | 65 |
HLA-A*31:01 | NSASFSTFK | NFAPFFAFK | 293 | 47 |
HLA-A*29:02 | LYNSASFSTF | LYNFAPFFAF | 387 | 63 |
HLA-A*30:02 | VLYNSASFS | VLYNFAPFF | 2919 | 476 |
HLA-A*31:01 | SVLYNSASFSTFK | SVLYNFAPFFAFK | 857 | 148 |
HLA-A*23:01 | YNSASFSTF | YNFAPFFAF | 352 | 63 |
HLA-A*03:01 | LYNSASFSTFK | LYNFAPFFAFK | 295 | 1614 |
HLA-A*23:01 | SVLYNSASF | SVLYNFAPF | 990 | 197 |
HLA-A*02:11 | SVLYNSASFS | SVLYNFAPFF | 2012 | 435 |
HLA-A*03:01 | NSASFSTFK | NFAPFFAFK | 113 | 494 |
HLA-B*35:01 | YNSASFSTF | YNFAPFFAF | 760 | 180 |
HLA-A*03:02 | LYNSASFSTFK | LYNFAPFFAFK | 202 | 831 |
HLA-A*02:01 | VLYNSASFS | VLYNFAPFF | 1548 | 377 |
HLA-A*02:11 | VLYNSASFS | VLYNFAPFF | 258 | 63 |
HLA-A*01:01 | SASFSTFKCY | FAPFFAFKCY | 461 | 1849 |
HLA-A*11:01 | SASFSTFK | FAPFFAFK | 452 | 1795 |
HLA-A*68:01 | SASFSTFK | FAPFFAFK | 1114 | 290 |
HLA-B*15:01 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 164 | 629 |
HLA-A*03:02 | NSASFSTFK | NFAPFFAFK | 37 | 135 |
HLA-A*29:02 | SVLYNSASF | SVLYNFAPF | 1130 | 313 |
HLA-A*30:02 | NSASFSTFKCY | NFAPFFAFKCY | 387 | 1395 |
HLA-C*12:03 | SASFSTFKCY | FAPFFAFKCY | 498 | 139 |
HLA-C*14:02 | LYNSASFSTF | LYNFAPFFAF | 20 | 69 |
HLA-A*30:02 | VLYNSASFSTFKCY | VLYNFAPFFAFKCY | 272 | 923 |
HLA-A*32:01 | SVLYNSASFSTF | SVLYNFAPFFAF | 1624 | 488 |
HLA-A*31:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 565 | 170 |
HLA-A*68:01 | NSASFSTFK | NFAPFFAFK | 4 | 13 |
HLA-A*31:01 | LYNSASFSTFK | LYNFAPFFAFK | 299 | 92 |
HLA-A*11:01 | YNSASFSTFK | YNFAPFFAFK | 12 | 38 |
HLA-A*24:02 | LYNSASFSTFK | LYNFAPFFAFK | 356 | 1101 |
HLA-A*26:01 | SVLYNSASF | SVLYNFAPF | 1313 | 431 |
HLA-A*33:03 | LYNSASFSTFK | LYNFAPFFAFK | 1158 | 383 |
HLA-A*24:02 | VLYNSASFSTF | VLYNFAPFFAF | 186 | 551 |
HLA-A*03:01 | VLYNSASFSTFKC | VLYNFAPFFAFKC | 312 | 920 |
HLA-A*02:06 | SASFSTFKCYGV | FAPFFAFKCYGV | 1416 | 481 |
HLA-C*03:02 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 113 | 329 |
HLA-A*23:01 | YSVLYNSASF | YSVLYNFAPF | 1120 | 403 |
HLA-B*58:01 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 429 | 1160 |
HLA-A*29:02 | LYNSASFSTFKCY | LYNFAPFFAFKCY | 297 | 115 |
HLA-C*12:02 | SASFSTFKCY | FAPFFAFKCY | 710 | 275 |
HLA-B*15:03 | VLYNSASFSTF | VLYNFAPFFAF | 38 | 96 |
HLA-A*68:01 | NSASFSTFKC | NFAPFFAFKC | 281 | 702 |
HLA-A*03:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 7 | 17 |
HLA-A*03:01 | YNSASFSTFK | YNFAPFFAFK | 80 | 194 |
HLA-A*11:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 22 | 51 |
HLA-B*15:01 | SVLYNSASFSTF | SVLYNFAPFFAF | 221 | 509 |
HLA-B*15:01 | LYNSASFSTF | LYNFAPFFAF | 468 | 1064 |
HLA-B*15:01 | SASFSTFKCY | FAPFFAFKCY | 256 | 561 |
HLA-C*03:02 | SASFSTFKCY | FAPFFAFKCY | 212 | 97 |
HLA-A*23:01 | DYSVLYNSASF | DYSVLYNFAPF | 1039 | 482 |
HLA-A*68:01 | YSVLYNSASFSTFK | YSVLYNFAPFFAFK | 144 | 67 |
Reference VYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFV
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated VYAWNRKRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFV
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*32:01 | VLYNSASFS | VLYNFAPFF | 22186 | 33 |
HLA-A*23:01 | VLYNSASFS | VLYNFAPFF | 32767 | 84 |
HLA-B*15:03 | VLYNSASFS | VLYNFAPFF | 3280 | 11 |
HLA-A*29:02 | VLYNSASFS | VLYNFAPFF | 10439 | 66 |
HLA-A*23:01 | LYNSASFS | LYNFAPFF | 22508 | 183 |
HLA-A*24:02 | LYNSASFS | LYNFAPFF | 25164 | 266 |
HLA-A*32:01 | SVLYNSASFS | SVLYNFAPFF | 14340 | 178 |
HLA-A*24:02 | VLYNSASFS | VLYNFAPFF | 32767 | 429 |
HLA-A*29:02 | SVLYNSASFS | SVLYNFAPFF | 16185 | 256 |
HLA-A*30:02 | ASFSTFKCY | APFFAFKCY | 43 | 2647 |
HLA-B*15:01 | VLYNSASFS | VLYNFAPFF | 8189 | 139 |
HLA-C*03:02 | VLYNSASFS | VLYNFAPFF | 13004 | 222 |
HLA-B*15:01 | ASFSTFKCY | APFFAFKCY | 107 | 6085 |
HLA-A*23:01 | SVLYNSASFS | SVLYNFAPFF | 24524 | 482 |
HLA-A*02:06 | ASFSTFKCYGV | APFFAFKCYGV | 231 | 11537 |
HLA-C*14:02 | LYNSASFS | LYNFAPFF | 5693 | 117 |
HLA-C*15:02 | FSTFKCYGV | FFAFKCYGV | 431 | 20837 |
HLA-C*16:01 | ASFSTFKCY | APFFAFKCY | 68 | 3117 |
HLA-C*12:03 | ASFSTFKCY | APFFAFKCY | 115 | 5066 |
HLA-C*03:02 | ASFSTFKCY | APFFAFKCY | 64 | 2656 |
HLA-A*11:01 | STFKCYGVSPTK | FAFKCYGVSPTK | 25 | 1030 |
HLA-B*15:03 | SVLYNSASFS | SVLYNFAPFF | 2850 | 70 |
HLA-A*01:01 | NSASFSTFKCY | NFAPFFAFKCY | 328 | 13051 |
HLA-A*23:01 | DYSVLYNSASFS | DYSVLYNFAPFF | 14260 | 374 |
HLA-C*16:01 | NSASFSTF | NFAPFFAF | 243 | 8562 |
HLA-A*11:01 | ASFSTFKCY | APFFAFKCY | 379 | 12606 |
HLA-A*02:11 | SVLYNSASFST | SVLYNFAPFFA | 3830 | 120 |
HLA-C*14:02 | VLYNSASFS | VLYNFAPFF | 11085 | 354 |
HLA-A*02:01 | VLYNSASFST | VLYNFAPFFA | 243 | 8 |
HLA-A*23:01 | NSASFSTF | NFAPFFAF | 12240 | 424 |
HLA-A*29:02 | YNSASFSTF | YNFAPFFAF | 1671 | 60 |
HLA-C*16:01 | FSTFKCYGV | FFAFKCYGV | 302 | 8277 |
HLA-B*35:01 | ASFSTFKCY | APFFAFKCY | 2345 | 92 |
HLA-C*12:02 | ASFSTFKCY | APFFAFKCY | 338 | 8222 |
HLA-B*58:01 | YSVLYNSASFS | YSVLYNFAPFF | 6920 | 296 |
HLA-A*03:01 | STFKCYGVSPTK | FAFKCYGVSPTK | 83 | 1880 |
HLA-A*68:02 | NSASFSTFKCYGV | NFAPFFAFKCYGV | 48 | 1043 |
HLA-C*14:02 | NSASFSTF | NFAPFFAF | 2544 | 120 |
HLA-B*15:03 | ASFSTFKCY | APFFAFKCY | 25 | 529 |
HLA-B*15:01 | SVLYNSASFS | SVLYNFAPFF | 2838 | 139 |
HLA-A*02:02 | VLYNSASFST | VLYNFAPFFA | 202 | 10 |
HLA-C*03:02 | SVLYNSASFS | SVLYNFAPFF | 8888 | 443 |
HLA-C*03:02 | STFKCYGVS | FAFKCYGVS | 8370 | 424 |
HLA-A*02:06 | VLYNSASFST | VLYNFAPFFA | 710 | 36 |
HLA-B*15:03 | YSVLYNSASFS | YSVLYNFAPFF | 3170 | 164 |
HLA-A*02:11 | VLYNSASFST | VLYNFAPFFA | 77 | 4 |
HLA-A*02:01 | SVLYNSASFST | SVLYNFAPFFA | 5674 | 301 |
HLA-A*11:01 | LYNSASFSTFK | LYNFAPFFAFK | 43 | 797 |
HLA-A*03:02 | STFKCYGVSPTK | FAFKCYGVSPTK | 142 | 2541 |
HLA-A*30:02 | SASFSTFKCY | FAPFFAFKCY | 71 | 1241 |
HLA-A*02:11 | YSVLYNSASFST | YSVLYNFAPFFA | 7859 | 469 |
HLA-C*14:02 | SFSTFKCY | PFFAFKCY | 386 | 6449 |
HLA-A*30:01 | STFKCYGVS | FAFKCYGVS | 438 | 6895 |
HLA-A*68:02 | FSTFKCYGV | FFAFKCYGV | 17 | 261 |
HLA-A*32:01 | YNSASFSTF | YNFAPFFAF | 4333 | 294 |
HLA-A*02:06 | FSTFKCYGV | FFAFKCYGV | 61 | 882 |
HLA-A*33:03 | YNSASFSTFK | YNFAPFFAFK | 823 | 57 |
HLA-A*11:01 | FSTFKCYGVSPTK | FFAFKCYGVSPTK | 426 | 5482 |
HLA-A*02:06 | SVLYNSASFST | SVLYNFAPFFA | 4097 | 319 |
HLA-B*18:01 | YNSASFSTF | YNFAPFFAF | 3495 | 284 |
HLA-A*33:03 | NSASFSTFK | NFAPFFAFK | 181 | 16 |
HLA-C*14:02 | FSTFKCYGV | FFAFKCYGV | 4043 | 371 |
HLA-A*02:11 | VLYNSASFSTF | VLYNFAPFFAF | 2537 | 236 |
HLA-A*11:01 | NSASFSTFK | NFAPFFAFK | 9 | 94 |
HLA-A*29:02 | NSASFSTFKCY | NFAPFFAFKCY | 662 | 64 |
HLA-A*29:02 | YNSASFSTFKCY | YNFAPFFAFKCY | 842 | 86 |
HLA-A*02:01 | VLYNSASFSTF | VLYNFAPFFAF | 4199 | 455 |
HLA-C*03:02 | YSVLYNSASFS | YSVLYNFAPFF | 2405 | 264 |
HLA-A*29:02 | ASFSTFKCY | APFFAFKCY | 201 | 1830 |
HLA-B*15:01 | VLYNSASFSTF | VLYNFAPFFAF | 50 | 420 |
HLA-A*31:01 | YNSASFSTFK | YNFAPFFAFK | 607 | 73 |
HLA-A*30:01 | LYNSASFST | LYNFAPFFA | 3467 | 433 |
HLA-A*33:03 | SVLYNSASFSTFK | SVLYNFAPFFAFK | 2778 | 357 |
HLA-B*35:01 | SASFSTFKCY | FAPFFAFKCY | 490 | 65 |
HLA-A*30:01 | STFKCYGVSPTK | FAFKCYGVSPTK | 194 | 1428 |
HLA-A*31:01 | NSASFSTFK | NFAPFFAFK | 293 | 47 |
HLA-A*29:02 | LYNSASFSTF | LYNFAPFFAF | 387 | 63 |
HLA-A*30:02 | VLYNSASFS | VLYNFAPFF | 2919 | 476 |
HLA-A*31:01 | SVLYNSASFSTFK | SVLYNFAPFFAFK | 857 | 148 |
HLA-A*23:01 | YNSASFSTF | YNFAPFFAF | 352 | 63 |
HLA-A*03:01 | LYNSASFSTFK | LYNFAPFFAFK | 295 | 1614 |
HLA-A*02:11 | SVLYNSASFS | SVLYNFAPFF | 2012 | 435 |
HLA-A*03:01 | NSASFSTFK | NFAPFFAFK | 113 | 494 |
HLA-B*35:01 | YNSASFSTF | YNFAPFFAF | 760 | 180 |
HLA-A*03:02 | LYNSASFSTFK | LYNFAPFFAFK | 202 | 831 |
HLA-A*02:01 | VLYNSASFS | VLYNFAPFF | 1548 | 377 |
HLA-A*02:11 | VLYNSASFS | VLYNFAPFF | 258 | 63 |
HLA-A*01:01 | SASFSTFKCY | FAPFFAFKCY | 461 | 1849 |
HLA-A*11:01 | SASFSTFK | FAPFFAFK | 452 | 1795 |
HLA-A*68:01 | SASFSTFK | FAPFFAFK | 1114 | 290 |
HLA-B*15:01 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 164 | 629 |
HLA-A*03:02 | NSASFSTFK | NFAPFFAFK | 37 | 135 |
HLA-A*30:02 | NSASFSTFKCY | NFAPFFAFKCY | 387 | 1395 |
HLA-C*12:03 | SASFSTFKCY | FAPFFAFKCY | 498 | 139 |
HLA-C*14:02 | LYNSASFSTF | LYNFAPFFAF | 20 | 69 |
HLA-A*30:02 | VLYNSASFSTFKCY | VLYNFAPFFAFKCY | 272 | 923 |
HLA-A*32:01 | SVLYNSASFSTF | SVLYNFAPFFAF | 1624 | 488 |
HLA-A*31:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 565 | 170 |
HLA-A*68:01 | NSASFSTFK | NFAPFFAFK | 4 | 13 |
HLA-A*31:01 | LYNSASFSTFK | LYNFAPFFAFK | 299 | 92 |
HLA-A*11:01 | YNSASFSTFK | YNFAPFFAFK | 12 | 38 |
HLA-A*24:02 | LYNSASFSTFK | LYNFAPFFAFK | 356 | 1101 |
HLA-A*33:03 | LYNSASFSTFK | LYNFAPFFAFK | 1158 | 383 |
HLA-A*24:02 | VLYNSASFSTF | VLYNFAPFFAF | 186 | 551 |
HLA-A*03:01 | VLYNSASFSTFKC | VLYNFAPFFAFKC | 312 | 920 |
HLA-A*02:06 | SASFSTFKCYGV | FAPFFAFKCYGV | 1416 | 481 |
HLA-C*03:02 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 113 | 329 |
HLA-A*68:01 | FSTFKCYGVSPTK | FFAFKCYGVSPTK | 288 | 832 |
HLA-B*58:01 | YSVLYNSASFSTF | YSVLYNFAPFFAF | 429 | 1160 |
HLA-A*29:02 | LYNSASFSTFKCY | LYNFAPFFAFKCY | 297 | 115 |
HLA-C*12:02 | SASFSTFKCY | FAPFFAFKCY | 710 | 275 |
HLA-B*15:03 | VLYNSASFSTF | VLYNFAPFFAF | 38 | 96 |
HLA-A*68:01 | NSASFSTFKC | NFAPFFAFKC | 281 | 702 |
HLA-A*03:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 7 | 17 |
HLA-A*03:01 | YNSASFSTFK | YNFAPFFAFK | 80 | 194 |
HLA-A*11:01 | VLYNSASFSTFK | VLYNFAPFFAFK | 22 | 51 |
HLA-B*15:01 | SVLYNSASFSTF | SVLYNFAPFFAF | 221 | 509 |
HLA-B*15:01 | LYNSASFSTF | LYNFAPFFAF | 468 | 1064 |
HLA-B*15:01 | SASFSTFKCY | FAPFFAFKCY | 256 | 561 |
HLA-C*03:02 | SASFSTFKCY | FAPFFAFKCY | 212 | 97 |
HLA-A*68:01 | YSVLYNSASFSTFK | YSVLYNFAPFFAFK | 144 | 67 |
HLA-A*30:01 | TFKCYGVSPTK | AFKCYGVSPTK | 319 | 155 |
HLA-A*02:01 | FSTFKCYGV | FFAFKCYGV | 457 | 926 |
Reference YGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFT
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated YGVSPTKLNDLCFTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFT
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*68:01 | FVIRGDEVR | FVIRGNEVS | 23 | 15265 |
HLA-A*68:01 | SFVIRGDEVR | SFVIRGNEVS | 186 | 29639 |
HLA-A*68:01 | DSFVIRGDEVR | DSFVIRGNEVS | 220 | 29286 |
HLA-A*33:03 | FVIRGDEVR | FVIRGNEVS | 320 | 29448 |
HLA-A*33:03 | SFVIRGDEVR | SFVIRGNEVS | 459 | 31986 |
HLA-C*14:02 | SFVIRGDEV | SFVIRGNEV | 216 | 46 |
HLA-C*06:02 | IRGDEVRQI | IRGNEVSQI | 147 | 642 |
Reference SPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCV
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated SPTKLNDLCFTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFTGCV
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*68:01 | FVIRGDEVR | FVIRGNEVS | 23 | 15265 |
HLA-A*03:01 | RQIAPGQTGK | SQIAPGQTGN | 49 | 32429 |
HLA-A*11:01 | RQIAPGQTGK | SQIAPGQTGN | 103 | 32387 |
HLA-A*03:02 | RQIAPGQTGK | SQIAPGQTGN | 123 | 32767 |
HLA-A*68:01 | EVRQIAPGQTGK | EVSQIAPGQTGN | 144 | 32361 |
HLA-A*68:01 | SFVIRGDEVR | SFVIRGNEVS | 186 | 29639 |
HLA-A*68:01 | DSFVIRGDEVR | DSFVIRGNEVS | 220 | 29286 |
HLA-A*33:03 | FVIRGDEVR | FVIRGNEVS | 320 | 29448 |
HLA-A*33:03 | SFVIRGDEVR | SFVIRGNEVS | 459 | 31986 |
HLA-A*30:01 | RQIAPGQTGK | SQIAPGQTGN | 275 | 18394 |
HLA-C*06:02 | IRGDEVRQI | IRGNEVSQI | 147 | 642 |
HLA-B*15:03 | RQIAPGQT | SQIAPGQT | 478 | 1764 |
HLA-B*15:03 | RQIAPGQTGKIADY | SQIAPGQTGNIADY | 17 | 55 |
HLA-A*30:02 | RQIAPGQTGKIADY | SQIAPGQTGNIADY | 324 | 951 |
HLA-B*15:03 | RQIAPGQTGKI | SQIAPGQTGNI | 236 | 691 |
HLA-B*15:03 | RQIAPGQTG | SQIAPGQTG | 39 | 107 |
Reference FTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLD
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated FTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLD
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*03:01 | RQIAPGQTGK | SQIAPGQTGN | 49 | 32429 |
HLA-A*11:01 | RQIAPGQTGK | SQIAPGQTGN | 103 | 32387 |
HLA-A*03:02 | RQIAPGQTGK | SQIAPGQTGN | 123 | 32767 |
HLA-A*68:01 | EVRQIAPGQTGK | EVSQIAPGQTGN | 144 | 32361 |
HLA-A*68:01 | QIAPGQTGK | QIAPGQTGN | 136 | 27997 |
HLA-A*11:01 | QIAPGQTGK | QIAPGQTGN | 165 | 32767 |
HLA-A*03:02 | QIAPGQTGK | QIAPGQTGN | 278 | 32767 |
HLA-A*03:01 | QIAPGQTGK | QIAPGQTGN | 296 | 32767 |
HLA-A*32:01 | KIADYNYKL | NIADYNYKL | 58 | 4480 |
HLA-A*30:01 | RQIAPGQTGK | SQIAPGQTGN | 275 | 18394 |
HLA-A*68:02 | KIADYNYKL | NIADYNYKL | 1274 | 39 |
HLA-A*03:02 | KIADYNYK | NIADYNYK | 476 | 6850 |
HLA-A*02:06 | KIADYNYKL | NIADYNYKL | 20 | 101 |
HLA-A*02:01 | KIADYNYKL | NIADYNYKL | 23 | 110 |
HLA-C*17:01 | KIADYNYKL | NIADYNYKL | 155 | 669 |
HLA-A*30:01 | TGKIADYNYK | TGNIADYNYK | 292 | 1164 |
HLA-A*02:11 | KIADYNYKL | NIADYNYKL | 5 | 19 |
HLA-B*15:03 | RQIAPGQTGKIADY | SQIAPGQTGNIADY | 17 | 55 |
HLA-A*30:02 | RQIAPGQTGKIADY | SQIAPGQTGNIADY | 324 | 951 |
HLA-B*15:03 | RQIAPGQTGKI | SQIAPGQTGNI | 236 | 691 |
HLA-A*68:01 | TGKIADYNYK | TGNIADYNYK | 957 | 343 |
HLA-A*01:01 | QTGKIADYNY | QTGNIADYNY | 580 | 270 |
Reference TGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFE
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated TGNIADYNYKLPDDFTGCVIAWNSNKLDSKVGGNYNYLYRLFRKSNLKPFE
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*11:01 | CVIAWNSNN | CVIAWNSNK | 24486 | 26 |
HLA-A*68:01 | CVIAWNSNN | CVIAWNSNK | 11802 | 16 |
HLA-A*68:01 | FTGCVIAWNSNN | FTGCVIAWNSNK | 25655 | 59 |
HLA-A*03:01 | CVIAWNSNN | CVIAWNSNK | 24643 | 61 |
HLA-A*03:02 | CVIAWNSNN | CVIAWNSNK | 22621 | 61 |
HLA-A*11:01 | GCVIAWNSNN | GCVIAWNSNK | 32767 | 94 |
HLA-A*03:01 | GCVIAWNSNN | GCVIAWNSNK | 32767 | 128 |
HLA-A*11:01 | TGCVIAWNSNN | TGCVIAWNSNK | 32767 | 153 |
HLA-A*68:01 | TGCVIAWNSNN | TGCVIAWNSNK | 32767 | 180 |
HLA-A*68:01 | DFTGCVIAWNSNN | DFTGCVIAWNSNK | 32767 | 255 |
HLA-A*03:02 | GCVIAWNSNN | GCVIAWNSNK | 32767 | 277 |
HLA-A*11:01 | FTGCVIAWNSNN | FTGCVIAWNSNK | 32767 | 408 |
HLA-A*31:01 | CVIAWNSNN | CVIAWNSNK | 18631 | 279 |
HLA-A*33:03 | CVIAWNSNN | CVIAWNSNK | 20952 | 493 |
HLA-A*30:01 | CVIAWNSNN | CVIAWNSNK | 11396 | 467 |
HLA-A*30:02 | NLDSKVGGNYNY | KLDSKVGGNYNY | 3839 | 409 |
HLA-A*30:02 | NLDSKVGGNY | KLDSKVGGNY | 422 | 52 |
HLA-B*15:01 | NLDSKVGGNY | KLDSKVGGNY | 1404 | 179 |
HLA-A*30:02 | NLDSKVGGNYNYLY | KLDSKVGGNYNYLY | 3335 | 435 |
HLA-A*02:11 | NLDSKVGGNYNYL | KLDSKVGGNYNYL | 671 | 92 |
HLA-A*01:01 | NLDSKVGGNYNYLY | KLDSKVGGNYNYLY | 193 | 467 |
HLA-A*01:01 | NLDSKVGGNY | KLDSKVGGNY | 371 | 819 |
HLA-A*02:11 | VIAWNSNNL | VIAWNSNKL | 269 | 586 |
HLA-A*68:02 | FTGCVIAWNSNNL | FTGCVIAWNSNKL | 461 | 960 |
Reference LYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGV
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated LYRLFRKSNLKPFERDISTEIYQAGNKPCNGVAGFNCYFPLRSYGFRPTYGV
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*11:01 | STEIYQAGST | STEIYQAGNK | 30358 | 67 |
HLA-A*68:01 | STEIYQAGST | STEIYQAGNK | 22142 | 157 |
HLA-A*03:01 | STEIYQAGST | STEIYQAGNK | 32241 | 308 |
HLA-B*35:01 | TPCNGVEGF | KPCNGVAGF | 319 | 1522 |
HLA-B*42:01 | TPCNGVEGF | KPCNGVAGF | 2031 | 454 |
HLA-A*02:11 | YQAGSTPCNGV | YQAGNKPCNGV | 173 | 678 |
HLA-B*50:01 | TEIYQAGSTP | TEIYQAGNKP | 464 | 1807 |
HLA-A*02:06 | YQAGSTPCNGV | YQAGNKPCNGV | 39 | 146 |
HLA-A*02:01 | YQAGSTPCNGV | YQAGNKPCNGV | 420 | 1490 |
HLA-C*14:02 | IYQAGSTPC | IYQAGNKPC | 134 | 459 |
HLA-A*02:02 | YQAGSTPCNGV | YQAGNKPCNGV | 107 | 233 |
Reference SNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYR
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated SNLKPFERDISTEIYQAGNKPCNGVAGFNCYFPLRSYGFRPTYGVGHQPYR
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*31:01 | EGFNCYFPLQ | AGFNCYFPLR | 13906 | 13 |
HLA-B*40:02 | VEGFNCYFPL | VAGFNCYFPL | 31 | 10868 |
HLA-A*68:01 | GVEGFNCYFPLQ | GVAGFNCYFPLR | 27995 | 107 |
HLA-B*40:01 | VEGFNCYFPL | VAGFNCYFPL | 76 | 19416 |
HLA-A*31:01 | GVEGFNCYFPLQ | GVAGFNCYFPLR | 15109 | 90 |
HLA-A*31:01 | VEGFNCYFPLQ | VAGFNCYFPLR | 15897 | 151 |
HLA-A*11:01 | EGFNCYFPLQ | AGFNCYFPLR | 25719 | 362 |
HLA-A*33:03 | GVEGFNCYFPLQ | GVAGFNCYFPLR | 24534 | 414 |
HLA-A*33:03 | NGVEGFNCYFPLQ | NGVAGFNCYFPLR | 23008 | 416 |
HLA-A*33:03 | EGFNCYFPLQ | AGFNCYFPLR | 7445 | 148 |
HLA-B*15:01 | GVEGFNCYF | GVAGFNCYF | 3125 | 128 |
HLA-A*68:02 | EGFNCYFPL | AGFNCYFPL | 117 | 2032 |
HLA-A*68:01 | EGFNCYFPLQ | AGFNCYFPLR | 5231 | 331 |
HLA-A*32:01 | GVEGFNCYF | GVAGFNCYF | 5606 | 430 |
HLA-B*15:03 | GVEGFNCYF | GVAGFNCYF | 1657 | 141 |
HLA-B*15:03 | EGFNCYFPL | AGFNCYFPL | 2980 | 308 |
HLA-A*30:02 | EGFNCYFPLQSY | AGFNCYFPLRSY | 1806 | 189 |
HLA-A*02:06 | EGFNCYFPL | AGFNCYFPL | 1266 | 185 |
HLA-A*02:11 | EGFNCYFPL | AGFNCYFPL | 2508 | 401 |
HLA-A*02:02 | GVEGFNCYFPL | GVAGFNCYFPL | 666 | 124 |
HLA-A*02:06 | VEGFNCYFPL | VAGFNCYFPL | 1553 | 310 |
HLA-B*35:01 | TPCNGVEGF | KPCNGVAGF | 319 | 1522 |
HLA-B*42:01 | TPCNGVEGF | KPCNGVAGF | 2031 | 454 |
HLA-A*02:11 | GVEGFNCYFPL | GVAGFNCYFPL | 464 | 172 |
HLA-A*02:06 | GVEGFNCYFPL | GVAGFNCYFPL | 400 | 174 |
Reference ISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELL
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated ISTEIYQAGNKPCNGVAGFNCYFPLRSYGFRPTYGVGHQPYRVVVLSFELL
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*15:03 | QSYGFQPTN | RSYGFRPTY | 6543 | 5 |
HLA-C*16:01 | QSYGFQPTN | RSYGFRPTY | 10868 | 9 |
HLA-C*03:02 | QSYGFQPTN | RSYGFRPTY | 12903 | 11 |
HLA-A*31:01 | EGFNCYFPLQ | AGFNCYFPLR | 13906 | 13 |
HLA-A*32:01 | QSYGFQPTN | RSYGFRPTY | 16619 | 17 |
HLA-C*12:03 | QSYGFQPTN | RSYGFRPTY | 12696 | 21 |
HLA-A*30:02 | QSYGFQPTN | RSYGFRPTY | 5297 | 10 |
HLA-A*29:02 | QSYGFQPTN | RSYGFRPTY | 26152 | 55 |
HLA-A*31:01 | CYFPLQSYGFQ | CYFPLRSYGFR | 8535 | 18 |
HLA-A*33:03 | YFPLQSYGFQ | YFPLRSYGFR | 11148 | 26 |
HLA-A*29:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 19514 | 51 |
HLA-A*31:01 | YFPLQSYGFQ | YFPLRSYGFR | 16290 | 49 |
HLA-A*33:03 | CYFPLQSYGFQ | CYFPLRSYGFR | 11311 | 35 |
HLA-A*31:01 | GFNCYFPLQ | GFNCYFPLR | 8660 | 27 |
HLA-A*33:03 | FPLQSYGFQ | FPLRSYGFR | 23527 | 81 |
HLA-B*15:01 | QSYGFQPTN | RSYGFRPTY | 21529 | 75 |
HLA-A*68:01 | GVEGFNCYFPLQ | GVAGFNCYFPLR | 27995 | 107 |
HLA-C*14:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 18230 | 74 |
HLA-C*14:02 | QSYGFQPTN | RSYGFRPTY | 25941 | 110 |
HLA-B*35:01 | FPLQSYGFQPTN | FPLRSYGFRPTY | 8715 | 39 |
HLA-C*03:02 | FPLQSYGFQPTN | FPLRSYGFRPTY | 23840 | 111 |
HLA-C*12:02 | QSYGFQPTN | RSYGFRPTY | 21029 | 102 |
HLA-A*03:01 | QSYGFQPTN | RSYGFRPTY | 24499 | 125 |
HLA-A*11:01 | QSYGFQPTN | RSYGFRPTY | 22068 | 116 |
HLA-B*27:05 | LQSYGFQPTN | LRSYGFRPTY | 22303 | 124 |
HLA-C*03:02 | LQSYGFQPTN | LRSYGFRPTY | 23421 | 138 |
HLA-A*30:01 | QSYGFQPTN | RSYGFRPTY | 3720 | 22 |
HLA-A*31:01 | GVEGFNCYFPLQ | GVAGFNCYFPLR | 15109 | 90 |
HLA-C*02:02 | QSYGFQPTN | RSYGFRPTY | 26598 | 166 |
HLA-C*02:10 | QSYGFQPTN | RSYGFRPTY | 26598 | 166 |
HLA-A*31:01 | NCYFPLQSYGFQ | NCYFPLRSYGFR | 21321 | 135 |
HLA-C*03:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 27639 | 176 |
HLA-A*30:01 | QSYGFQPTNG | RSYGFRPTYG | 4998 | 34 |
HLA-C*16:01 | LQSYGFQPTN | LRSYGFRPTY | 27149 | 185 |
HLA-B*15:01 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 180 | 26350 |
HLA-A*30:02 | LQSYGFQPTN | LRSYGFRPTY | 7508 | 53 |
HLA-A*33:03 | GFNCYFPLQ | GFNCYFPLR | 15908 | 119 |
HLA-B*15:03 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 113 | 13480 |
HLA-C*16:01 | FPLQSYGFQPTN | FPLRSYGFRPTY | 27733 | 235 |
HLA-A*33:03 | NCYFPLQSYGFQ | NCYFPLRSYGFR | 22134 | 197 |
HLA-B*15:03 | FPLQSYGFQPTN | FPLRSYGFRPTY | 20159 | 184 |
HLA-A*68:01 | FPLQSYGFQ | FPLRSYGFR | 17691 | 164 |
HLA-B*15:03 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 22168 | 209 |
HLA-A*31:01 | VEGFNCYFPLQ | VAGFNCYFPLR | 15897 | 151 |
HLA-B*57:01 | QSYGFQPTN | RSYGFRPTY | 4070 | 39 |
HLA-C*16:01 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 29358 | 304 |
HLA-C*12:03 | FPLQSYGFQPTN | FPLRSYGFRPTY | 27893 | 295 |
HLA-A*31:01 | QSYGFQPTN | RSYGFRPTY | 23046 | 284 |
HLA-A*02:06 | LQSYGFQPT | LRSYGFRPT | 339 | 27440 |
HLA-B*15:03 | QSYGFQPTNG | RSYGFRPTYG | 16794 | 211 |
HLA-A*33:03 | FNCYFPLQSYGFQ | FNCYFPLRSYGFR | 23280 | 295 |
HLA-C*12:03 | LQSYGFQPTN | LRSYGFRPTY | 26641 | 344 |
HLA-C*07:01 | QSYGFQPTN | RSYGFRPTY | 29907 | 403 |
HLA-A*29:02 | LQSYGFQPTN | LRSYGFRPTY | 28458 | 387 |
HLA-A*11:01 | EGFNCYFPLQ | AGFNCYFPLR | 25719 | 362 |
HLA-A*30:02 | QSYGFQPTNG | RSYGFRPTYG | 9959 | 143 |
HLA-B*15:03 | LQSYGFQPTN | LRSYGFRPTY | 2045 | 30 |
HLA-A*30:02 | PLQSYGFQPTN | PLRSYGFRPTY | 26291 | 402 |
HLA-A*29:02 | CYFPLQSYGFQPTN | CYFPLRSYGFRPTY | 27182 | 428 |
HLA-C*14:02 | CYFPLQSYGFQPTN | CYFPLRSYGFRPTY | 24158 | 394 |
HLA-A*31:01 | FNCYFPLQSYGFQ | FNCYFPLRSYGFR | 23471 | 389 |
HLA-A*33:03 | GVEGFNCYFPLQ | GVAGFNCYFPLR | 24534 | 414 |
HLA-A*30:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 18743 | 328 |
HLA-A*33:03 | NGVEGFNCYFPLQ | NGVAGFNCYFPLR | 23008 | 416 |
HLA-A*30:02 | FPLQSYGFQPTN | FPLRSYGFRPTY | 21475 | 393 |
HLA-A*68:01 | YFPLQSYGFQ | YFPLRSYGFR | 14480 | 280 |
HLA-B*58:01 | QSYGFQPTN | RSYGFRPTY | 1532 | 30 |
HLA-A*33:03 | EGFNCYFPLQ | AGFNCYFPLR | 7445 | 148 |
HLA-B*15:03 | LQSYGFQPT | LRSYGFRPT | 138 | 6040 |
HLA-A*31:01 | CYFPLQSYGFQP | CYFPLRSYGFRP | 17123 | 405 |
HLA-B*27:05 | LQSYGFQPTNGV | LRSYGFRPTYGV | 17291 | 480 |
HLA-A*30:01 | QSYGFQPTNGV | RSYGFRPTYGV | 5404 | 152 |
HLA-A*30:01 | QSYGFQPTNGVG | RSYGFRPTYGVG | 11201 | 316 |
HLA-A*30:01 | LQSYGFQPTN | LRSYGFRPTY | 9833 | 373 |
HLA-B*15:01 | LQSYGFQPTN | LRSYGFRPTY | 6135 | 249 |
HLA-A*32:01 | QSYGFQPTNGV | RSYGFRPTYGV | 10242 | 485 |
HLA-A*68:01 | EGFNCYFPLQ | AGFNCYFPLR | 5231 | 331 |
HLA-A*02:06 | LQSYGFQPTNGV | LRSYGFRPTYGV | 249 | 3135 |
HLA-B*57:01 | LQSYGFQPTN | LRSYGFRPTY | 3839 | 339 |
HLA-B*08:01 | FPLQSYGF | FPLRSYGF | 3941 | 395 |
HLA-A*02:11 | QSYGFQPTNGV | RSYGFRPTYGV | 2666 | 268 |
HLA-A*30:02 | EGFNCYFPLQSY | AGFNCYFPLRSY | 1806 | 189 |
HLA-C*15:02 | QSYGFQPTNGV | RSYGFRPTYGV | 2452 | 362 |
HLA-A*02:06 | QSYGFQPTNGV | RSYGFRPTYGV | 1121 | 176 |
HLA-A*68:02 | QSYGFQPTNGV | RSYGFRPTYGV | 122 | 633 |
HLA-A*30:02 | QSYGFQPTNGVGY | RSYGFRPTYGVGH | 258 | 1311 |
HLA-B*58:01 | QSYGFQPTNG | RSYGFRPTYG | 2069 | 475 |
HLA-B*35:01 | NCYFPLQSY | NCYFPLRSY | 330 | 1198 |
HLA-B*42:01 | FPLQSYGF | FPLRSYGF | 551 | 178 |
HLA-B*35:01 | FPLQSYGF | FPLRSYGF | 197 | 450 |
HLA-C*07:02 | YFPLQSYGF | YFPLRSYGF | 447 | 217 |
HLA-B*53:01 | FPLQSYGF | FPLRSYGF | 323 | 665 |
Reference YQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPAT
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated YQAGNKPCNGVAGFNCYFPLRSYGFRPTYGVGHQPYRVVVLSFELLHAPAT
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*15:03 | QSYGFQPTN | RSYGFRPTY | 6543 | 5 |
HLA-C*16:01 | QSYGFQPTN | RSYGFRPTY | 10868 | 9 |
HLA-C*03:02 | QSYGFQPTN | RSYGFRPTY | 12903 | 11 |
HLA-A*32:01 | QSYGFQPTN | RSYGFRPTY | 16619 | 17 |
HLA-C*12:03 | QSYGFQPTN | RSYGFRPTY | 12696 | 21 |
HLA-A*30:02 | QSYGFQPTN | RSYGFRPTY | 5297 | 10 |
HLA-A*29:02 | QSYGFQPTN | RSYGFRPTY | 26152 | 55 |
HLA-A*31:01 | CYFPLQSYGFQ | CYFPLRSYGFR | 8535 | 18 |
HLA-A*33:03 | YFPLQSYGFQ | YFPLRSYGFR | 11148 | 26 |
HLA-A*29:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 19514 | 51 |
HLA-A*31:01 | YFPLQSYGFQ | YFPLRSYGFR | 16290 | 49 |
HLA-A*33:03 | CYFPLQSYGFQ | CYFPLRSYGFR | 11311 | 35 |
HLA-C*14:02 | SYGFQPTN | SYGFRPTY | 20230 | 66 |
HLA-A*33:03 | FPLQSYGFQ | FPLRSYGFR | 23527 | 81 |
HLA-B*15:01 | QSYGFQPTN | RSYGFRPTY | 21529 | 75 |
HLA-C*14:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 18230 | 74 |
HLA-C*14:02 | QSYGFQPTN | RSYGFRPTY | 25941 | 110 |
HLA-B*35:01 | FPLQSYGFQPTN | FPLRSYGFRPTY | 8715 | 39 |
HLA-C*03:02 | FPLQSYGFQPTN | FPLRSYGFRPTY | 23840 | 111 |
HLA-C*12:02 | QSYGFQPTN | RSYGFRPTY | 21029 | 102 |
HLA-A*03:01 | QSYGFQPTN | RSYGFRPTY | 24499 | 125 |
HLA-A*11:01 | QSYGFQPTN | RSYGFRPTY | 22068 | 116 |
HLA-B*27:05 | LQSYGFQPTN | LRSYGFRPTY | 22303 | 124 |
HLA-B*15:01 | FQPTNGVGY | FRPTYGVGH | 166 | 29043 |
HLA-C*03:02 | LQSYGFQPTN | LRSYGFRPTY | 23421 | 138 |
HLA-A*30:01 | QSYGFQPTN | RSYGFRPTY | 3720 | 22 |
HLA-C*02:02 | QSYGFQPTN | RSYGFRPTY | 26598 | 166 |
HLA-C*02:10 | QSYGFQPTN | RSYGFRPTY | 26598 | 166 |
HLA-A*31:01 | NCYFPLQSYGFQ | NCYFPLRSYGFR | 21321 | 135 |
HLA-C*03:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 27639 | 176 |
HLA-A*30:01 | QSYGFQPTNG | RSYGFRPTYG | 4998 | 34 |
HLA-C*16:01 | LQSYGFQPTN | LRSYGFRPTY | 27149 | 185 |
HLA-B*15:01 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 180 | 26350 |
HLA-A*30:02 | LQSYGFQPTN | LRSYGFRPTY | 7508 | 53 |
HLA-B*15:03 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 113 | 13480 |
HLA-C*16:01 | FPLQSYGFQPTN | FPLRSYGFRPTY | 27733 | 235 |
HLA-A*33:03 | NCYFPLQSYGFQ | NCYFPLRSYGFR | 22134 | 197 |
HLA-B*15:03 | FPLQSYGFQPTN | FPLRSYGFRPTY | 20159 | 184 |
HLA-A*68:01 | FPLQSYGFQ | FPLRSYGFR | 17691 | 164 |
HLA-B*15:03 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 22168 | 209 |
HLA-B*57:01 | QSYGFQPTN | RSYGFRPTY | 4070 | 39 |
HLA-B*15:03 | FQPTNGVGY | FRPTYGVGH | 63 | 6390 |
HLA-A*29:02 | GFQPTNGVGY | GFRPTYGVGH | 188 | 18753 |
HLA-C*16:01 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 29358 | 304 |
HLA-C*12:03 | FPLQSYGFQPTN | FPLRSYGFRPTY | 27893 | 295 |
HLA-A*31:01 | QSYGFQPTN | RSYGFRPTY | 23046 | 284 |
HLA-A*02:06 | LQSYGFQPT | LRSYGFRPT | 339 | 27440 |
HLA-B*15:03 | QSYGFQPTNG | RSYGFRPTYG | 16794 | 211 |
HLA-A*33:03 | FNCYFPLQSYGFQ | FNCYFPLRSYGFR | 23280 | 295 |
HLA-C*12:03 | LQSYGFQPTN | LRSYGFRPTY | 26641 | 344 |
HLA-C*07:01 | QSYGFQPTN | RSYGFRPTY | 29907 | 403 |
HLA-A*29:02 | LQSYGFQPTN | LRSYGFRPTY | 28458 | 387 |
HLA-A*30:02 | QSYGFQPTNG | RSYGFRPTYG | 9959 | 143 |
HLA-B*15:03 | LQSYGFQPTN | LRSYGFRPTY | 2045 | 30 |
HLA-A*30:02 | PLQSYGFQPTN | PLRSYGFRPTY | 26291 | 402 |
HLA-A*29:02 | CYFPLQSYGFQPTN | CYFPLRSYGFRPTY | 27182 | 428 |
HLA-C*14:02 | CYFPLQSYGFQPTN | CYFPLRSYGFRPTY | 24158 | 394 |
HLA-A*31:01 | FNCYFPLQSYGFQ | FNCYFPLRSYGFR | 23471 | 389 |
HLA-A*30:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 18743 | 328 |
HLA-A*30:02 | FPLQSYGFQPTN | FPLRSYGFRPTY | 21475 | 393 |
HLA-A*68:01 | YFPLQSYGFQ | YFPLRSYGFR | 14480 | 280 |
HLA-B*58:01 | QSYGFQPTN | RSYGFRPTY | 1532 | 30 |
HLA-B*15:03 | LQSYGFQPT | LRSYGFRPT | 138 | 6040 |
HLA-A*31:01 | CYFPLQSYGFQP | CYFPLRSYGFRP | 17123 | 405 |
HLA-B*15:01 | FQPTNGVGYQPY | FRPTYGVGHQPY | 290 | 11634 |
HLA-B*27:05 | LQSYGFQPTNGV | LRSYGFRPTYGV | 17291 | 480 |
HLA-A*30:01 | QSYGFQPTNGV | RSYGFRPTYGV | 5404 | 152 |
HLA-A*30:01 | QSYGFQPTNGVG | RSYGFRPTYGVG | 11201 | 316 |
HLA-B*15:03 | YGFQPTNGVGY | YGFRPTYGVGH | 368 | 10641 |
HLA-A*30:02 | GFQPTNGVGY | GFRPTYGVGH | 169 | 4730 |
HLA-A*30:01 | LQSYGFQPTN | LRSYGFRPTY | 9833 | 373 |
HLA-B*15:01 | LQSYGFQPTN | LRSYGFRPTY | 6135 | 249 |
HLA-A*32:01 | QSYGFQPTNGV | RSYGFRPTYGV | 10242 | 485 |
HLA-C*07:02 | FQPTNGVGYQPY | FRPTYGVGHQPY | 6169 | 356 |
HLA-A*02:06 | LQSYGFQPTNGV | LRSYGFRPTYGV | 249 | 3135 |
HLA-B*57:01 | LQSYGFQPTN | LRSYGFRPTY | 3839 | 339 |
HLA-A*02:11 | QSYGFQPTNGV | RSYGFRPTYGV | 2666 | 268 |
HLA-C*14:02 | FQPTNGVGYQPY | FRPTYGVGHQPY | 3107 | 366 |
HLA-C*15:02 | QSYGFQPTNGV | RSYGFRPTYGV | 2452 | 362 |
HLA-B*15:03 | FQPTNGVGYQPY | FRPTYGVGHQPY | 183 | 1236 |
HLA-A*31:01 | QPTNGVGYQPYR | RPTYGVGHQPYR | 3100 | 478 |
HLA-A*02:06 | QSYGFQPTNGV | RSYGFRPTYGV | 1121 | 176 |
HLA-A*23:01 | SYGFQPTNGV | SYGFRPTYGV | 2697 | 483 |
HLA-A*02:11 | YGFQPTNGV | YGFRPTYGV | 307 | 59 |
HLA-A*68:02 | QSYGFQPTNGV | RSYGFRPTYGV | 122 | 633 |
HLA-A*30:02 | QSYGFQPTNGVGY | RSYGFRPTYGVGH | 258 | 1311 |
HLA-B*58:01 | QSYGFQPTNG | RSYGFRPTYG | 2069 | 475 |
HLA-A*02:02 | YGFQPTNGV | YGFRPTYGV | 868 | 281 |
HLA-A*31:01 | GFQPTNGVGYQPYR | GFRPTYGVGHQPYR | 616 | 201 |
HLA-A*02:06 | YGFQPTNGV | YGFRPTYGV | 174 | 61 |
HLA-A*68:02 | YGFQPTNGV | YGFRPTYGV | 73 | 26 |
HLA-C*12:03 | YGFQPTNGV | YGFRPTYGV | 127 | 355 |
Reference GSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCG
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GNKPCNGVAGFNCYFPLRSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCG
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*15:03 | QSYGFQPTN | RSYGFRPTY | 6543 | 5 |
HLA-C*16:01 | QSYGFQPTN | RSYGFRPTY | 10868 | 9 |
HLA-C*03:02 | QSYGFQPTN | RSYGFRPTY | 12903 | 11 |
HLA-A*32:01 | QSYGFQPTN | RSYGFRPTY | 16619 | 17 |
HLA-C*12:03 | QSYGFQPTN | RSYGFRPTY | 12696 | 21 |
HLA-A*30:02 | QSYGFQPTN | RSYGFRPTY | 5297 | 10 |
HLA-A*29:02 | QSYGFQPTN | RSYGFRPTY | 26152 | 55 |
HLA-A*29:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 19514 | 51 |
HLA-C*14:02 | TNGVGYQPY | TYGVGHQPY | 5468 | 16 |
HLA-C*14:02 | SYGFQPTN | SYGFRPTY | 20230 | 66 |
HLA-B*15:01 | QSYGFQPTN | RSYGFRPTY | 21529 | 75 |
HLA-C*14:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 18230 | 74 |
HLA-C*14:02 | QSYGFQPTN | RSYGFRPTY | 25941 | 110 |
HLA-B*35:01 | FPLQSYGFQPTN | FPLRSYGFRPTY | 8715 | 39 |
HLA-C*03:02 | FPLQSYGFQPTN | FPLRSYGFRPTY | 23840 | 111 |
HLA-C*12:02 | QSYGFQPTN | RSYGFRPTY | 21029 | 102 |
HLA-A*03:01 | QSYGFQPTN | RSYGFRPTY | 24499 | 125 |
HLA-A*11:01 | QSYGFQPTN | RSYGFRPTY | 22068 | 116 |
HLA-B*27:05 | LQSYGFQPTN | LRSYGFRPTY | 22303 | 124 |
HLA-B*15:01 | FQPTNGVGY | FRPTYGVGH | 166 | 29043 |
HLA-C*03:02 | LQSYGFQPTN | LRSYGFRPTY | 23421 | 138 |
HLA-A*30:01 | QSYGFQPTN | RSYGFRPTY | 3720 | 22 |
HLA-C*02:02 | QSYGFQPTN | RSYGFRPTY | 26598 | 166 |
HLA-C*02:10 | QSYGFQPTN | RSYGFRPTY | 26598 | 166 |
HLA-C*03:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 27639 | 176 |
HLA-A*30:01 | QSYGFQPTNG | RSYGFRPTYG | 4998 | 34 |
HLA-C*16:01 | LQSYGFQPTN | LRSYGFRPTY | 27149 | 185 |
HLA-B*15:01 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 180 | 26350 |
HLA-A*30:02 | LQSYGFQPTN | LRSYGFRPTY | 7508 | 53 |
HLA-B*15:03 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 113 | 13480 |
HLA-C*16:01 | FPLQSYGFQPTN | FPLRSYGFRPTY | 27733 | 235 |
HLA-B*15:03 | FPLQSYGFQPTN | FPLRSYGFRPTY | 20159 | 184 |
HLA-B*15:03 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 22168 | 209 |
HLA-B*57:01 | QSYGFQPTN | RSYGFRPTY | 4070 | 39 |
HLA-B*15:03 | FQPTNGVGY | FRPTYGVGH | 63 | 6390 |
HLA-A*29:02 | GFQPTNGVGY | GFRPTYGVGH | 188 | 18753 |
HLA-C*16:01 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 29358 | 304 |
HLA-C*12:03 | FPLQSYGFQPTN | FPLRSYGFRPTY | 27893 | 295 |
HLA-A*31:01 | QSYGFQPTN | RSYGFRPTY | 23046 | 284 |
HLA-B*15:03 | QSYGFQPTNG | RSYGFRPTYG | 16794 | 211 |
HLA-C*12:03 | LQSYGFQPTN | LRSYGFRPTY | 26641 | 344 |
HLA-C*07:01 | QSYGFQPTN | RSYGFRPTY | 29907 | 403 |
HLA-A*29:02 | LQSYGFQPTN | LRSYGFRPTY | 28458 | 387 |
HLA-A*30:02 | QSYGFQPTNG | RSYGFRPTYG | 9959 | 143 |
HLA-B*15:03 | LQSYGFQPTN | LRSYGFRPTY | 2045 | 30 |
HLA-A*30:02 | PLQSYGFQPTN | PLRSYGFRPTY | 26291 | 402 |
HLA-A*29:02 | CYFPLQSYGFQPTN | CYFPLRSYGFRPTY | 27182 | 428 |
HLA-C*14:02 | CYFPLQSYGFQPTN | CYFPLRSYGFRPTY | 24158 | 394 |
HLA-A*30:02 | YFPLQSYGFQPTN | YFPLRSYGFRPTY | 18743 | 328 |
HLA-A*30:02 | FPLQSYGFQPTN | FPLRSYGFRPTY | 21475 | 393 |
HLA-B*58:01 | QSYGFQPTN | RSYGFRPTY | 1532 | 30 |
HLA-B*15:01 | FQPTNGVGYQPY | FRPTYGVGHQPY | 290 | 11634 |
HLA-B*27:05 | LQSYGFQPTNGV | LRSYGFRPTYGV | 17291 | 480 |
HLA-A*30:01 | QSYGFQPTNGV | RSYGFRPTYGV | 5404 | 152 |
HLA-A*30:01 | QSYGFQPTNGVG | RSYGFRPTYGVG | 11201 | 316 |
HLA-C*03:02 | NGVGYQPY | YGVGHQPY | 10463 | 322 |
HLA-B*15:03 | YGFQPTNGVGY | YGFRPTYGVGH | 368 | 10641 |
HLA-A*30:02 | GFQPTNGVGY | GFRPTYGVGH | 169 | 4730 |
HLA-A*30:01 | LQSYGFQPTN | LRSYGFRPTY | 9833 | 373 |
HLA-B*15:01 | LQSYGFQPTN | LRSYGFRPTY | 6135 | 249 |
HLA-A*32:01 | QSYGFQPTNGV | RSYGFRPTYGV | 10242 | 485 |
HLA-C*16:01 | NGVGYQPY | YGVGHQPY | 8669 | 488 |
HLA-C*07:02 | FQPTNGVGYQPY | FRPTYGVGHQPY | 6169 | 356 |
HLA-A*02:06 | LQSYGFQPTNGV | LRSYGFRPTYGV | 249 | 3135 |
HLA-A*02:11 | NGVGYQPYRV | YGVGHQPYRV | 5989 | 500 |
HLA-B*57:01 | LQSYGFQPTN | LRSYGFRPTY | 3839 | 339 |
HLA-B*15:03 | NGVGYQPY | YGVGHQPY | 4677 | 418 |
HLA-A*02:11 | QSYGFQPTNGV | RSYGFRPTYGV | 2666 | 268 |
HLA-C*14:02 | FQPTNGVGYQPY | FRPTYGVGHQPY | 3107 | 366 |
HLA-A*29:02 | TNGVGYQPY | TYGVGHQPY | 2031 | 243 |
HLA-A*31:01 | TNGVGYQPYR | TYGVGHQPYR | 811 | 103 |
HLA-A*33:03 | TNGVGYQPYR | TYGVGHQPYR | 573 | 79 |
HLA-C*15:02 | QSYGFQPTNGV | RSYGFRPTYGV | 2452 | 362 |
HLA-B*15:03 | FQPTNGVGYQPY | FRPTYGVGHQPY | 183 | 1236 |
HLA-A*31:01 | QPTNGVGYQPYR | RPTYGVGHQPYR | 3100 | 478 |
HLA-A*02:06 | QSYGFQPTNGV | RSYGFRPTYGV | 1121 | 176 |
HLA-A*23:01 | SYGFQPTNGV | SYGFRPTYGV | 2697 | 483 |
HLA-A*02:11 | YGFQPTNGV | YGFRPTYGV | 307 | 59 |
HLA-A*68:02 | QSYGFQPTNGV | RSYGFRPTYGV | 122 | 633 |
HLA-A*30:02 | QSYGFQPTNGVGY | RSYGFRPTYGVGH | 258 | 1311 |
HLA-B*58:01 | QSYGFQPTNG | RSYGFRPTYG | 2069 | 475 |
HLA-A*68:01 | PTNGVGYQPYR | PTYGVGHQPYR | 1073 | 303 |
HLA-A*33:03 | PTNGVGYQPYR | PTYGVGHQPYR | 1345 | 417 |
HLA-A*02:02 | YGFQPTNGV | YGFRPTYGV | 868 | 281 |
HLA-A*31:01 | GFQPTNGVGYQPYR | GFRPTYGVGHQPYR | 616 | 201 |
HLA-A*29:02 | PTNGVGYQPY | PTYGVGHQPY | 1211 | 401 |
HLA-A*31:01 | PTNGVGYQPYR | PTYGVGHQPYR | 1377 | 470 |
HLA-A*02:06 | YGFQPTNGV | YGFRPTYGV | 174 | 61 |
HLA-A*68:01 | TNGVGYQPYR | TYGVGHQPYR | 263 | 740 |
HLA-A*68:02 | YGFQPTNGV | YGFRPTYGV | 73 | 26 |
HLA-C*12:03 | YGFQPTNGV | YGFRPTYGV | 127 | 355 |
HLA-A*30:02 | PTNGVGYQPY | PTYGVGHQPY | 465 | 205 |
HLA-A*31:01 | NGVGYQPYR | YGVGHQPYR | 438 | 207 |
Reference CNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKS
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated CNGVAGFNCYFPLRSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKS
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-C*14:02 | TNGVGYQPY | TYGVGHQPY | 5468 | 16 |
HLA-B*15:01 | FQPTNGVGY | FRPTYGVGH | 166 | 29043 |
HLA-B*15:01 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 180 | 26350 |
HLA-B*15:03 | LQSYGFQPTNGVGY | LRSYGFRPTYGVGH | 113 | 13480 |
HLA-B*15:03 | FQPTNGVGY | FRPTYGVGH | 63 | 6390 |
HLA-A*29:02 | GFQPTNGVGY | GFRPTYGVGH | 188 | 18753 |
HLA-C*14:02 | GYQPYRVVV | GHQPYRVVV | 78 | 3539 |
HLA-B*15:01 | FQPTNGVGYQPY | FRPTYGVGHQPY | 290 | 11634 |
HLA-C*03:02 | NGVGYQPY | YGVGHQPY | 10463 | 322 |
HLA-A*24:02 | GYQPYRVVVLSF | GHQPYRVVVLSF | 220 | 6955 |
HLA-A*23:01 | GYQPYRVVVLSF | GHQPYRVVVLSF | 107 | 3241 |
HLA-B*15:03 | YGFQPTNGVGY | YGFRPTYGVGH | 368 | 10641 |
HLA-A*30:02 | GFQPTNGVGY | GFRPTYGVGH | 169 | 4730 |
HLA-C*14:02 | GYQPYRVVVL | GHQPYRVVVL | 213 | 4430 |
HLA-C*14:02 | VGYQPYRVVV | VGHQPYRVVV | 413 | 7561 |
HLA-C*16:01 | NGVGYQPY | YGVGHQPY | 8669 | 488 |
HLA-C*07:02 | FQPTNGVGYQPY | FRPTYGVGHQPY | 6169 | 356 |
HLA-A*02:11 | YQPYRVVVL | HQPYRVVVL | 332 | 4009 |
HLA-A*02:11 | NGVGYQPYRV | YGVGHQPYRV | 5989 | 500 |
HLA-B*15:03 | NGVGYQPY | YGVGHQPY | 4677 | 418 |
HLA-A*02:06 | YQPYRVVVL | HQPYRVVVL | 223 | 2206 |
HLA-C*14:02 | FQPTNGVGYQPY | FRPTYGVGHQPY | 3107 | 366 |
HLA-A*29:02 | TNGVGYQPY | TYGVGHQPY | 2031 | 243 |
HLA-A*31:01 | TNGVGYQPYR | TYGVGHQPYR | 811 | 103 |
HLA-A*02:02 | YQPYRVVVL | HQPYRVVVL | 360 | 2683 |
HLA-A*33:03 | TNGVGYQPYR | TYGVGHQPYR | 573 | 79 |
HLA-B*15:03 | FQPTNGVGYQPY | FRPTYGVGHQPY | 183 | 1236 |
HLA-A*31:01 | QPTNGVGYQPYR | RPTYGVGHQPYR | 3100 | 478 |
HLA-C*01:02 | YQPYRVVVL | HQPYRVVVL | 41 | 241 |
HLA-A*02:06 | YQPYRVVVLSFEL | HQPYRVVVLSFEL | 430 | 2495 |
HLA-C*03:03 | YQPYRVVVL | HQPYRVVVL | 410 | 2128 |
HLA-C*03:04 | YQPYRVVVL | HQPYRVVVL | 410 | 2128 |
HLA-A*30:02 | QSYGFQPTNGVGY | RSYGFRPTYGVGH | 258 | 1311 |
HLA-C*07:02 | YQPYRVVVL | HQPYRVVVL | 135 | 590 |
HLA-C*12:03 | YQPYRVVVL | HQPYRVVVL | 132 | 555 |
HLA-A*68:01 | PTNGVGYQPYR | PTYGVGHQPYR | 1073 | 303 |
HLA-C*14:02 | YQPYRVVVL | HQPYRVVVL | 102 | 347 |
HLA-C*16:01 | YQPYRVVVL | HQPYRVVVL | 214 | 726 |
HLA-A*33:03 | PTNGVGYQPYR | PTYGVGHQPYR | 1345 | 417 |
HLA-A*31:01 | GFQPTNGVGYQPYR | GFRPTYGVGHQPYR | 616 | 201 |
HLA-A*29:02 | PTNGVGYQPY | PTYGVGHQPY | 1211 | 401 |
HLA-C*12:03 | VGYQPYRVV | VGHQPYRVV | 398 | 1196 |
HLA-A*31:01 | PTNGVGYQPYR | PTYGVGHQPYR | 1377 | 470 |
HLA-A*68:01 | TNGVGYQPYR | TYGVGHQPYR | 263 | 740 |
HLA-A*23:01 | YQPYRVVVLSF | HQPYRVVVLSF | 465 | 1280 |
HLA-A*30:02 | PTNGVGYQPY | PTYGVGHQPY | 465 | 205 |
HLA-A*31:01 | NGVGYQPYR | YGVGHQPYR | 438 | 207 |
Reference PCSFGGVSVITPGTNTSNQVAVLYQDVNCTEVPVAIHADQLTPTWRVYSTG
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated PCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVPVAIHADQLTPTWRVYSTG
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-C*05:01 | YQDVNCTEV | YQGVNCTEV | 82 | 8597 |
HLA-C*08:02 | YQDVNCTEV | YQGVNCTEV | 89 | 8066 |
HLA-A*02:11 | DVNCTEVPV | GVNCTEVPV | 2140 | 72 |
HLA-A*02:02 | DVNCTEVPV | GVNCTEVPV | 4099 | 213 |
HLA-A*68:02 | DVNCTEVPV | GVNCTEVPV | 36 | 659 |
HLA-A*02:06 | DVNCTEVPV | GVNCTEVPV | 3807 | 208 |
HLA-A*68:02 | QVAVLYQDV | QVAVLYQGV | 183 | 13 |
HLA-A*68:02 | NQVAVLYQDV | NQVAVLYQGV | 650 | 52 |
HLA-A*02:06 | QVAVLYQDV | QVAVLYQGV | 1312 | 148 |
HLA-A*02:11 | QVAVLYQDV | QVAVLYQGV | 2169 | 268 |
HLA-A*68:02 | NTSNQVAVLYQDV | NTSNQVAVLYQGV | 1858 | 231 |
HLA-A*68:02 | TSNQVAVLYQDV | TSNQVAVLYQGV | 3281 | 457 |
HLA-A*02:02 | QVAVLYQDV | QVAVLYQGV | 1107 | 188 |
HLA-A*02:01 | YQDVNCTEV | YQGVNCTEV | 75 | 315 |
HLA-A*02:06 | YQDVNCTEV | YQGVNCTEV | 17 | 57 |
HLA-A*02:11 | VLYQDVNCT | VLYQGVNCT | 224 | 74 |
HLA-A*02:11 | YQDVNCTEV | YQGVNCTEV | 31 | 93 |
HLA-A*02:11 | VLYQDVNCTEVP | VLYQGVNCTEVP | 1000 | 402 |
HLA-A*02:02 | NQVAVLYQDV | NQVAVLYQGV | 269 | 116 |
HLA-A*02:11 | AVLYQDVNCTEV | AVLYQGVNCTEV | 500 | 238 |
HLA-A*02:01 | NQVAVLYQDV | NQVAVLYQGV | 558 | 267 |
HLA-A*02:06 | NQVAVLYQDV | NQVAVLYQGV | 36 | 18 |
Reference TPTWRVYSTGSNVFQTRAGCLIGAEHVNNSYECDIPIGAGICASYQTQTNS
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated TPTWRVYSTGSNVFQTRAGCLIGAEYVNNSYECDIPIGAGICASYQTQTKS
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*15:01 | RAGCLIGAEH | RAGCLIGAEY | 7377 | 156 |
HLA-A*30:02 | RAGCLIGAEH | RAGCLIGAEY | 1881 | 43 |
HLA-B*15:01 | FQTRAGCLIGAEH | FQTRAGCLIGAEY | 7512 | 178 |
HLA-B*15:03 | FQTRAGCLIGAEH | FQTRAGCLIGAEY | 5076 | 125 |
HLA-A*30:02 | AGCLIGAEH | AGCLIGAEY | 5331 | 179 |
HLA-B*15:03 | RAGCLIGAEH | RAGCLIGAEY | 5254 | 179 |
HLA-A*30:02 | QTRAGCLIGAEH | QTRAGCLIGAEY | 8425 | 342 |
HLA-B*15:03 | AGCLIGAEH | AGCLIGAEY | 9025 | 461 |
HLA-A*02:11 | HVNNSYECDIPI | YVNNSYECDIPI | 1593 | 109 |
HLA-A*02:01 | HVNNSYECDIPI | YVNNSYECDIPI | 2384 | 226 |
HLA-A*02:06 | HVNNSYECDIPI | YVNNSYECDIPI | 837 | 92 |
HLA-A*02:02 | HVNNSYECDIPI | YVNNSYECDIPI | 1466 | 187 |
HLA-A*02:11 | CLIGAEHV | CLIGAEYV | 983 | 221 |
HLA-B*15:03 | AEHVNNSY | AEYVNNSY | 986 | 267 |
HLA-B*18:01 | AEHVNNSY | AEYVNNSY | 902 | 286 |
Reference EHVNNSYECDIPIGAGICASYQTQTNSPRRARSVASQSIIAYTMSLGAENS
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated EYVNNSYECDIPIGAGICASYQTQTKSHRRARSVASQSIIAYTMSLGAENS
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*30:01 | NSPRRARSV | KSHRRARSV | 7195 | 22 |
HLA-A*68:01 | CASYQTQTN | CASYQTQTK | 28102 | 123 |
HLA-B*07:02 | TNSPRRARSVA | TKSHRRARSVA | 125 | 19196 |
HLA-B*07:02 | NSPRRARSVA | KSHRRARSVA | 69 | 5330 |
HLA-A*11:01 | CASYQTQTN | CASYQTQTK | 32767 | 431 |
HLA-B*07:02 | TQTNSPRRARSVA | TQTKSHRRARSVA | 270 | 17591 |
HLA-B*07:02 | QTNSPRRARSVA | QTKSHRRARSVA | 249 | 13621 |
HLA-B*42:01 | TNSPRRARSVA | TKSHRRARSVA | 437 | 22045 |
HLA-B*42:01 | NSPRRARSVA | KSHRRARSVA | 217 | 9050 |
HLA-A*30:01 | NSPRRARSVAS | KSHRRARSVAS | 4546 | 185 |
HLA-A*30:01 | NSPRRARSVA | KSHRRARSVA | 630 | 27 |
HLA-C*15:02 | NSPRRARSV | KSHRRARSV | 4094 | 215 |
HLA-A*68:01 | QTNSPRRAR | QTKSHRRAR | 95 | 1735 |
HLA-C*14:02 | SYQTQTNSP | SYQTQTKSH | 3691 | 214 |
HLA-A*68:01 | TQTNSPRRAR | TQTKSHRRAR | 254 | 4244 |
HLA-A*68:01 | CASYQTQTNSPR | CASYQTQTKSHR | 142 | 713 |
HLA-C*16:01 | NSPRRARSV | KSHRRARSV | 1247 | 297 |
HLA-A*11:01 | ASYQTQTNSPR | ASYQTQTKSHR | 346 | 1426 |
HLA-A*31:01 | QTQTNSPRR | QTQTKSHRR | 355 | 96 |
HLA-A*33:03 | YQTQTNSPRR | YQTQTKSHRR | 967 | 273 |
HLA-A*33:03 | YQTQTNSPRRAR | YQTQTKSHRRAR | 306 | 1077 |
HLA-A*31:01 | YQTQTNSPRR | YQTQTKSHRR | 965 | 276 |
HLA-A*33:03 | TQTNSPRRAR | TQTKSHRRAR | 195 | 659 |
HLA-A*33:03 | QTQTNSPRR | QTQTKSHRR | 445 | 143 |
HLA-A*31:01 | ASYQTQTNSPRR | ASYQTQTKSHRR | 433 | 144 |
HLA-A*33:03 | QTNSPRRAR | QTKSHRRAR | 48 | 144 |
HLA-A*30:01 | QTNSPRRAR | QTKSHRRAR | 1146 | 463 |
HLA-A*31:01 | YQTQTNSPRRAR | YQTQTKSHRRAR | 317 | 771 |
HLA-A*31:01 | SYQTQTNSPR | SYQTQTKSHR | 62 | 147 |
HLA-A*33:03 | SYQTQTNSPR | SYQTQTKSHR | 130 | 304 |
HLA-A*31:01 | TQTNSPRRAR | TQTKSHRRAR | 144 | 336 |
HLA-A*31:01 | QTNSPRRAR | QTKSHRRAR | 34 | 79 |
HLA-A*31:01 | ASYQTQTNSPR | ASYQTQTKSHR | 139 | 315 |
HLA-A*31:01 | YQTQTNSPR | YQTQTKSHR | 441 | 982 |
HLA-A*31:01 | SYQTQTNSPRRAR | SYQTQTKSHRRAR | 193 | 427 |
HLA-A*33:03 | SYQTQTNSPRRAR | SYQTQTKSHRRAR | 448 | 972 |
Reference VNNSYECDIPIGAGICASYQTQTNSPRRARSVASQSIIAYTMSLGAENSVA
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated VNNSYECDIPIGAGICASYQTQTKSHRRARSVASQSIIAYTMSLGAENSVA
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*07:02 | SPRRARSVA | SHRRARSVA | 4 | 4721 |
HLA-B*42:01 | SPRRARSVA | SHRRARSVA | 8 | 6169 |
HLA-B*07:02 | SPRRARSVASQSI | SHRRARSVASQSI | 17 | 11433 |
HLA-B*07:02 | SPRRARSV | SHRRARSV | 24 | 12728 |
HLA-B*07:02 | SPRRARSVAS | SHRRARSVAS | 37 | 14758 |
HLA-A*30:01 | NSPRRARSV | KSHRRARSV | 7195 | 22 |
HLA-B*07:02 | SPRRARSVASQSII | SHRRARSVASQSII | 55 | 17736 |
HLA-B*42:01 | SPRRARSV | SHRRARSV | 38 | 11622 |
HLA-B*42:01 | SPRRARSVASQSI | SHRRARSVASQSI | 48 | 14418 |
HLA-B*07:02 | TNSPRRARSVA | TKSHRRARSVA | 125 | 19196 |
HLA-B*42:01 | SPRRARSVAS | SHRRARSVAS | 158 | 17461 |
HLA-B*07:02 | NSPRRARSVA | KSHRRARSVA | 69 | 5330 |
HLA-B*42:01 | SPRRARSVASQSII | SHRRARSVASQSII | 321 | 21521 |
HLA-B*07:02 | TQTNSPRRARSVA | TQTKSHRRARSVA | 270 | 17591 |
HLA-B*07:02 | QTNSPRRARSVA | QTKSHRRARSVA | 249 | 13621 |
HLA-B*42:01 | TNSPRRARSVA | TKSHRRARSVA | 437 | 22045 |
HLA-B*42:01 | NSPRRARSVA | KSHRRARSVA | 217 | 9050 |
HLA-A*30:01 | NSPRRARSVAS | KSHRRARSVAS | 4546 | 185 |
HLA-A*30:01 | NSPRRARSVA | KSHRRARSVA | 630 | 27 |
HLA-C*15:02 | NSPRRARSV | KSHRRARSV | 4094 | 215 |
HLA-A*68:01 | QTNSPRRAR | QTKSHRRAR | 95 | 1735 |
HLA-C*14:02 | SYQTQTNSP | SYQTQTKSH | 3691 | 214 |
HLA-A*68:01 | TQTNSPRRAR | TQTKSHRRAR | 254 | 4244 |
HLA-B*08:01 | SPRRARSVA | SHRRARSVA | 372 | 3831 |
HLA-B*08:01 | SPRRARSV | SHRRARSV | 428 | 2448 |
HLA-A*68:01 | CASYQTQTNSPR | CASYQTQTKSHR | 142 | 713 |
HLA-C*16:01 | NSPRRARSV | KSHRRARSV | 1247 | 297 |
HLA-A*11:01 | ASYQTQTNSPR | ASYQTQTKSHR | 346 | 1426 |
HLA-A*31:01 | QTQTNSPRR | QTQTKSHRR | 355 | 96 |
HLA-A*33:03 | YQTQTNSPRR | YQTQTKSHRR | 967 | 273 |
HLA-A*33:03 | YQTQTNSPRRAR | YQTQTKSHRRAR | 306 | 1077 |
HLA-A*31:01 | YQTQTNSPRR | YQTQTKSHRR | 965 | 276 |
HLA-A*33:03 | TQTNSPRRAR | TQTKSHRRAR | 195 | 659 |
HLA-A*33:03 | QTQTNSPRR | QTQTKSHRR | 445 | 143 |
HLA-A*31:01 | ASYQTQTNSPRR | ASYQTQTKSHRR | 433 | 144 |
HLA-A*33:03 | QTNSPRRAR | QTKSHRRAR | 48 | 144 |
HLA-A*30:01 | QTNSPRRAR | QTKSHRRAR | 1146 | 463 |
HLA-A*31:01 | YQTQTNSPRRAR | YQTQTKSHRRAR | 317 | 771 |
HLA-A*31:01 | SYQTQTNSPR | SYQTQTKSHR | 62 | 147 |
HLA-A*33:03 | SYQTQTNSPR | SYQTQTKSHR | 130 | 304 |
HLA-A*31:01 | TQTNSPRRAR | TQTKSHRRAR | 144 | 336 |
HLA-A*31:01 | QTNSPRRAR | QTKSHRRAR | 34 | 79 |
HLA-A*31:01 | ASYQTQTNSPR | ASYQTQTKSHR | 139 | 315 |
HLA-A*31:01 | YQTQTNSPR | YQTQTKSHR | 441 | 982 |
HLA-A*31:01 | SYQTQTNSPRRAR | SYQTQTKSHRRAR | 193 | 427 |
HLA-A*33:03 | SYQTQTNSPRRAR | SYQTQTKSHRRAR | 448 | 972 |
Reference TMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated TMYICGDSTECSNLLLQYGSFCTQLKRALTGIAVEQDKNTQEVFAQVKQIY
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*03:02 | LLQYGSFCTQLN | LLQYGSFCTQLK | 29153 | 102 |
HLA-A*11:01 | LQYGSFCTQLN | LQYGSFCTQLK | 32767 | 191 |
HLA-A*03:01 | LQYGSFCTQLN | LQYGSFCTQLK | 28204 | 214 |
HLA-A*68:01 | YGSFCTQLN | YGSFCTQLK | 23773 | 187 |
HLA-A*03:02 | LQYGSFCTQLN | LQYGSFCTQLK | 31227 | 331 |
HLA-A*03:02 | LLLQYGSFCTQLN | LLLQYGSFCTQLK | 32767 | 377 |
HLA-A*11:01 | YGSFCTQLN | YGSFCTQLK | 32767 | 386 |
HLA-A*03:01 | LLQYGSFCTQLN | LLQYGSFCTQLK | 29424 | 350 |
HLA-A*03:01 | LLLQYGSFCTQLN | LLLQYGSFCTQLK | 32355 | 410 |
HLA-A*02:11 | QLNRALTGI | QLKRALTGI | 27 | 440 |
HLA-A*02:11 | FCTQLNRALTGI | FCTQLKRALTGI | 63 | 898 |
HLA-B*08:01 | CTQLNRAL | CTQLKRAL | 3325 | 279 |
HLA-A*02:01 | FCTQLNRALTGI | FCTQLKRALTGI | 493 | 4878 |
HLA-A*02:02 | FCTQLNRALTGI | FCTQLKRALTGI | 62 | 503 |
HLA-A*02:02 | QLNRALTGI | QLKRALTGI | 45 | 307 |
HLA-C*03:03 | FCTQLNRAL | FCTQLKRAL | 138 | 752 |
HLA-C*03:04 | FCTQLNRAL | FCTQLKRAL | 138 | 752 |
HLA-A*02:02 | TQLNRALTGI | TQLKRALTGI | 180 | 882 |
HLA-A*02:11 | TQLNRALTGI | TQLKRALTGI | 267 | 1284 |
HLA-B*27:05 | NRALTGIAV | KRALTGIAV | 1251 | 276 |
HLA-A*02:11 | QLNRALTGIAV | QLKRALTGIAV | 259 | 1123 |
HLA-C*03:02 | FCTQLNRAL | FCTQLKRAL | 361 | 1438 |
HLA-C*14:02 | SFCTQLNRAL | SFCTQLKRAL | 234 | 511 |
HLA-A*02:06 | TQLNRALTGI | TQLKRALTGI | 54 | 113 |
Reference AVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSFIEDL
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated AVEQDKNTQEVFAQVKQIYKTPPIKYFGGFNFSQILPDPSKPSKRSFIEDL
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*23:01 | KDFGGFNF | KYFGGFNF | 15419 | 23 |
HLA-A*23:01 | KDFGGFNFSQI | KYFGGFNFSQI | 15932 | 37 |
HLA-A*24:02 | KDFGGFNF | KYFGGFNF | 21008 | 55 |
HLA-C*14:02 | IYKTPPIKD | IYKTPPIKY | 16538 | 55 |
HLA-A*24:02 | KDFGGFNFSQI | KYFGGFNFSQI | 20251 | 68 |
HLA-B*15:03 | KQIYKTPPIKD | KQIYKTPPIKY | 7773 | 29 |
HLA-A*23:01 | KDFGGFNFSQIL | KYFGGFNFSQIL | 15831 | 63 |
HLA-C*14:02 | KDFGGFNF | KYFGGFNF | 22081 | 90 |
HLA-A*24:02 | KDFGGFNFSQIL | KYFGGFNFSQIL | 21565 | 126 |
HLA-B*15:01 | KQIYKTPPIKD | KQIYKTPPIKY | 22193 | 141 |
HLA-C*14:02 | KDFGGFNFSQIL | KYFGGFNFSQIL | 14873 | 165 |
HLA-A*30:01 | KDFGGFNFS | KYFGGFNFS | 9496 | 156 |
HLA-C*14:02 | DFGGFNFSQIL | YFGGFNFSQIL | 6960 | 139 |
HLA-A*30:02 | KQIYKTPPIKD | KQIYKTPPIKY | 15917 | 386 |
HLA-B*15:03 | VKQIYKTPPIKD | VKQIYKTPPIKY | 16977 | 446 |
HLA-B*15:03 | IKDFGGFNF | IKYFGGFNF | 97 | 4 |
HLA-B*15:03 | PIKDFGGFNF | PIKYFGGFNF | 7546 | 321 |
HLA-B*15:03 | TPPIKDFGGFNF | TPPIKYFGGFNF | 10071 | 484 |
HLA-B*15:03 | KTPPIKDFGGFNF | KTPPIKYFGGFNF | 6427 | 331 |
HLA-A*32:01 | KTPPIKDFGGFNF | KTPPIKYFGGFNF | 6031 | 381 |
HLA-A*23:01 | DFGGFNFSQI | YFGGFNFSQI | 5424 | 461 |
HLA-B*15:03 | YKTPPIKDFGGFNF | YKTPPIKYFGGFNF | 2588 | 394 |
HLA-C*06:02 | YKTPPIKDF | YKTPPIKYF | 2488 | 460 |
HLA-C*07:02 | YKTPPIKDF | YKTPPIKYF | 1804 | 378 |
HLA-A*23:01 | IYKTPPIKDF | IYKTPPIKYF | 273 | 98 |
HLA-A*24:02 | IYKTPPIKDF | IYKTPPIKYF | 375 | 147 |
HLA-C*14:02 | IYKTPPIKDF | IYKTPPIKYF | 341 | 158 |
HLA-B*15:03 | YKTPPIKDF | YKTPPIKYF | 92 | 43 |
Reference SAIGKIQDSLSSTASALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLND
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated SAIGKIQDSLSSTASALGKLQDVVNHNAQALNTLVKQLSSKFGAISSVLND
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*38:01 | NQNAQALNTL | NHNAQALNTL | 2805 | 97 |
HLA-A*68:02 | DVVNQNAQA | DVVNHNAQA | 703 | 344 |
Reference ALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDKVEAEVQID
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated ALGKLQDVVNHNAQALNTLVKQLSSKFGAISSVLNDILSRLDKVEAEVQID
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*03:01 | TLVKQLSSN | TLVKQLSSK | 29207 | 56 |
HLA-A*68:01 | NTLVKQLSSN | NTLVKQLSSK | 28063 | 86 |
HLA-A*11:01 | TLVKQLSSN | TLVKQLSSK | 32767 | 125 |
HLA-A*03:02 | TLVKQLSSN | TLVKQLSSK | 31915 | 131 |
HLA-A*11:01 | NTLVKQLSSN | NTLVKQLSSK | 32767 | 147 |
HLA-A*03:01 | ALNTLVKQLSSN | ALNTLVKQLSSK | 32767 | 154 |
HLA-A*03:02 | ALNTLVKQLSSN | ALNTLVKQLSSK | 32767 | 304 |
HLA-A*03:01 | NTLVKQLSSN | NTLVKQLSSK | 32767 | 482 |
HLA-A*68:02 | SNFGAISSV | SKFGAISSV | 117 | 5329 |
HLA-B*15:03 | SNFGAISSVL | SKFGAISSVL | 688 | 25 |
HLA-B*08:01 | QLSSNFGAI | QLSSKFGAI | 4755 | 265 |
HLA-C*15:02 | SNFGAISSV | SKFGAISSV | 374 | 5700 |
HLA-A*30:01 | SSNFGAISS | SSKFGAISS | 1320 | 88 |
HLA-B*15:03 | SNFGAISSV | SKFGAISSV | 727 | 49 |
HLA-A*30:01 | SSNFGAISSV | SSKFGAISSV | 587 | 71 |
HLA-A*02:06 | KQLSSNFGA | KQLSSKFGA | 62 | 269 |
HLA-A*02:01 | KQLSSNFGAI | KQLSSKFGAI | 407 | 1567 |
HLA-A*02:11 | KQLSSNFGA | KQLSSKFGA | 228 | 807 |
HLA-A*02:06 | SNFGAISSV | SKFGAISSV | 361 | 1100 |
HLA-C*06:02 | SNFGAISSV | SKFGAISSV | 1423 | 485 |
HLA-A*02:11 | KQLSSNFGAI | KQLSSKFGAI | 152 | 428 |
HLA-A*02:06 | KQLSSNFGAI | KQLSSKFGAI | 58 | 159 |
HLA-A*02:02 | KQLSSNFGAI | KQLSSKFGAI | 261 | 668 |
HLA-B*15:03 | KQLSSNFGA | KQLSSKFGA | 497 | 1076 |
Reference MSDNGPQNQRNAPRITFGGPSDSTGSNQNGERSGARSK
|||||||||||| |||||||||||||||||||||||||
Mutated MSDNGPQNQRNALRITFGGPSDSTGSNQNG‑‑‑GARSK
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*42:01 | MSDNGPQNQRNAP | MSDNGPQNQRNAL | 11146 | 27 |
HLA-B*07:02 | GPQNQRNAP | GPQNQRNAL | 2464 | 6 |
HLA-B*42:01 | GPQNQRNAP | GPQNQRNAL | 3035 | 8 |
HLA-B*07:02 | SDNGPQNQRNAP | SDNGPQNQRNAL | 11353 | 32 |
HLA-B*42:01 | SDNGPQNQRNAP | SDNGPQNQRNAL | 13042 | 39 |
HLA-B*42:01 | NGPQNQRNAP | NGPQNQRNAL | 12875 | 41 |
HLA-B*07:02 | MSDNGPQNQRNAP | MSDNGPQNQRNAL | 13138 | 58 |
HLA-B*07:02 | NGPQNQRNAP | NGPQNQRNAL | 14898 | 72 |
HLA-B*07:02 | APRITFGGPS | ALRITFGGPS | 191 | 17534 |
HLA-B*42:01 | PQNQRNAP | PQNQRNAL | 30142 | 436 |
HLA-B*07:02 | GPQNQRNAPR | GPQNQRNALR | 13964 | 345 |
HLA-B*27:05 | QRNAPRITF | QRNALRITF | 509 | 83 |
HLA-B*27:05 | NQRNAPRITF | NQRNALRITF | 1716 | 350 |
HLA-B*27:05 | GPQNQRNAPRITF | GPQNQRNALRITF | 2076 | 442 |
HLA-B*15:01 | NQRNAPRITF | NQRNALRITF | 96 | 40 |
Reference PQNQRNAPRITFGGPSDSTGSNQNGERSGARSKQRRPQGLPNNTASWFTALTQ
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated PQNQRNALRITFGGPSDSTGSNQNG‑‑‑GARSKQRRPQGLPNNTASWFTALTQ
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*31:01 | RSGARSKQR | GARSKQR | 77 | - |
HLA-A*68:01 | STGSNQNGER | - | 137 | - |
HLA-A*31:01 | RSGARSKQRR | - | 254 | - |
Reference GGSQASSRSSSRSRNSSRNSTPGSSRGTSPARMAGNGGDAALALLLLDRLNQ
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GGSQASSRSSSRSRNSSRNSTPGSSKRTSPARMAGNGGDAALALLLLDRLNQ
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*68:01 | NSTPGSSRG | NSTPGSSKR | 32767 | 34 |
HLA-A*33:03 | NSTPGSSRG | NSTPGSSKR | 32767 | 300 |
HLA-B*15:03 | SRGTSPARM | SKRTSPARM | 2669 | 106 |
HLA-A*31:01 | RNSTPGSSRG | RNSTPGSSKR | 7013 | 340 |
HLA-A*30:01 | SSRNSTPGSSR | SSRNSTPGSSK | 356 | 20 |
HLA-A*30:01 | GTSPARMAG | RTSPARMAG | 493 | 30 |
HLA-A*31:01 | SSRNSTPGSSRG | SSRNSTPGSSKR | 3757 | 231 |
HLA-A*30:01 | GTSPARMAGNGG | RTSPARMAGNGG | 6051 | 411 |
HLA-A*31:01 | SSRNSTPGSSR | SSRNSTPGSSK | 127 | 1853 |
HLA-A*30:01 | NSSRNSTPGSSR | NSSRNSTPGSSK | 4255 | 353 |
HLA-A*30:01 | RNSTPGSSR | RNSTPGSSK | 2120 | 188 |
HLA-A*31:01 | RNSTPGSSR | RNSTPGSSK | 123 | 1335 |
HLA-A*03:01 | SSRNSTPGSSR | SSRNSTPGSSK | 4753 | 442 |
HLA-A*11:01 | SSRNSTPGSSR | SSRNSTPGSSK | 2231 | 263 |
HLA-A*68:01 | NSSRNSTPGSSR | NSSRNSTPGSSK | 270 | 1385 |
HLA-A*30:01 | GSSRGTSPA | GSSKRTSPA | 555 | 145 |
HLA-A*30:01 | SSRNSTPGSSRG | SSRNSTPGSSKR | 1625 | 469 |
HLA-A*30:01 | SSRGTSPARMAG | SSKRTSPARMAG | 449 | 1031 |
Reference KQQTVTLLPAADLDDFSKQLQQSMSSADSTQA
||||||||||||||||||||||||| ||||||
Mutated KQQTVTLLPAADLDDFSKQLQQSMSRADSTQA
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*31:01 | KQLQQSMSS | KQLQQSMSR | 20016 | 55 |
HLA-A*30:01 | MSSADSTQA | MSRADSTQA | 2953 | 37 |
HLA-A*33:03 | DFSKQLQQSMSS | DFSKQLQQSMSR | 32767 | 494 |
HLA-B*15:03 | KQLQQSMSS | KQLQQSMSR | 236 | 5105 |
HLA-A*30:01 | SMSSADSTQA | SMSRADSTQA | 6453 | 416 |
HLA-A*02:02 | FSKQLQQSMSSA | FSKQLQQSMSRA | 345 | 1138 |
HLA-A*02:11 | FSKQLQQSMSSA | FSKQLQQSMSRA | 353 | 1118 |
HLA-A*02:11 | QLQQSMSSA | QLQQSMSRA | 436 | 1175 |
HLA-A*02:02 | SMSSADSTQA | SMSRADSTQA | 355 | 725 |
Reference MADSNGTITVEELKKLLEQWNLVIGFLFLTWICLLQFAYANRNR
|||||||||||||||||| |||||||||||||||||||||||||
Mutated MADSNGTITVEELKKLLEEWNLVIGFLFLTWICLLQFAYANRNR
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*44:03 | EQWNLVIGF | EEWNLVIGF | 1268 | 15 |
HLA-B*44:02 | EQWNLVIGF | EEWNLVIGF | 2396 | 34 |
HLA-B*44:03 | EQWNLVIGFLF | EEWNLVIGFLF | 5200 | 85 |
HLA-B*44:03 | EQWNLVIGFL | EEWNLVIGFL | 8038 | 135 |
HLA-B*44:03 | EQWNLVIGFLFLTW | EEWNLVIGFLFLTW | 5966 | 126 |
HLA-B*44:02 | EQWNLVIGFLF | EEWNLVIGFLF | 6607 | 162 |
HLA-B*44:02 | EQWNLVIGFL | EEWNLVIGFL | 9054 | 237 |
HLA-B*44:02 | EQWNLVIGFLFLTW | EEWNLVIGFLFLTW | 5922 | 170 |
HLA-B*15:01 | LEQWNLVIGF | LEEWNLVIGF | 256 | 8100 |
HLA-B*18:01 | EQWNLVIGF | EEWNLVIGF | 482 | 16 |
HLA-A*02:06 | EQWNLVIGFL | EEWNLVIGFL | 418 | 10916 |
HLA-B*15:03 | EQWNLVIGF | EEWNLVIGF | 101 | 2397 |
HLA-B*18:01 | EQWNLVIGFLF | EEWNLVIGFLF | 3471 | 190 |
HLA-B*40:02 | EQWNLVIGFL | EEWNLVIGFL | 3775 | 245 |
HLA-B*15:03 | LEQWNLVIGF | LEEWNLVIGF | 88 | 1227 |
HLA-B*40:02 | EQWNLVIGF | EEWNLVIGF | 1765 | 242 |
HLA-B*15:03 | KLLEQWNLVIGF | KLLEEWNLVIGF | 365 | 2285 |
HLA-A*02:11 | LLEQWNLVI | LLEEWNLVI | 142 | 24 |
HLA-A*02:11 | LLEQWNLVIGFL | LLEEWNLVIGFL | 1120 | 210 |
HLA-A*02:01 | LLEQWNLVI | LLEEWNLVI | 644 | 131 |
HLA-A*29:02 | QWNLVIGFLF | EWNLVIGFLF | 159 | 780 |
HLA-A*24:02 | QWNLVIGFLF | EWNLVIGFLF | 53 | 246 |
HLA-A*23:01 | QWNLVIGFLF | EWNLVIGFLF | 18 | 79 |
HLA-A*02:02 | LLEQWNLVI | LLEEWNLVI | 781 | 187 |
HLA-A*02:06 | LLEQWNLVI | LLEEWNLVI | 1869 | 487 |
HLA-B*40:02 | LEQWNLVI | LEEWNLVI | 367 | 1301 |
HLA-A*02:02 | LLEQWNLVIGFL | LLEEWNLVIGFL | 1047 | 329 |
Reference AYANRNRFLYIIKLIFLWLLWPVTLACFVLAAVYRINWITGGIAIAMACLV
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated AYANRNRFLYIIKLIFLWLLWPVTLTCFVLAAVYRINWITGGIAIAMACLV
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*35:01 | LACFVLAAVY | LTCFVLAAVY | 121 | 1943 |
HLA-A*68:01 | ACFVLAAVYR | TCFVLAAVYR | 694 | 80 |
HLA-B*35:01 | ACFVLAAVY | TCFVLAAVY | 2289 | 331 |
HLA-C*03:02 | LACFVLAAVY | LTCFVLAAVY | 145 | 935 |
HLA-C*16:01 | LACFVLAAV | LTCFVLAAV | 346 | 1994 |
HLA-A*02:01 | WLLWPVTLA | WLLWPVTLT | 33 | 190 |
HLA-A*02:02 | WLLWPVTLA | WLLWPVTLT | 32 | 180 |
HLA-A*02:11 | LWLLWPVTLA | LWLLWPVTLT | 66 | 363 |
HLA-A*02:11 | IFLWLLWPVTLA | IFLWLLWPVTLT | 190 | 1034 |
HLA-A*02:11 | LLWPVTLA | LLWPVTLT | 242 | 1313 |
HLA-A*33:03 | ACFVLAAVYR | TCFVLAAVYR | 252 | 47 |
HLA-A*02:02 | LWLLWPVTLA | LWLLWPVTLT | 304 | 1623 |
HLA-C*12:03 | LACFVLAAV | LTCFVLAAV | 214 | 1116 |
HLA-A*02:06 | WLLWPVTLA | WLLWPVTLT | 60 | 302 |
HLA-A*02:01 | LWLLWPVTLA | LWLLWPVTLT | 228 | 1142 |
HLA-A*02:02 | TLACFVLAAVY | TLTCFVLAAVY | 337 | 1467 |
HLA-A*02:02 | VTLACFVLAAV | VTLTCFVLAAV | 160 | 678 |
HLA-A*68:02 | LACFVLAAV | LTCFVLAAV | 44 | 11 |
HLA-A*02:02 | PVTLACFVLAAV | PVTLTCFVLAAV | 479 | 1907 |
HLA-A*02:11 | LIFLWLLWPVTLA | LIFLWLLWPVTLT | 406 | 1602 |
HLA-A*02:02 | TLACFVLAAVYRI | TLTCFVLAAVYRI | 293 | 1148 |
HLA-A*02:11 | LACFVLAAV | LTCFVLAAV | 122 | 32 |
HLA-A*02:11 | WLLWPVTLA | WLLWPVTLT | 6 | 22 |
HLA-B*15:03 | LACFVLAAVY | LTCFVLAAVY | 81 | 284 |
HLA-A*68:02 | TLACFVLAA | TLTCFVLAA | 395 | 1376 |
HLA-A*02:02 | FLWLLWPVTLACFV | FLWLLWPVTLTCFV | 485 | 146 |
HLA-A*68:01 | LACFVLAAVY | LTCFVLAAVY | 1184 | 359 |
HLA-A*02:02 | TLACFVLAA | TLTCFVLAA | 13 | 41 |
HLA-A*02:11 | TLACFVLAAVY | TLTCFVLAAVY | 310 | 929 |
HLA-A*02:02 | FLWLLWPVTLA | FLWLLWPVTLT | 291 | 867 |
HLA-A*02:11 | KLIFLWLLWPVTLA | KLIFLWLLWPVTLT | 290 | 859 |
HLA-A*29:02 | LACFVLAAVY | LTCFVLAAVY | 232 | 81 |
HLA-A*02:02 | VTLACFVLAA | VTLTCFVLAA | 100 | 285 |
HLA-A*02:06 | TLACFVLAAV | TLTCFVLAAV | 16 | 45 |
HLA-A*68:02 | VTLACFVLAA | VTLTCFVLAA | 481 | 1321 |
HLA-B*15:01 | TLACFVLAAVY | TLTCFVLAAVY | 414 | 1136 |
HLA-A*23:01 | LWPVTLACF | LWPVTLTCF | 57 | 155 |
HLA-A*24:02 | LWPVTLACF | LWPVTLTCF | 49 | 133 |
HLA-A*02:11 | FLWLLWPVTLA | FLWLLWPVTLT | 25 | 67 |
HLA-A*02:06 | TLACFVLAA | TLTCFVLAA | 40 | 107 |
HLA-A*02:01 | LACFVLAAV | LTCFVLAAV | 471 | 179 |
HLA-A*02:02 | TLACFVLAAV | TLTCFVLAAV | 5 | 13 |
HLA-A*02:11 | VTLACFVLAA | VTLTCFVLAA | 97 | 245 |
HLA-A*02:01 | FLWLLWPVTLA | FLWLLWPVTLT | 107 | 269 |
HLA-A*02:06 | FLWLLWPVTLA | FLWLLWPVTLT | 495 | 1240 |
HLA-A*02:11 | TLACFVLAA | TLTCFVLAA | 8 | 20 |
HLA-A*02:11 | VTLACFVLAAV | VTLTCFVLAAV | 128 | 318 |
HLA-A*02:01 | TLACFVLAAV | TLTCFVLAAV | 11 | 27 |
HLA-A*02:02 | LACFVLAAV | LTCFVLAAV | 198 | 81 |
HLA-A*02:01 | TLACFVLAA | TLTCFVLAA | 25 | 61 |
HLA-A*02:01 | VTLACFVLAAV | VTLTCFVLAAV | 436 | 1029 |
HLA-B*07:02 | WPVTLACFVL | WPVTLTCFVL | 362 | 155 |
HLA-A*02:01 | FLWLLWPVTLACFV | FLWLLWPVTLTCFV | 329 | 142 |
HLA-A*02:11 | TLACFVLAAV | TLTCFVLAAV | 4 | 9 |
HLA-A*30:02 | LACFVLAAVY | LTCFVLAAVY | 218 | 98 |
HLA-A*02:06 | LACFVLAAV | LTCFVLAAV | 51 | 23 |
HLA-A*03:02 | TLACFVLAAVYR | TLTCFVLAAVYR | 480 | 1047 |
HLA-A*68:02 | TLACFVLAAV | TLTCFVLAAV | 26 | 12 |
HLA-B*42:01 | WPVTLACFV | WPVTLTCFV | 209 | 102 |
HLA-A*32:01 | LLWPVTLACF | LLWPVTLTCF | 427 | 212 |
Reference MYSFVSEETGTLIVNSVLLFLAFVVFLLVTLAIL
|||||||| |||||||||||||||||||||||||
Mutated MYSFVSEEIGTLIVNSVLLFLAFVVFLLVTLAIL
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*24:02 | MYSFVSEET | MYSFVSEEI | 5532 | 18 |
HLA-A*23:01 | MYSFVSEET | MYSFVSEEI | 5604 | 31 |
HLA-C*16:01 | YSFVSEET | YSFVSEEI | 7157 | 226 |
HLA-C*14:02 | MYSFVSEET | MYSFVSEEI | 901 | 30 |
HLA-C*12:03 | YSFVSEET | YSFVSEEI | 10273 | 457 |
HLA-A*68:02 | MYSFVSEET | MYSFVSEEI | 3879 | 472 |
HLA-A*68:02 | ETGTLIVNSV | EIGTLIVNSV | 13 | 91 |
HLA-A*68:02 | FVSEETGTLI | FVSEEIGTLI | 247 | 60 |
HLA-A*68:02 | TGTLIVNSV | IGTLIVNSV | 491 | 1976 |
HLA-A*02:11 | FVSEETGTLI | FVSEEIGTLI | 307 | 89 |
HLA-B*40:01 | EETGTLIVNSVL | EEIGTLIVNSVL | 1578 | 499 |
HLA-A*02:01 | FVSEETGTL | FVSEEIGTL | 575 | 186 |
HLA-A*02:11 | FVSEETGTL | FVSEEIGTL | 97 | 32 |
HLA-A*02:06 | FVSEETGTLI | FVSEEIGTLI | 423 | 144 |
HLA-A*02:06 | FVSEETGTL | FVSEEIGTL | 120 | 41 |
HLA-A*02:01 | FVSEETGTLI | FVSEEIGTLI | 1293 | 442 |
HLA-A*02:06 | FVSEETGTLIV | FVSEEIGTLIV | 670 | 266 |
HLA-C*03:03 | YSFVSEETGTL | YSFVSEEIGTL | 293 | 711 |
HLA-C*03:04 | YSFVSEETGTL | YSFVSEEIGTL | 293 | 711 |
HLA-B*44:03 | EETGTLIVNSVLLF | EEIGTLIVNSVLLF | 877 | 375 |
HLA-A*02:11 | FVSEETGTLIV | FVSEEIGTLIV | 538 | 251 |
HLA-A*02:02 | FVSEETGTLI | FVSEEIGTLI | 85 | 40 |
HLA-A*68:02 | YSFVSEETGTLI | YSFVSEEIGTLI | 1008 | 485 |
Reference LQSINFVRIIMRLWLCWKCRSKNPLLYDANYFLCWHTNCYDYCIPYNSVTS
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated LQSINFVRIIMRLWLCWKCRSKNPLFYDANYFLCWHTNCYDYCIPYNSVTS
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:11 | KNPLLYDANYFL | KNPLFYDANYFL | 5 | 2349 |
HLA-A*02:01 | KNPLLYDANYFL | KNPLFYDANYFL | 11 | 5113 |
HLA-A*02:11 | SKNPLLYDANYFL | SKNPLFYDANYFL | 7 | 3145 |
HLA-A*02:11 | RSKNPLLYDANYFL | RSKNPLFYDANYFL | 13 | 5007 |
HLA-A*02:11 | LLYDANYFLC | LFYDANYFLC | 9 | 3249 |
HLA-A*02:01 | LLYDANYFLC | LFYDANYFLC | 19 | 6405 |
HLA-A*02:01 | SKNPLLYDANYFL | SKNPLFYDANYFL | 22 | 7007 |
HLA-A*02:02 | LLYDANYFLC | LFYDANYFLC | 11 | 3159 |
HLA-A*02:01 | RSKNPLLYDANYFL | RSKNPLFYDANYFL | 36 | 9195 |
HLA-A*02:02 | KNPLLYDANYFL | KNPLFYDANYFL | 10 | 2282 |
HLA-A*02:02 | SKNPLLYDANYFL | SKNPLFYDANYFL | 12 | 2637 |
HLA-A*02:11 | NPLLYDANYFL | NPLFYDANYFL | 12 | 2245 |
HLA-A*02:01 | NPLLYDANYFL | NPLFYDANYFL | 33 | 5177 |
HLA-A*02:02 | RSKNPLLYDANYFL | RSKNPLFYDANYFL | 25 | 3752 |
HLA-A*02:11 | LLYDANYFLCWHT | LFYDANYFLCWHT | 96 | 12816 |
HLA-A*02:02 | NPLLYDANYFL | NPLFYDANYFL | 19 | 2364 |
HLA-A*02:01 | LLYDANYFLCW | LFYDANYFLCW | 148 | 16983 |
HLA-A*02:11 | KNPLLYDANYFLC | KNPLFYDANYFLC | 130 | 14512 |
HLA-A*02:11 | LLYDANYFLCW | LFYDANYFLCW | 122 | 12825 |
HLA-A*02:02 | LLYDANYFLCW | LFYDANYFLCW | 138 | 13673 |
HLA-A*02:01 | LLYDANYFL | LFYDANYFL | 2 | 197 |
HLA-A*02:01 | KNPLLYDANYFLC | KNPLFYDANYFLC | 253 | 21357 |
HLA-A*02:06 | KNPLLYDANYFL | KNPLFYDANYFL | 60 | 4992 |
HLA-A*02:02 | KNPLLYDANYFLC | KNPLFYDANYFLC | 256 | 16537 |
HLA-A*02:01 | LLYDANYFLCWHT | LFYDANYFLCWHT | 317 | 19337 |
HLA-A*02:02 | LLYDANYFLCWHT | LFYDANYFLCWHT | 236 | 13789 |
HLA-A*02:02 | LLYDANYFLCWH | LFYDANYFLCWH | 330 | 18938 |
HLA-C*14:02 | LLYDANYF | LFYDANYF | 3530 | 62 |
HLA-A*02:06 | LLYDANYFL | LFYDANYFL | 4 | 227 |
HLA-A*02:06 | LLYDANYFLC | LFYDANYFLC | 115 | 6144 |
HLA-A*02:11 | LLYDANYFLCWH | LFYDANYFLCWH | 357 | 18356 |
HLA-A*02:11 | SKNPLLYDANYFLC | SKNPLFYDANYFLC | 415 | 19319 |
HLA-C*14:02 | LLYDANYFL | LFYDANYFL | 551 | 13 |
HLA-A*02:11 | LLYDANYFL | LFYDANYFL | 1 | 42 |
HLA-A*02:02 | SKNPLLYDANYFLC | SKNPLFYDANYFLC | 496 | 19711 |
HLA-A*02:11 | NPLLYDANYFLC | NPLFYDANYFLC | 404 | 15782 |
HLA-A*02:06 | SKNPLLYDANYFL | SKNPLFYDANYFL | 192 | 7054 |
HLA-A*02:11 | LYDANYFL | FYDANYFL | 66 | 2397 |
HLA-A*02:06 | NPLLYDANYFL | NPLFYDANYFL | 233 | 7403 |
HLA-A*02:02 | LLYDANYFL | LFYDANYFL | 2 | 63 |
HLA-A*02:01 | LYDANYFL | FYDANYFL | 184 | 5712 |
HLA-A*02:02 | LYDANYFL | FYDANYFL | 94 | 2422 |
HLA-C*17:01 | LLYDANYFL | LFYDANYFL | 53 | 1204 |
HLA-A*02:06 | RSKNPLLYDANYFL | RSKNPLFYDANYFL | 269 | 4779 |
HLA-A*23:01 | LLYDANYFL | LFYDANYFL | 1927 | 112 |
HLA-A*24:02 | LLYDANYFL | LFYDANYFL | 4953 | 391 |
HLA-A*02:01 | PLLYDANYFL | PLFYDANYFL | 18 | 223 |
HLA-A*02:11 | PLLYDANYFL | PLFYDANYFL | 7 | 80 |
HLA-A*32:01 | LLYDANYFL | LFYDANYFL | 153 | 1693 |
HLA-B*15:03 | WKCRSKNPLL | WKCRSKNPLF | 2085 | 195 |
HLA-A*02:06 | PLLYDANYFL | PLFYDANYFL | 115 | 1201 |
HLA-A*02:02 | PLLYDANYFL | PLFYDANYFL | 8 | 61 |
HLA-B*15:03 | LLYDANYF | LFYDANYF | 161 | 1126 |
HLA-B*15:03 | KNPLLYDANYF | KNPLFYDANYF | 2454 | 383 |
HLA-C*07:02 | LYDANYFL | FYDANYFL | 1749 | 337 |
HLA-B*58:01 | LLYDANYFLCW | LFYDANYFLCW | 205 | 1056 |
HLA-A*23:01 | LLYDANYFLCW | LFYDANYFLCW | 811 | 165 |
HLA-C*03:03 | LLYDANYFL | LFYDANYFL | 337 | 1656 |
HLA-C*03:04 | LLYDANYFL | LFYDANYFL | 337 | 1656 |
HLA-B*15:03 | LLYDANYFL | LFYDANYFL | 259 | 1253 |
HLA-C*14:02 | LYDANYFL | FYDANYFL | 391 | 84 |
HLA-A*29:02 | LLYDANYFL | LFYDANYFL | 778 | 183 |
HLA-A*68:02 | LLYDANYFL | LFYDANYFL | 186 | 773 |
HLA-B*57:01 | LLYDANYFLCW | LFYDANYFLCW | 471 | 1936 |
HLA-C*07:02 | LLYDANYFL | LFYDANYFL | 978 | 249 |
HLA-B*15:03 | RSKNPLLYDANYF | RSKNPLFYDANYF | 1224 | 324 |
HLA-B*35:01 | NPLLYDANYF | NPLFYDANYF | 405 | 111 |
HLA-B*15:03 | SKNPLLYDANYF | SKNPLFYDANYF | 485 | 137 |
HLA-C*04:01 | LYDANYFL | FYDANYFL | 408 | 116 |
HLA-B*15:01 | RSKNPLLYDANYF | RSKNPLFYDANYF | 1480 | 461 |
HLA-A*24:02 | LLYDANYFLCW | LFYDANYFLCW | 1388 | 470 |
HLA-C*03:02 | LLYDANYFL | LFYDANYFL | 344 | 1000 |
HLA-C*12:03 | LLYDANYFL | LFYDANYFL | 466 | 1086 |
HLA-B*58:01 | RSKNPLLYDANYF | RSKNPLFYDANYF | 238 | 106 |
Reference KDCVVLHSYFTSDYYQLYSTQLSTDTGVEHVTFFIYNKIVDEPEEHVQIHT
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated KDCVVLHSYFTSDYYQLYSTQLSTDIGVEHVTFFIYNKIVDEPEEHVQIHT
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-C*03:03 | YSTQLSTDT | YSTQLSTDI | 12349 | 241 |
HLA-C*03:04 | YSTQLSTDT | YSTQLSTDI | 12349 | 241 |
HLA-C*12:03 | YSTQLSTDT | YSTQLSTDI | 11751 | 430 |
HLA-C*16:01 | YSTQLSTDT | YSTQLSTDI | 7819 | 294 |
HLA-C*03:02 | YSTQLSTDT | YSTQLSTDI | 6466 | 347 |
HLA-A*02:06 | YQLYSTQLSTDT | YQLYSTQLSTDI | 4179 | 287 |
HLA-A*02:11 | QLYSTQLSTDT | QLYSTQLSTDI | 5151 | 437 |
HLA-A*68:01 | TGVEHVTFFIYNK | IGVEHVTFFIYNK | 213 | 1427 |
HLA-A*68:02 | LSTDTGVEHV | LSTDIGVEHV | 1765 | 265 |
HLA-A*68:02 | TGVEHVTFFI | IGVEHVTFFI | 212 | 1093 |
HLA-A*02:01 | TQLSTDTGV | TQLSTDIGV | 1084 | 283 |
HLA-A*02:01 | YSTQLSTDTGV | YSTQLSTDIGV | 1288 | 379 |
HLA-A*02:11 | STQLSTDTGV | STQLSTDIGV | 1485 | 443 |
HLA-A*25:01 | DTGVEHVTFF | DIGVEHVTFF | 180 | 596 |
HLA-A*02:11 | TQLSTDTGV | TQLSTDIGV | 436 | 133 |
HLA-A*02:06 | STQLSTDTGV | STQLSTDIGV | 264 | 83 |
HLA-A*02:11 | YSTQLSTDTGV | YSTQLSTDIGV | 1184 | 381 |
HLA-A*26:01 | DTGVEHVTFF | DIGVEHVTFF | 37 | 108 |
HLA-A*02:06 | YSTQLSTDTGV | YSTQLSTDIGV | 157 | 56 |
HLA-C*03:02 | TGVEHVTFF | IGVEHVTFF | 237 | 88 |
HLA-A*02:06 | TQLSTDTGV | TQLSTDIGV | 70 | 26 |
HLA-B*15:03 | TGVEHVTFF | IGVEHVTFF | 305 | 115 |
HLA-A*02:06 | LYSTQLSTDTGV | LYSTQLSTDIGV | 855 | 330 |
HLA-C*16:01 | TGVEHVTFF | IGVEHVTFF | 392 | 185 |
Reference MDPKISEMHPALRLVDPQIQLAVTRMENAVGRDQN
||||||||| |||||||||||||||||||||||||
Mutated MDPKISEMHSALRLVDPQIQLAVTRM‑‑‑VGRDQN
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*42:01 | HPALRLVDPQIQL | HSALRLVDPQIQL | 148 | 15057 |
HLA-B*42:01 | HPALRLVDPQI | HSALRLVDPQI | 297 | 15937 |
HLA-A*02:11 | PALRLVDPQIQL | SALRLVDPQIQL | 3683 | 325 |
HLA-B*38:01 | MHPALRLVDPQI | MHSALRLVDPQI | 3064 | 395 |
HLA-A*02:02 | PALRLVDPQIQL | SALRLVDPQIQL | 2220 | 388 |
HLA-A*02:01 | KISEMHPAL | KISEMHSAL | 139 | 774 |
HLA-A*02:06 | KISEMHPAL | KISEMHSAL | 62 | 310 |
HLA-B*07:02 | KISEMHPAL | KISEMHSAL | 436 | 134 |
HLA-A*02:11 | KISEMHPAL | KISEMHSAL | 14 | 42 |
HLA-C*08:02 | ISEMHPAL | ISEMHSAL | 896 | 414 |
HLA-B*15:03 | SEMHPALRL | SEMHSALRL | 493 | 245 |
Reference DPKISEMHPALRLVDPQIQLAVTRMENAVGRDQNNVGPKVYPIILRLGSPLSL
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated DPKISEMHSALRLVDPQIQLAVTRM‑‑‑VGRDQNNVGPKVYPIILRLGSPLSL
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*68:01 | VTRMENAVGR | VTRMVGR | 28 | - |
HLA-A*31:01 | VTRMENAVGR | VTRMVGR | 113 | - |
HLA-A*03:01 | RMENAVGRDQNNVGPK | RMVGRDQNNVGPK | - | 168 |
HLA-A*33:03 | VTRMENAVGR | VTRMVGR | 218 | - |
HLA-B*27:05 | TRMENAVGR | TRMVGR | 260 | - |
HLA-A*11:01 | VTRMENAVGR | VTRMVGR | 268 | - |
HLA-A*30:01 | VTRMENAVG | VTRMVG | 395 | - |
HLA-A*68:02 | MENAVGRDQNNV | MVGRDQNNV | 13036 | 480 |
HLA-A*33:03 | LAVTRMENAVGR | LAVTRMVGR | 927 | 45 |
HLA-A*02:11 | IQLAVTRMENAV | IQLAVTRMV | 1418 | 70 |
HLA-A*31:01 | LAVTRMENAVGR | LAVTRMVGR | 1898 | 115 |
HLA-A*02:02 | RMENAVGRDQNNV | RMVGRDQNNV | 3078 | 195 |
HLA-A*68:01 | QLAVTRMENAVGR | QLAVTRMVGR | 1673 | 108 |
HLA-B*15:03 | IQLAVTRMENAV | IQLAVTRMV | 2775 | 183 |
HLA-A*33:03 | QLAVTRMENAVGR | QLAVTRMVGR | 1778 | 188 |
HLA-A*02:11 | RMENAVGRDQNNV | RMVGRDQNNV | 1928 | 213 |
HLA-A*31:01 | IQLAVTRMENAVGR | IQLAVTRMVGR | 1758 | 236 |
HLA-A*31:01 | QLAVTRMENAVGR | QLAVTRMVGR | 2442 | 329 |
HLA-A*68:01 | LAVTRMENAVGR | LAVTRMVGR | 207 | 32 |
HLA-A*02:06 | IQLAVTRMENAV | IQLAVTRMV | 263 | 47 |
HLA-A*02:01 | IQLAVTRMENAV | IQLAVTRMV | 2387 | 463 |
Reference AAVKPLLVPHHVVATVQEIQLQAAVGELLLLEWLAMAVMLLLLCCCLTD
||||||||||||||||||||||||| |||||||||||||||||||||||
Mutated AAVKPLLVPHHVVATVQEIQLQAAVNELLLLEWLAMAVMLLLLCCCLTD
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*18:01 | GELLLLEWLAM | NELLLLEWLAM | 4979 | 247 |
HLA-B*18:01 | GELLLLEW | NELLLLEW | 3915 | 401 |
HLA-B*40:01 | GELLLLEWL | NELLLLEWL | 28 | 140 |
HLA-A*02:11 | QLQAAVGEL | QLQAAVNEL | 120 | 27 |
HLA-A*02:11 | IQLQAAVGEL | IQLQAAVNEL | 338 | 81 |
HLA-B*40:02 | GELLLLEWL | NELLLLEWL | 52 | 204 |
HLA-B*40:02 | GELLLLEWLAM | NELLLLEWLAM | 201 | 772 |
HLA-A*02:01 | QLQAAVGEL | QLQAAVNEL | 1290 | 358 |
HLA-A*02:02 | QLQAAVGEL | QLQAAVNEL | 92 | 28 |
HLA-B*58:01 | VGELLLLEW | VNELLLLEW | 330 | 1071 |
HLA-A*02:02 | IQLQAAVGEL | IQLQAAVNEL | 170 | 58 |
HLA-A*02:01 | LQAAVGELL | LQAAVNELL | 938 | 352 |
HLA-A*02:02 | LQAAVGELL | LQAAVNELL | 44 | 17 |
HLA-B*40:06 | GELLLLEWLA | NELLLLEWLA | 268 | 677 |
HLA-B*40:02 | GELLLLEWLA | NELLLLEWLA | 475 | 1195 |
HLA-A*02:11 | LQAAVGELL | LQAAVNELL | 386 | 154 |
HLA-A*02:01 | IQLQAAVGEL | IQLQAAVNEL | 1138 | 475 |
HLA-A*02:01 | QLQAAVGELL | QLQAAVNELL | 961 | 403 |
HLA-A*02:01 | GELLLLEWLAMA | NELLLLEWLAMA | 109 | 258 |
HLA-A*02:02 | QLQAAVGELL | QLQAAVNELL | 35 | 15 |
HLA-A*02:02 | IQLQAAVGELL | IQLQAAVNELL | 724 | 313 |
HLA-A*02:11 | QLQAAVGELL | QLQAAVNELL | 303 | 131 |
HLA-B*58:01 | AVGELLLLEW | AVNELLLLEW | 196 | 87 |
HLA-A*02:11 | GELLLLEWLAMA | NELLLLEWLAMA | 29 | 61 |
HLA-B*57:01 | AVGELLLLEW | AVNELLLLEW | 432 | 206 |
HLA-A*68:02 | EIQLQAAVGELL | EIQLQAAVNELL | 697 | 346 |
Reference HVGEIPVAYRKVLLRKNGNKGAGGHSYGADLKSFDLGDELGTDPYEDFQEN
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated HVGEIPVAYRKVLLRKNGNKGAGGHRYGADLKSFDLGDELGTDPYEDFQEN
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*58:01 | HSYGADLKSF | HRYGADLKSF | 59 | 18326 |
HLA-B*27:05 | HSYGADLKSF | HRYGADLKSF | 15851 | 60 |
HLA-B*57:01 | HSYGADLKSF | HRYGADLKSF | 158 | 23790 |
HLA-B*27:05 | HSYGADLKSFDL | HRYGADLKSFDL | 23268 | 171 |
HLA-B*15:01 | HSYGADLKSF | HRYGADLKSF | 94 | 6548 |
HLA-C*03:02 | HSYGADLKSF | HRYGADLKSF | 94 | 6500 |
HLA-C*16:01 | HSYGADLKSF | HRYGADLKSF | 329 | 14251 |
HLA-B*15:03 | RKNGNKGAGGHSY | RKNGNKGAGGHRY | 183 | 1186 |
HLA-B*15:03 | NKGAGGHSY | NKGAGGHRY | 129 | 774 |
HLA-B*15:03 | GNKGAGGHSY | GNKGAGGHRY | 478 | 2611 |
Reference APTKVTFGDDTVIEVQGYKSVNITFELDERIDKVLNEKCSAYTVELGTE
||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated APTKVTFGDDTVIEVQGYKSVNIIFELDERIDKVLNEKCSAYTVELGTE
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*58:01 | ITFELDERI | IIFELDERI | 270 | 4454 |
HLA-B*15:03 | VQGYKSVNIT | VQGYKSVNII | 3702 | 395 |
HLA-A*02:01 | ITFELDERI | IIFELDERI | 1637 | 223 |
HLA-A*02:11 | ITFELDERI | IIFELDERI | 261 | 37 |
HLA-A*02:02 | ITFELDERI | IIFELDERI | 428 | 65 |
HLA-A*24:02 | VQGYKSVNITF | VQGYKSVNIIF | 194 | 811 |
HLA-A*24:02 | IEVQGYKSVNITF | IEVQGYKSVNIIF | 366 | 1499 |
HLA-A*68:02 | ITFELDERI | IIFELDERI | 253 | 1036 |
HLA-A*68:01 | NITFELDER | NIIFELDER | 68 | 20 |
HLA-A*33:03 | NITFELDER | NIIFELDER | 874 | 262 |
HLA-A*23:01 | IEVQGYKSVNITF | IEVQGYKSVNIIF | 191 | 635 |
HLA-C*03:03 | YKSVNITFEL | YKSVNIIFEL | 305 | 1007 |
HLA-C*03:04 | YKSVNITFEL | YKSVNIIFEL | 305 | 1007 |
HLA-A*23:01 | VIEVQGYKSVNITF | VIEVQGYKSVNIIF | 413 | 1337 |
HLA-A*23:01 | VQGYKSVNITF | VQGYKSVNIIF | 111 | 353 |
HLA-A*02:11 | KSVNITFEL | KSVNIIFEL | 169 | 55 |
HLA-C*14:02 | GYKSVNITF | GYKSVNIIF | 53 | 160 |
HLA-A*11:01 | ITFELDERIDK | IIFELDERIDK | 446 | 1259 |
HLA-A*02:01 | KSVNITFEL | KSVNIIFEL | 863 | 307 |
HLA-C*03:02 | YKSVNITFEL | YKSVNIIFEL | 299 | 784 |
HLA-A*68:01 | VNITFELDER | VNIIFELDER | 1032 | 394 |
HLA-A*02:06 | KSVNITFEL | KSVNIIFEL | 80 | 31 |
HLA-C*16:01 | YKSVNITFEL | YKSVNIIFEL | 310 | 793 |
HLA-A*68:02 | NITFELDERI | NIIFELDERI | 209 | 533 |
HLA-A*24:02 | GYKSVNITF | GYKSVNIIF | 83 | 192 |
HLA-A*02:11 | ITFELDERIDKV | IIFELDERIDKV | 397 | 175 |
HLA-A*68:01 | SVNITFELDER | SVNIIFELDER | 405 | 180 |
HLA-A*24:02 | QGYKSVNITF | QGYKSVNIIF | 208 | 455 |
HLA-A*02:06 | ITFELDERI | IIFELDERI | 402 | 185 |
HLA-A*02:11 | YKSVNITFEL | YKSVNIIFEL | 715 | 337 |
HLA-C*03:03 | KSVNITFEL | KSVNIIFEL | 115 | 233 |
HLA-C*03:04 | KSVNITFEL | KSVNIIFEL | 115 | 233 |
Reference DAPYIVGDVVQEGVLTAVVIPTKKAGGTTEMLAKALRKVPTDNYITTYPGQ
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated DAPYIVGDVVQEGVLTAVVIPTKKASGTTEMLAKALRKVPTDNYITTYPGQ
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*11:01 | AGGTTEMLAK | ASGTTEMLAK | 1254 | 37 |
HLA-A*03:01 | AGGTTEMLAK | ASGTTEMLAK | 3665 | 277 |
HLA-A*03:02 | AGGTTEMLAK | ASGTTEMLAK | 2689 | 228 |
HLA-C*03:03 | KAGGTTEML | KASGTTEML | 2418 | 212 |
HLA-C*03:04 | KAGGTTEML | KASGTTEML | 2418 | 212 |
HLA-C*16:01 | KAGGTTEML | KASGTTEML | 1012 | 116 |
HLA-C*17:01 | KAGGTTEML | KASGTTEML | 1802 | 287 |
HLA-A*31:01 | AGGTTEMLAKALR | ASGTTEMLAKALR | 787 | 133 |
HLA-B*58:01 | KAGGTTEML | KASGTTEML | 2117 | 440 |
HLA-C*16:01 | KAGGTTEM | KASGTTEM | 863 | 191 |
HLA-A*03:02 | GGTTEMLAKALRK | SGTTEMLAKALRK | 1693 | 453 |
HLA-A*11:01 | KAGGTTEMLAK | KASGTTEMLAK | 589 | 203 |
HLA-A*03:01 | KAGGTTEMLAK | KASGTTEMLAK | 1236 | 449 |
HLA-A*03:01 | GGTTEMLAKALRK | SGTTEMLAKALRK | 467 | 181 |
HLA-A*31:01 | GGTTEMLAKALR | SGTTEMLAKALR | 677 | 335 |
Reference FLPRVFSAVGNICYTPSKLIEYTDFATSACVLAAECTIFKDASGKPVPYCY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated FLPRVFSAVGNICYTPSKLIEYTDFVTSACVLAAECTIFKDASGKPVPYCY
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:11 | PSKLIEYTDFA | PSKLIEYTDFV | 1201 | 56 |
HLA-A*02:11 | LIEYTDFA | LIEYTDFV | 2597 | 175 |
HLA-C*17:01 | KLIEYTDFA | KLIEYTDFV | 5269 | 382 |
HLA-C*16:01 | FATSACVL | FVTSACVL | 56 | 756 |
HLA-A*02:11 | TPSKLIEYTDFA | TPSKLIEYTDFV | 279 | 21 |
HLA-A*32:01 | KLIEYTDFA | KLIEYTDFV | 5360 | 407 |
HLA-C*03:03 | FATSACVL | FVTSACVL | 33 | 375 |
HLA-C*03:04 | FATSACVL | FVTSACVL | 33 | 375 |
HLA-A*02:11 | CYTPSKLIEYTDFA | CYTPSKLIEYTDFV | 1389 | 134 |
HLA-A*02:01 | PSKLIEYTDFA | PSKLIEYTDFV | 2225 | 215 |
HLA-A*68:02 | YTPSKLIEYTDFA | YTPSKLIEYTDFV | 318 | 34 |
HLA-A*02:01 | TPSKLIEYTDFA | TPSKLIEYTDFV | 579 | 63 |
HLA-A*68:02 | SKLIEYTDFA | SKLIEYTDFV | 1583 | 185 |
HLA-A*02:02 | LIEYTDFA | LIEYTDFV | 2057 | 247 |
HLA-A*02:02 | PSKLIEYTDFA | PSKLIEYTDFV | 810 | 99 |
HLA-A*02:11 | SKLIEYTDFA | SKLIEYTDFV | 24 | 3 |
HLA-A*02:06 | PSKLIEYTDFA | PSKLIEYTDFV | 2396 | 300 |
HLA-A*02:01 | SKLIEYTDFA | SKLIEYTDFV | 58 | 8 |
HLA-A*68:02 | KLIEYTDFA | KLIEYTDFV | 1952 | 281 |
HLA-A*02:11 | YTPSKLIEYTDFA | YTPSKLIEYTDFV | 40 | 6 |
HLA-C*12:03 | FATSACVL | FVTSACVL | 318 | 2024 |
HLA-C*03:02 | FATSACVLA | FVTSACVLA | 446 | 2809 |
HLA-A*02:06 | TPSKLIEYTDFA | TPSKLIEYTDFV | 601 | 97 |
HLA-A*02:06 | SKLIEYTDFA | SKLIEYTDFV | 73 | 12 |
HLA-A*02:06 | YTPSKLIEYTDFA | YTPSKLIEYTDFV | 103 | 18 |
HLA-A*02:02 | TPSKLIEYTDFA | TPSKLIEYTDFV | 127 | 23 |
HLA-A*02:02 | SKLIEYTDFAT | SKLIEYTDFVT | 1246 | 233 |
HLA-A*02:11 | FATSACVLA | FVTSACVLA | 1436 | 272 |
HLA-A*02:01 | YTPSKLIEYTDFA | YTPSKLIEYTDFV | 64 | 13 |
HLA-A*02:02 | CYTPSKLIEYTDFA | CYTPSKLIEYTDFV | 703 | 148 |
HLA-A*02:11 | SKLIEYTDFAT | SKLIEYTDFVT | 536 | 113 |
HLA-C*03:02 | FATSACVL | FVTSACVL | 116 | 507 |
HLA-A*02:02 | FATSACVLA | FVTSACVLA | 434 | 106 |
HLA-A*02:01 | FATSACVLA | FVTSACVLA | 1707 | 464 |
HLA-A*02:02 | SKLIEYTDFA | SKLIEYTDFV | 14 | 4 |
HLA-A*02:01 | SKLIEYTDFAT | SKLIEYTDFVT | 1321 | 392 |
HLA-A*02:11 | SKLIEYTDFATSA | SKLIEYTDFVTSA | 1112 | 330 |
HLA-A*02:11 | LIEYTDFATSACV | LIEYTDFVTSACV | 495 | 1590 |
HLA-A*02:02 | KLIEYTDFA | KLIEYTDFV | 3 | 1 |
HLA-A*02:11 | KLIEYTDFA | KLIEYTDFV | 3 | 1 |
HLA-A*02:01 | KLIEYTDFA | KLIEYTDFV | 6 | 2 |
HLA-A*02:02 | YTPSKLIEYTDFA | YTPSKLIEYTDFV | 21 | 7 |
HLA-A*02:01 | FATSACVLAA | FVTSACVLAA | 1232 | 447 |
HLA-A*02:11 | FATSACVLAA | FVTSACVLAA | 1056 | 398 |
HLA-A*02:02 | FATSACVLAA | FVTSACVLAA | 357 | 136 |
HLA-A*02:06 | KLIEYTDFA | KLIEYTDFV | 5 | 2 |
HLA-A*02:06 | FATSACVLA | FVTSACVLA | 186 | 76 |
HLA-A*02:01 | KLIEYTDFATSA | KLIEYTDFVTSA | 98 | 41 |
HLA-A*02:06 | KLIEYTDFATSA | KLIEYTDFVTSA | 166 | 70 |
HLA-A*30:01 | ATSACVLAA | VTSACVLAA | 370 | 801 |
HLA-C*14:02 | YTDFATSACVL | YTDFVTSACVL | 196 | 396 |
HLA-A*02:11 | KLIEYTDFATSA | KLIEYTDFVTSA | 22 | 11 |
Reference GRWVLNNDYYRSLPGVFCGVDAVNLLTNMFTPLIQPIGALDISASIVAGGI
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated GRWVLNNDYYRSLPGVFCGVDAVNLFTNMFTPLIQPIGALDISASIVAGGI
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:11 | LLTNMFTPL | LFTNMFTPL | 5 | 2700 |
HLA-A*02:01 | LLTNMFTPL | LFTNMFTPL | 16 | 6477 |
HLA-A*02:02 | LLTNMFTPL | LFTNMFTPL | 5 | 1518 |
HLA-A*02:06 | LLTNMFTPL | LFTNMFTPL | 28 | 3590 |
HLA-A*02:11 | LLTNMFTPLI | LFTNMFTPLI | 17 | 1231 |
HLA-A*02:01 | LLTNMFTPLI | LFTNMFTPLI | 55 | 3749 |
HLA-C*14:02 | LLTNMFTPL | LFTNMFTPL | 453 | 7 |
HLA-A*02:02 | LLTNMFTPLI | LFTNMFTPLI | 22 | 967 |
HLA-B*15:01 | LLTNMFTPL | LFTNMFTPL | 228 | 5949 |
HLA-C*03:03 | LTNMFTPL | FTNMFTPL | 1113 | 61 |
HLA-C*03:04 | LTNMFTPL | FTNMFTPL | 1113 | 61 |
HLA-A*23:01 | VFCGVDAVNLL | VFCGVDAVNLF | 2671 | 151 |
HLA-A*02:02 | LLTNMFTPLIQPI | LFTNMFTPLIQPI | 294 | 4718 |
HLA-A*02:02 | GVFCGVDAVNLL | GVFCGVDAVNLF | 439 | 6440 |
HLA-C*14:02 | NLLTNMFTPL | NLFTNMFTPL | 4861 | 337 |
HLA-B*15:03 | CGVDAVNLL | CGVDAVNLF | 6087 | 490 |
HLA-A*02:11 | LLTNMFTPLIQPI | LFTNMFTPLIQPI | 297 | 3332 |
HLA-C*03:02 | LTNMFTPL | FTNMFTPL | 829 | 77 |
HLA-C*03:03 | LTNMFTPLI | FTNMFTPLI | 2207 | 207 |
HLA-C*03:04 | LTNMFTPLI | FTNMFTPLI | 2207 | 207 |
HLA-A*02:01 | LTNMFTPLI | FTNMFTPLI | 1097 | 103 |
HLA-A*02:11 | LTNMFTPLI | FTNMFTPLI | 136 | 13 |
HLA-C*12:03 | LTNMFTPLI | FTNMFTPLI | 430 | 42 |
HLA-A*02:06 | LLTNMFTPLI | LFTNMFTPLI | 136 | 1345 |
HLA-A*02:06 | LTNMFTPLI | FTNMFTPLI | 223 | 23 |
HLA-C*12:02 | LTNMFTPLI | FTNMFTPLI | 1404 | 157 |
HLA-A*02:02 | LTNMFTPLI | FTNMFTPLI | 364 | 41 |
HLA-A*68:02 | LTNMFTPLIQPI | FTNMFTPLIQPI | 1086 | 129 |
HLA-C*12:03 | LTNMFTPL | FTNMFTPL | 2677 | 324 |
HLA-C*03:02 | LTNMFTPLI | FTNMFTPLI | 716 | 87 |
HLA-C*02:02 | LTNMFTPLI | FTNMFTPLI | 1268 | 158 |
HLA-C*02:10 | LTNMFTPLI | FTNMFTPLI | 1268 | 158 |
HLA-C*17:01 | LTNMFTPLI | FTNMFTPLI | 599 | 86 |
HLA-A*68:02 | LTNMFTPLI | FTNMFTPLI | 82 | 12 |
HLA-C*03:03 | LLTNMFTPL | LFTNMFTPL | 253 | 1728 |
HLA-C*03:04 | LLTNMFTPL | LFTNMFTPL | 253 | 1728 |
HLA-C*12:02 | LTNMFTPL | FTNMFTPL | 3002 | 450 |
HLA-B*15:03 | LLTNMFTPL | LFTNMFTPL | 108 | 704 |
HLA-A*68:02 | NLLTNMFTPL | NLFTNMFTPL | 2741 | 480 |
HLA-C*14:02 | LTNMFTPL | FTNMFTPL | 2589 | 467 |
HLA-A*02:06 | LTNMFTPLIQPI | FTNMFTPLIQPI | 2171 | 394 |
HLA-C*16:01 | LTNMFTPL | FTNMFTPL | 293 | 61 |
HLA-C*16:01 | LTNMFTPLI | FTNMFTPLI | 267 | 56 |
HLA-A*30:01 | LTNMFTPLI | FTNMFTPLI | 144 | 648 |
HLA-A*02:02 | AVNLLTNMFTPL | AVNLFTNMFTPL | 249 | 948 |
HLA-B*08:01 | LLTNMFTPL | LFTNMFTPL | 271 | 983 |
HLA-A*02:11 | LTNMFTPLIQPI | FTNMFTPLIQPI | 1413 | 409 |
HLA-C*03:02 | LLTNMFTPL | LFTNMFTPL | 307 | 951 |
HLA-A*02:02 | NLLTNMFTPLI | NLFTNMFTPLI | 658 | 224 |
HLA-A*02:02 | NLLTNMFTPL | NLFTNMFTPL | 58 | 21 |
HLA-C*15:02 | LTNMFTPLI | FTNMFTPLI | 67 | 25 |
HLA-A*02:11 | AVNLLTNMFTPL | AVNLFTNMFTPL | 390 | 1009 |
HLA-A*02:02 | VNLLTNMFTPL | VNLFTNMFTPL | 375 | 919 |
HLA-A*02:11 | NLLTNMFTP | NLFTNMFTP | 1166 | 476 |
HLA-B*15:03 | AVNLLTNMF | AVNLFTNMF | 390 | 172 |
HLA-A*02:11 | NLLTNMFTPLIQPI | NLFTNMFTPLIQPI | 274 | 129 |
Reference MRFRRAFGEYSHVVAFNTLLFLMSFTVLCLTPVYSFLPGVYSVIYLYLTFY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated MRFRRAFGEYSHVVAFNTLLFLMSFIVLCLTPVYSFLPGVYSVIYLYLTFY
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:11 | NTLLFLMSFT | NTLLFLMSFI | 1059 | 51 |
HLA-A*68:02 | NTLLFLMSFT | NTLLFLMSFI | 741 | 41 |
HLA-A*02:11 | FNTLLFLMSFT | FNTLLFLMSFI | 1509 | 110 |
HLA-A*02:11 | TLLFLMSFT | TLLFLMSFI | 82 | 6 |
HLA-A*68:02 | TLLFLMSFT | TLLFLMSFI | 3858 | 286 |
HLA-A*68:02 | FTVLCLTPVYSFL | FIVLCLTPVYSFL | 129 | 1580 |
HLA-A*02:11 | AFNTLLFLMSFT | AFNTLLFLMSFI | 4598 | 420 |
HLA-A*68:02 | FTVLCLTPV | FIVLCLTPV | 8 | 83 |
HLA-A*68:02 | SFTVLCLTPV | SFIVLCLTPV | 63 | 597 |
HLA-A*02:01 | TLLFLMSFT | TLLFLMSFI | 239 | 26 |
HLA-A*02:01 | NTLLFLMSFT | NTLLFLMSFI | 1593 | 179 |
HLA-A*02:02 | TLLFLMSFT | TLLFLMSFI | 235 | 28 |
HLA-B*15:01 | LLFLMSFTVL | LLFLMSFIVL | 229 | 1839 |
HLA-A*02:11 | LFLMSFTV | LFLMSFIV | 279 | 2222 |
HLA-A*02:02 | NTLLFLMSFT | NTLLFLMSFI | 1462 | 186 |
HLA-A*02:11 | LLFLMSFT | LLFLMSFI | 2935 | 377 |
HLA-A*32:01 | LLFLMSFTV | LLFLMSFIV | 369 | 2631 |
HLA-A*02:06 | LLFLMSFTV | LLFLMSFIV | 34 | 231 |
HLA-C*12:03 | FTVLCLTPV | FIVLCLTPV | 161 | 1041 |
HLA-C*14:02 | LFLMSFTVL | LFLMSFIVL | 18 | 112 |
HLA-A*02:11 | AFNTLLFLMSFTV | AFNTLLFLMSFIV | 74 | 448 |
HLA-C*16:01 | FTVLCLTPVY | FIVLCLTPVY | 395 | 2359 |
HLA-A*02:06 | TLLFLMSFT | TLLFLMSFI | 397 | 68 |
HLA-A*02:01 | LLFLMSFTV | LLFLMSFIV | 9 | 50 |
HLA-A*02:11 | VAFNTLLFLMSFTV | VAFNTLLFLMSFIV | 225 | 1206 |
HLA-A*02:01 | AFNTLLFLMSFTV | AFNTLLFLMSFIV | 357 | 1842 |
HLA-A*68:02 | NTLLFLMSFTV | NTLLFLMSFIV | 106 | 539 |
HLA-A*02:11 | NTLLFLMSFTV | NTLLFLMSFIV | 59 | 300 |
HLA-A*02:01 | NTLLFLMSFTV | NTLLFLMSFIV | 212 | 1074 |
HLA-C*03:03 | FTVLCLTPV | FIVLCLTPV | 302 | 1526 |
HLA-C*03:04 | FTVLCLTPV | FIVLCLTPV | 302 | 1526 |
HLA-B*15:03 | LLFLMSFTVL | LLFLMSFIVL | 318 | 1563 |
HLA-A*02:02 | LLFLMSFTV | LLFLMSFIV | 11 | 53 |
HLA-A*02:06 | NTLLFLMSFT | NTLLFLMSFI | 945 | 197 |
HLA-A*02:11 | SFTVLCLTPV | SFIVLCLTPV | 250 | 53 |
HLA-A*02:11 | FNTLLFLMSFTV | FNTLLFLMSFIV | 23 | 108 |
HLA-A*02:01 | FNTLLFLMSFTV | FNTLLFLMSFIV | 131 | 602 |
HLA-C*03:02 | FTVLCLTPV | FIVLCLTPV | 198 | 902 |
HLA-C*14:02 | FLMSFTVL | FLMSFIVL | 475 | 2138 |
HLA-C*12:02 | FTVLCLTPV | FIVLCLTPV | 218 | 961 |
HLA-C*03:03 | FLMSFTVL | FLMSFIVL | 309 | 1359 |
HLA-C*03:04 | FLMSFTVL | FLMSFIVL | 309 | 1359 |
HLA-A*26:01 | FTVLCLTPVY | FIVLCLTPVY | 176 | 760 |
HLA-A*02:01 | SFTVLCLTPV | SFIVLCLTPV | 470 | 111 |
HLA-B*15:01 | FLMSFTVLCL | FLMSFIVLCL | 455 | 1914 |
HLA-B*15:03 | LFLMSFTVL | LFLMSFIVL | 353 | 1462 |
HLA-A*68:01 | FTVLCLTPVY | FIVLCLTPVY | 485 | 1972 |
HLA-A*02:02 | FNTLLFLMSFTV | FNTLLFLMSFIV | 186 | 704 |
HLA-B*15:01 | LMSFTVLCL | LMSFIVLCL | 110 | 408 |
HLA-C*03:02 | FLMSFTVL | FLMSFIVL | 352 | 1285 |
HLA-A*02:02 | NTLLFLMSFTV | NTLLFLMSFIV | 424 | 1515 |
HLA-A*02:11 | LLFLMSFTV | LLFLMSFIV | 2 | 7 |
HLA-C*03:02 | FTVLCLTPVY | FIVLCLTPVY | 50 | 175 |
HLA-B*15:03 | LMSFTVLCL | LMSFIVLCL | 54 | 186 |
HLA-C*12:02 | FTVLCLTPVY | FIVLCLTPVY | 331 | 1137 |
HLA-A*02:02 | LLFLMSFTVL | LLFLMSFIVL | 42 | 144 |
HLA-A*68:02 | MSFTVLCLTPV | MSFIVLCLTPV | 34 | 114 |
HLA-C*03:02 | LMSFTVLCL | LMSFIVLCL | 467 | 1520 |
HLA-A*02:01 | LLFLMSFTVL | LLFLMSFIVL | 74 | 240 |
HLA-A*02:11 | LLFLMSFTVL | LLFLMSFIVL | 25 | 80 |
HLA-A*02:02 | SFTVLCLTPV | SFIVLCLTPV | 261 | 84 |
HLA-A*02:02 | LFLMSFTVLCL | LFLMSFIVLCL | 73 | 216 |
HLA-A*02:06 | LLFLMSFTVL | LLFLMSFIVL | 331 | 973 |
HLA-C*16:01 | MSFTVLCL | MSFIVLCL | 171 | 496 |
HLA-A*68:02 | FLMSFTVLCLTPV | FLMSFIVLCLTPV | 331 | 927 |
HLA-A*68:02 | MSFTVLCLT | MSFIVLCLT | 68 | 186 |
HLA-A*02:06 | MSFTVLCLT | MSFIVLCLT | 239 | 650 |
HLA-A*02:11 | TVLCLTPVYSFL | IVLCLTPVYSFL | 533 | 199 |
HLA-B*15:03 | FLMSFTVL | FLMSFIVL | 371 | 993 |
HLA-A*02:02 | FLMSFTVLCL | FLMSFIVLCL | 3 | 8 |
HLA-A*02:02 | LLFLMSFTVLCL | LLFLMSFIVLCL | 134 | 356 |
HLA-A*02:01 | LLFLMSFTVLCL | LLFLMSFIVLCL | 237 | 602 |
HLA-A*02:01 | LFLMSFTVLCL | LFLMSFIVLCL | 73 | 185 |
HLA-A*02:06 | FLMSFTVLCL | FLMSFIVLCL | 15 | 38 |
HLA-C*03:02 | TVLCLTPVY | IVLCLTPVY | 136 | 54 |
HLA-A*23:01 | LFLMSFTVL | LFLMSFIVL | 411 | 1026 |
HLA-A*02:06 | TLLFLMSFTV | TLLFLMSFIV | 47 | 116 |
HLA-B*08:01 | FLMSFTVL | FLMSFIVL | 118 | 291 |
HLA-A*02:06 | NTLLFLMSFTV | NTLLFLMSFIV | 373 | 906 |
HLA-A*02:01 | TLLFLMSFTV | TLLFLMSFIV | 14 | 33 |
HLA-A*02:06 | VAFNTLLFLMSFTV | VAFNTLLFLMSFIV | 479 | 1101 |
HLA-A*02:06 | MSFTVLCLTPV | MSFIVLCLTPV | 48 | 110 |
HLA-B*58:01 | MSFTVLCLT | MSFIVLCLT | 412 | 943 |
HLA-A*02:01 | FLMSFTVLCL | FLMSFIVLCL | 4 | 9 |
HLA-A*02:02 | FLMSFTVLCLTP | FLMSFIVLCLTP | 194 | 430 |
HLA-A*02:11 | TLLFLMSFTV | TLLFLMSFIV | 5 | 11 |
HLA-A*02:02 | FTVLCLTPV | FIVLCLTPV | 23 | 11 |
HLA-A*02:01 | FTVLCLTPV | FIVLCLTPV | 25 | 12 |
HLA-A*30:02 | FTVLCLTPVY | FIVLCLTPVY | 327 | 671 |
HLA-A*02:02 | TVLCLTPVYSFL | IVLCLTPVYSFL | 176 | 86 |
HLA-B*58:01 | MSFTVLCLTP | MSFIVLCLTP | 497 | 1015 |
HLA-A*02:11 | FTVLCLTPV | FIVLCLTPV | 12 | 6 |
Reference EEAALCTFLLNKEMYLKLRSDVLLPLTQYNRYLALYNKYKYFSGAMDTTSY
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated EEAALCTFLLNKEMYLKLRSDVLLPFTQYNRYLALYNKYKYFSGAMDTTSY
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:11 | YLKLRSDVLLPL | YLKLRSDVLLPF | 5 | 567 |
HLA-A*02:02 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 49 | 5402 |
HLA-A*02:11 | KLRSDVLLPL | KLRSDVLLPF | 5 | 501 |
HLA-A*02:01 | KLRSDVLLPL | KLRSDVLLPF | 10 | 977 |
HLA-A*02:01 | YLKLRSDVLLPL | YLKLRSDVLLPF | 11 | 948 |
HLA-A*02:11 | LKLRSDVLLPL | LKLRSDVLLPF | 93 | 7534 |
HLA-A*02:11 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 82 | 6537 |
HLA-A*02:02 | YLKLRSDVLLPL | YLKLRSDVLLPF | 6 | 468 |
HLA-A*02:02 | LKLRSDVLLPL | LKLRSDVLLPF | 120 | 9124 |
HLA-A*02:02 | KLRSDVLLPL | KLRSDVLLPF | 6 | 425 |
HLA-A*02:01 | LKLRSDVLLPL | LKLRSDVLLPF | 161 | 9994 |
HLA-A*02:01 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 161 | 8888 |
HLA-A*02:02 | LPLTQYNRYL | LPFTQYNRYL | 241 | 12319 |
HLA-A*02:06 | YLKLRSDVLLPL | YLKLRSDVLLPF | 35 | 1391 |
HLA-A*02:01 | KLRSDVLLPLT | KLRSDVLLPFT | 144 | 5015 |
HLA-A*02:02 | YLKLRSDVLLPLT | YLKLRSDVLLPFT | 82 | 2744 |
HLA-A*02:02 | KLRSDVLLPLT | KLRSDVLLPFT | 183 | 5811 |
HLA-A*02:02 | EMYLKLRSDVLLPL | EMYLKLRSDVLLPF | 322 | 10179 |
HLA-A*02:06 | KLRSDVLLPL | KLRSDVLLPF | 29 | 851 |
HLA-A*02:11 | EMYLKLRSDVLLPL | EMYLKLRSDVLLPF | 400 | 11514 |
HLA-B*15:01 | KLRSDVLLPL | KLRSDVLLPF | 335 | 15 |
HLA-B*15:01 | YLKLRSDVLLPL | YLKLRSDVLLPF | 1921 | 89 |
HLA-A*02:11 | KLRSDVLLPLT | KLRSDVLLPFT | 114 | 2241 |
HLA-B*15:03 | KLRSDVLLPL | KLRSDVLLPF | 740 | 38 |
HLA-B*15:03 | LKLRSDVLLPL | LKLRSDVLLPF | 752 | 42 |
HLA-C*03:03 | LTQYNRYLAL | FTQYNRYLAL | 922 | 58 |
HLA-C*03:04 | LTQYNRYLAL | FTQYNRYLAL | 922 | 58 |
HLA-A*02:01 | YLKLRSDVLLPLT | YLKLRSDVLLPFT | 177 | 2552 |
HLA-B*15:03 | YLKLRSDVLLPL | YLKLRSDVLLPF | 2864 | 206 |
HLA-B*15:03 | LRSDVLLPL | LRSDVLLPF | 149 | 11 |
HLA-A*23:01 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 466 | 39 |
HLA-B*15:03 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 3874 | 334 |
HLA-A*02:11 | LTQYNRYLAL | FTQYNRYLAL | 1343 | 121 |
HLA-A*02:11 | YLKLRSDVLLPLT | YLKLRSDVLLPFT | 115 | 1240 |
HLA-B*15:03 | RSDVLLPL | RSDVLLPF | 4307 | 407 |
HLA-C*12:03 | LTQYNRYLAL | FTQYNRYLAL | 779 | 75 |
HLA-A*24:02 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 1229 | 123 |
HLA-A*68:02 | LTQYNRYLA | FTQYNRYLA | 349 | 38 |
HLA-A*68:02 | LTQYNRYLAL | FTQYNRYLAL | 1524 | 172 |
HLA-A*02:11 | LTQYNRYLA | FTQYNRYLA | 2873 | 342 |
HLA-C*03:02 | LTQYNRYLAL | FTQYNRYLAL | 539 | 66 |
HLA-C*12:02 | LTQYNRYLAL | FTQYNRYLAL | 1553 | 198 |
HLA-A*02:02 | LTQYNRYLAL | FTQYNRYLAL | 1070 | 154 |
HLA-A*02:06 | LTQYNRYLAL | FTQYNRYLAL | 483 | 77 |
HLA-A*68:01 | LTQYNRYLALYNK | FTQYNRYLALYNK | 793 | 128 |
HLA-B*08:01 | EMYLKLRSDVLLPL | EMYLKLRSDVLLPF | 231 | 1402 |
HLA-C*17:01 | LTQYNRYLAL | FTQYNRYLAL | 2488 | 410 |
HLA-A*02:01 | LTQYNRYLAL | FTQYNRYLAL | 2931 | 490 |
HLA-A*32:01 | KLRSDVLLPL | KLRSDVLLPF | 418 | 70 |
HLA-B*08:01 | MYLKLRSDVLLPL | MYLKLRSDVLLPF | 151 | 847 |
HLA-C*16:01 | LTQYNRYLAL | FTQYNRYLAL | 285 | 51 |
HLA-C*16:01 | LTQYNRYL | FTQYNRYL | 663 | 140 |
HLA-B*08:01 | YLKLRSDVLLPL | YLKLRSDVLLPF | 13 | 61 |
HLA-C*14:02 | LTQYNRYLAL | FTQYNRYLAL | 1130 | 251 |
HLA-A*30:01 | LTQYNRYLA | FTQYNRYLA | 171 | 719 |
HLA-C*08:02 | RSDVLLPL | RSDVLLPF | 400 | 1636 |
HLA-B*35:01 | LLPLTQYNRY | LLPFTQYNRY | 1778 | 445 |
HLA-B*08:01 | YLKLRSDVLLPLT | YLKLRSDVLLPFT | 258 | 1028 |
HLA-A*29:02 | LPLTQYNRY | LPFTQYNRY | 1848 | 480 |
HLA-C*06:02 | LRSDVLLPL | LRSDVLLPF | 103 | 395 |
HLA-B*35:01 | LPLTQYNRY | LPFTQYNRY | 66 | 18 |
HLA-A*30:01 | KLRSDVLLPL | KLRSDVLLPF | 108 | 363 |
HLA-C*15:02 | LTQYNRYLAL | FTQYNRYLAL | 541 | 163 |
HLA-A*29:02 | LTQYNRYLALYNKY | FTQYNRYLALYNKY | 1609 | 497 |
HLA-A*68:01 | LLPLTQYNR | LLPFTQYNR | 221 | 69 |
HLA-A*11:01 | VLLPLTQYNR | VLLPFTQYNR | 881 | 285 |
HLA-A*29:02 | LLPLTQYNRY | LLPFTQYNRY | 239 | 81 |
HLA-A*29:02 | LTQYNRYLALY | FTQYNRYLALY | 212 | 76 |
HLA-A*01:01 | LTQYNRYLALY | FTQYNRYLALY | 400 | 146 |
HLA-B*08:01 | LTQYNRYLAL | FTQYNRYLAL | 126 | 46 |
HLA-A*02:11 | LLPLTQYNRYL | LLPFTQYNRYL | 389 | 143 |
HLA-A*30:02 | LLPLTQYNRY | LLPFTQYNRY | 547 | 211 |
HLA-A*03:01 | VLLPLTQYNR | VLLPFTQYNR | 1129 | 439 |
HLA-B*15:01 | LLPLTQYNRY | LLPFTQYNRY | 890 | 357 |
HLA-B*14:02 | LTQYNRYLAL | FTQYNRYLAL | 712 | 291 |
HLA-A*03:02 | VLLPLTQYNR | VLLPFTQYNR | 318 | 131 |
HLA-A*68:01 | VLLPLTQYNR | VLLPFTQYNR | 604 | 250 |
HLA-A*30:02 | RSDVLLPLTQYNRY | RSDVLLPFTQYNRY | 565 | 236 |
HLA-B*53:01 | LPLTQYNRY | LPFTQYNRY | 497 | 208 |
HLA-A*02:11 | VLLPLTQYNRYLA | VLLPFTQYNRYLA | 229 | 98 |
HLA-A*02:01 | VLLPLTQYNRYLA | VLLPFTQYNRYLA | 545 | 239 |
HLA-A*74:01 | VLLPLTQYNR | VLLPFTQYNR | 513 | 226 |
HLA-A*02:11 | VLLPLTQYNRYLAL | VLLPFTQYNRYLAL | 139 | 65 |
HLA-B*38:01 | LRSDVLLPL | LRSDVLLPF | 499 | 1065 |
HLA-A*02:02 | VLLPLTQYNRYLA | VLLPFTQYNRYLA | 980 | 473 |
HLA-A*02:11 | VLLPLTQYNRYL | VLLPFTQYNRYL | 43 | 21 |
HLA-A*02:02 | LLPLTQYNRYL | LLPFTQYNRYL | 400 | 196 |
HLA-A*31:01 | VLLPLTQYNR | VLLPFTQYNR | 80 | 40 |
HLA-A*02:01 | VLLPLTQYNRYL | VLLPFTQYNRYL | 170 | 85 |
Reference ACCHLAKALNDFSNSGSDVLYQPPQTSITSAVLQ
||||||||||||||||||||||||| ||||||||
Mutated ACCHLAKALNDFSNSGSDVLYQPPQISITSAVLQ
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-C*16:01 | QTSITSAVL | QISITSAVL | 201 | 1829 |
HLA-A*68:02 | QTSITSAVL | QISITSAVL | 206 | 1702 |
HLA-A*02:06 | QPPQTSITSAV | QPPQISITSAV | 3097 | 393 |
HLA-A*02:06 | LYQPPQTSITSAV | LYQPPQISITSAV | 1485 | 214 |
HLA-A*02:06 | YQPPQTSITSAV | YQPPQISITSAV | 156 | 26 |
HLA-A*02:01 | YQPPQTSITSAV | YQPPQISITSAV | 1613 | 341 |
HLA-A*02:11 | YQPPQTSITSAV | YQPPQISITSAV | 498 | 120 |
HLA-C*03:03 | TSITSAVL | ISITSAVL | 532 | 198 |
HLA-C*03:04 | TSITSAVL | ISITSAVL | 532 | 198 |
HLA-C*03:03 | QTSITSAVL | QISITSAVL | 311 | 831 |
HLA-C*03:04 | QTSITSAVL | QISITSAVL | 311 | 831 |
HLA-C*16:01 | TSITSAVL | ISITSAVL | 381 | 156 |
HLA-A*02:01 | VLYQPPQTSI | VLYQPPQISI | 1084 | 474 |
HLA-A*23:01 | VLYQPPQTSI | VLYQPPQISI | 979 | 462 |
HLA-A*23:01 | LYQPPQTSI | LYQPPQISI | 278 | 132 |
Reference QPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSCGSVGFNIDYDCV
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated QPGQTFSVLACYNGSPSGVYQCAMRHNFTIKGSFLNGSCGSVGFNIDYDCV
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-B*07:02 | RPNFTIKGSF | RHNFTIKGSF | 14 | 15756 |
HLA-B*07:02 | RPNFTIKGSFL | RHNFTIKGSFL | 24 | 18650 |
HLA-B*42:01 | RPNFTIKGSF | RHNFTIKGSF | 31 | 15129 |
HLA-B*42:01 | RPNFTIKGSFL | RHNFTIKGSFL | 39 | 17143 |
HLA-B*15:03 | PNFTIKGSF | HNFTIKGSF | 7728 | 117 |
HLA-A*03:01 | GVYQCAMRP | GVYQCAMRH | 20799 | 417 |
HLA-B*08:01 | CAMRPNFTI | CAMRHNFTI | 3487 | 242 |
HLA-B*27:05 | MRPNFTIKG | MRHNFTIKG | 4762 | 366 |
HLA-B*27:05 | MRPNFTIKGSFL | MRHNFTIKGSFL | 827 | 86 |
HLA-B*15:03 | RPNFTIKGSF | RHNFTIKGSF | 432 | 54 |
HLA-B*27:05 | MRPNFTIK | MRHNFTIK | 2132 | 276 |
HLA-B*15:03 | MRPNFTIKGSF | MRHNFTIKGSF | 397 | 96 |
HLA-C*07:02 | MRPNFTIKGSF | MRHNFTIKGSF | 361 | 1054 |
HLA-B*27:05 | MRPNFTIKGSF | MRHNFTIKGSF | 218 | 78 |
HLA-A*30:01 | QCAMRPNFTIK | QCAMRHNFTIK | 199 | 513 |
HLA-A*68:02 | CAMRPNFTI | CAMRHNFTI | 199 | 493 |
HLA-C*16:01 | CAMRPNFTI | CAMRHNFTI | 125 | 52 |
HLA-A*30:01 | AMRPNFTIKG | AMRHNFTIKG | 123 | 279 |
HLA-C*12:03 | CAMRPNFTI | CAMRHNFTI | 317 | 143 |
HLA-A*30:01 | VYQCAMRPNFTIK | VYQCAMRHNFTIK | 316 | 683 |
HLA-A*11:01 | AMRPNFTIK | AMRHNFTIK | 175 | 376 |
HLA-A*11:01 | CAMRPNFTIK | CAMRHNFTIK | 42 | 88 |
HLA-A*68:01 | CAMRPNFTIK | CAMRHNFTIK | 127 | 254 |
Reference FNMVYMPASWVMRIMTWLDMVDTSLSGFKLKDCVMYASAVVLLILMTARTVYD
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated FNMVYMPASWVMRIMTWLDMVDTSL‑‑‑KLKDCVMYASAVVLLILMTARTVYD
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:02 | FKLKDCVMYA | - | 8 | - |
HLA-A*02:11 | FKLKDCVMYA | - | 12 | - |
HLA-A*68:01 | MVDTSLSGFK | MVDTSLK | 13 | - |
HLA-B*15:03 | FKLKDCVMY | - | 15 | - |
HLA-A*11:01 | MVDTSLSGFK | MVDTSLK | 21 | - |
HLA-A*11:01 | TSLSGFKLK | TSLKLK | 22 | - |
HLA-A*03:01 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 25 |
HLA-A*02:01 | FKLKDCVMYA | - | 27 | - |
HLA-A*68:01 | DTSLSGFKLK | DTSLKLK | 33 | - |
HLA-A*03:02 | MVDTSLSGFK | MVDTSLK | 35 | - |
HLA-A*68:01 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 37 |
HLA-A*03:01 | MVDTSLSGFK | MVDTSLK | 54 | - |
HLA-A*03:02 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 59 |
HLA-C*05:01 | MVDTSLSGF | MVDTSL | 64 | - |
HLA-A*11:01 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 71 |
HLA-A*02:06 | FKLKDCVMYA | - | 90 | - |
HLA-A*30:01 | TSLSGFKLK | TSLKLK | 107 | - |
HLA-A*02:02 | SGFKLKDCVMYA | - | 126 | - |
HLA-A*11:01 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 128 |
HLA-A*03:02 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 147 |
HLA-C*08:02 | MVDTSLSGF | MVDTSL | 159 | - |
HLA-A*03:02 | IMTWLDMVDTSLSGFK | IMTWLDMVDTSLK | - | 168 |
HLA-A*02:11 | SGFKLKDCVMYA | - | 200 | - |
HLA-A*02:02 | MTWLDMVDTSLSGFKL | MTWLDMVDTSLKL | - | 202 |
HLA-A*01:01 | MVDTSLSGFKLKDCVMY | MVDTSLKLKDCVMY | - | 207 |
HLA-C*03:02 | MVDTSLSGF | MVDTSL | 211 | - |
HLA-A*02:02 | GFKLKDCVMYA | - | 239 | - |
HLA-A*02:02 | TSLSGFKLKDCVMYA | TSLKLKDCVMYA | - | 244 |
HLA-A*03:01 | TSLSGFKLK | TSLKLK | 244 | - |
HLA-B*15:03 | MVDTSLSGF | MVDTSL | 276 | - |
HLA-A*68:01 | TSLSGFKLK | TSLKLK | 286 | - |
HLA-A*03:02 | TSLSGFKLK | TSLKLK | 289 | - |
HLA-A*03:01 | IMTWLDMVDTSLSGFK | IMTWLDMVDTSLK | - | 309 |
HLA-A*68:02 | DTSLSGFKL | DTSLKL | 313 | - |
HLA-A*02:11 | MTWLDMVDTSLSGFKL | MTWLDMVDTSLKL | - | 346 |
HLA-B*15:01 | DMVDTSLSGF | DMVDTSL | 362 | - |
HLA-A*23:01 | TWLDMVDTSLSGF | - | 387 | - |
HLA-A*02:11 | GFKLKDCVMYA | - | 394 | - |
HLA-A*03:01 | MTWLDMVDTSLSGFK | MTWLDMVDTSLK | - | 415 |
HLA-A*26:01 | DMVDTSLSGF | DMVDTSL | 417 | - |
HLA-B*08:01 | MVDTSLSGFKLKDCVM | MVDTSLKLKDCVM | - | 426 |
HLA-A*02:02 | WLDMVDTSLS | - | 441 | - |
HLA-A*02:11 | FKLKDCVMYASAVV | - | 481 | - |
HLA-A*11:01 | DTSLSGFKLK | DTSLKLK | 488 | - |
HLA-B*35:01 | MVDTSLSGF | MVDTSL | 490 | - |
HLA-A*31:01 | RIMTWLDMVDTSLSGFK | RIMTWLDMVDTSLK | - | 493 |
HLA-B*15:03 | LSGFKLKDCVMY | LKLKDCVMY | 3466 | 22 |
HLA-A*02:11 | LDMVDTSLSGFKL | LDMVDTSLKL | 16396 | 166 |
HLA-A*02:02 | LDMVDTSLSGFKL | LDMVDTSLKL | 9971 | 106 |
HLA-A*02:11 | SLSGFKLKDCV | SLKLKDCV | 122 | 9934 |
HLA-A*02:01 | LDMVDTSLSGFKL | LDMVDTSLKL | 20579 | 311 |
HLA-B*08:01 | SLSGFKLKDCVM | SLKLKDCVM | 929 | 36 |
HLA-A*02:02 | SLSGFKLKDCV | SLKLKDCV | 408 | 10216 |
HLA-C*05:01 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 8375 | 417 |
HLA-B*15:01 | SLSGFKLKDCVMY | SLKLKDCVMY | 2952 | 158 |
HLA-B*08:01 | TSLSGFKLKDCVM | TSLKLKDCVM | 4628 | 289 |
HLA-B*15:01 | SLSGFKLKDCVM | SLKLKDCVM | 2654 | 197 |
HLA-A*68:01 | DMVDTSLSGFK | DMVDTSLK | 366 | 4919 |
HLA-A*02:11 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 1342 | 108 |
HLA-C*08:02 | MVDTSLSGFKL | MVDTSLKL | 2134 | 174 |
HLA-B*15:03 | SLSGFKLKDCVM | SLKLKDCVM | 3634 | 297 |
HLA-A*02:01 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 2214 | 195 |
HLA-A*03:02 | WLDMVDTSLSGFK | WLDMVDTSLK | 1756 | 156 |
HLA-A*02:02 | LSGFKLKDCVMYA | LKLKDCVMYA | 305 | 28 |
HLA-A*02:01 | LSGFKLKDCVMYA | LKLKDCVMYA | 1788 | 165 |
HLA-A*02:11 | LSGFKLKDCVMYA | LKLKDCVMYA | 578 | 54 |
HLA-B*15:03 | SLSGFKLKDCVMY | SLKLKDCVMY | 3626 | 349 |
HLA-A*03:01 | WLDMVDTSLSGFK | WLDMVDTSLK | 2900 | 287 |
HLA-C*05:01 | MVDTSLSGFKL | MVDTSLKL | 1125 | 124 |
HLA-A*11:01 | WLDMVDTSLSGFK | WLDMVDTSLK | 4020 | 492 |
HLA-A*02:02 | WLDMVDTSLSGFKL | WLDMVDTSLKL | 788 | 116 |
HLA-A*68:01 | DMVDTSLSGFKLK | DMVDTSLKLK | 1679 | 251 |
HLA-A*02:01 | SLSGFKLKDCVMYA | SLKLKDCVMYA | 203 | 853 |
HLA-A*02:11 | SLSGFKLKDCVMYA | SLKLKDCVMYA | 64 | 223 |
HLA-A*02:02 | SLSGFKLKDCVMYA | SLKLKDCVMYA | 55 | 171 |
HLA-A*29:02 | SLSGFKLKDCVMY | SLKLKDCVMY | 404 | 1192 |
HLA-A*11:01 | MVDTSLSGFKLK | MVDTSLKLK | 143 | 50 |
HLA-A*03:02 | MVDTSLSGFKLK | MVDTSLKLK | 312 | 127 |
HLA-A*68:01 | MVDTSLSGFKLK | MVDTSLKLK | 602 | 246 |
HLA-A*03:01 | MVDTSLSGFKLK | MVDTSLKLK | 441 | 190 |
Reference CVNCLDDRCILHCANFNVLFSTVFPPTSFGPLVRKIFVDGVPFVVSTGYHF
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated CVNCLDDRCILHCANFNVLFSTVFPLTSFGPLVRKIFVDGVPFVVSTGYHF
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:01 | FPPTSFGPLV | FPLTSFGPLV | 8999 | 21 |
HLA-A*02:02 | FPPTSFGPLV | FPLTSFGPLV | 7237 | 18 |
HLA-A*02:11 | FPPTSFGPLV | FPLTSFGPLV | 3405 | 9 |
HLA-A*32:01 | VLFSTVFPP | VLFSTVFPL | 5415 | 27 |
HLA-A*02:11 | LFSTVFPP | LFSTVFPL | 6706 | 35 |
HLA-A*02:11 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 1827 | 12 |
HLA-A*02:11 | NFNVLFSTVFPP | NFNVLFSTVFPL | 1779 | 13 |
HLA-A*02:11 | NVLFSTVFPP | NVLFSTVFPL | 739 | 6 |
HLA-C*03:03 | VLFSTVFPP | VLFSTVFPL | 28468 | 265 |
HLA-C*03:04 | VLFSTVFPP | VLFSTVFPL | 28468 | 265 |
HLA-A*02:11 | FNVLFSTVFPP | FNVLFSTVFPL | 413 | 4 |
HLA-C*14:02 | VLFSTVFPP | VLFSTVFPL | 21407 | 220 |
HLA-A*02:11 | FNVLFSTVFPPT | FNVLFSTVFPLT | 2618 | 27 |
HLA-A*02:01 | LFSTVFPP | LFSTVFPL | 7475 | 81 |
HLA-C*14:02 | LFSTVFPP | LFSTVFPL | 11979 | 138 |
HLA-B*15:03 | VLFSTVFPP | VLFSTVFPL | 3115 | 36 |
HLA-A*02:11 | VLFSTVFPP | VLFSTVFPL | 78 | 1 |
HLA-C*03:02 | VLFSTVFPP | VLFSTVFPL | 20533 | 273 |
HLA-A*02:01 | FNVLFSTVFPP | FNVLFSTVFPL | 656 | 9 |
HLA-A*02:01 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 2569 | 37 |
HLA-A*02:11 | FNVLFSTVFPPTS | FNVLFSTVFPLTS | 9448 | 142 |
HLA-A*02:02 | NVLFSTVFPP | NVLFSTVFPL | 1088 | 17 |
HLA-A*02:11 | CANFNVLFSTVFPP | CANFNVLFSTVFPL | 6143 | 96 |
HLA-A*02:02 | FNVLFSTVFPP | FNVLFSTVFPL | 1014 | 16 |
HLA-A*68:02 | NVLFSTVFPP | NVLFSTVFPL | 2213 | 37 |
HLA-A*02:02 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 3126 | 53 |
HLA-A*02:11 | PPTSFGPLV | PLTSFGPLV | 28329 | 483 |
HLA-C*16:01 | VLFSTVFPP | VLFSTVFPL | 24733 | 432 |
HLA-C*17:01 | VLFSTVFPP | VLFSTVFPL | 25087 | 439 |
HLA-A*02:01 | FNVLFSTVFPPT | FNVLFSTVFPLT | 3765 | 66 |
HLA-A*02:02 | LFSTVFPP | LFSTVFPL | 9311 | 167 |
HLA-A*02:01 | NVLFSTVFPP | NVLFSTVFPL | 928 | 17 |
HLA-A*02:02 | NFNVLFSTVFPP | NFNVLFSTVFPL | 2542 | 47 |
HLA-A*02:02 | VLFSTVFPP | VLFSTVFPL | 269 | 5 |
HLA-A*02:01 | NFNVLFSTVFPP | NFNVLFSTVFPL | 2286 | 44 |
HLA-A*02:06 | FPPTSFGPLV | FPLTSFGPLV | 3379 | 73 |
HLA-A*02:01 | VLFSTVFPP | VLFSTVFPL | 179 | 4 |
HLA-A*02:06 | FNVLFSTVFPP | FNVLFSTVFPL | 1609 | 37 |
HLA-A*02:02 | FNVLFSTVFPPT | FNVLFSTVFPLT | 4116 | 110 |
HLA-A*02:11 | FSTVFPPTSFGPLV | FSTVFPLTSFGPLV | 6695 | 180 |
HLA-A*02:01 | FNVLFSTVFPPTS | FNVLFSTVFPLTS | 11451 | 311 |
HLA-A*02:06 | VLFSTVFPP | VLFSTVFPL | 368 | 10 |
HLA-A*02:11 | ANFNVLFSTVFPPT | ANFNVLFSTVFPLT | 14639 | 409 |
HLA-A*02:01 | FSTVFPPTSFGPLV | FSTVFPLTSFGPLV | 12596 | 425 |
HLA-A*68:01 | PTSFGPLVR | LTSFGPLVR | 908 | 36 |
HLA-A*02:06 | NVLFSTVFPP | NVLFSTVFPL | 1611 | 66 |
HLA-B*15:01 | VLFSTVFPP | VLFSTVFPL | 5731 | 243 |
HLA-B*35:01 | FPPTSFGPL | FPLTSFGPL | 304 | 13 |
HLA-B*53:01 | FPPTSFGPL | FPLTSFGPL | 3581 | 154 |
HLA-C*01:02 | FPPTSFGPL | FPLTSFGPL | 217 | 4855 |
HLA-A*02:01 | CANFNVLFSTVFPP | CANFNVLFSTVFPL | 8519 | 384 |
HLA-A*02:02 | FNVLFSTVFPPTS | FNVLFSTVFPLTS | 10920 | 497 |
HLA-A*02:02 | FSTVFPPTSFGPLV | FSTVFPLTSFGPLV | 6958 | 322 |
HLA-A*02:11 | VFPPTSFGPLV | VFPLTSFGPLV | 4242 | 199 |
HLA-A*02:02 | CANFNVLFSTVFPP | CANFNVLFSTVFPL | 8183 | 391 |
HLA-A*02:11 | NFNVLFSTVFPPT | NFNVLFSTVFPLT | 9111 | 472 |
HLA-A*02:06 | ANFNVLFSTVFPP | ANFNVLFSTVFPL | 5191 | 304 |
HLA-A*02:06 | NFNVLFSTVFPP | NFNVLFSTVFPL | 4220 | 274 |
HLA-A*02:06 | FNVLFSTVFPPT | FNVLFSTVFPLT | 4868 | 388 |
HLA-B*35:03 | FPPTSFGPL | FPLTSFGPL | 286 | 24 |
HLA-A*03:01 | PTSFGPLVRK | LTSFGPLVRK | 554 | 47 |
HLA-A*31:01 | PTSFGPLVR | LTSFGPLVR | 4402 | 390 |
HLA-A*11:01 | PTSFGPLVR | LTSFGPLVR | 4068 | 379 |
HLA-A*03:02 | PTSFGPLVRK | LTSFGPLVRK | 868 | 88 |
HLA-B*07:02 | STVFPPTSFGPL | STVFPLTSFGPL | 777 | 79 |
HLA-A*68:01 | PTSFGPLVRK | LTSFGPLVRK | 308 | 34 |
HLA-B*07:02 | TVFPPTSFGPL | TVFPLTSFGPL | 1498 | 171 |
HLA-A*02:11 | STVFPPTSFGPLV | STVFPLTSFGPLV | 2427 | 285 |
HLA-A*02:11 | NVLFSTVFPPT | NVLFSTVFPLT | 1183 | 139 |
HLA-A*33:03 | PTSFGPLVR | LTSFGPLVR | 3228 | 381 |
HLA-A*26:01 | STVFPPTSF | STVFPLTSF | 786 | 95 |
HLA-B*07:02 | VFPPTSFGPL | VFPLTSFGPL | 339 | 43 |
HLA-A*02:01 | NVLFSTVFPPT | NVLFSTVFPLT | 2111 | 290 |
HLA-B*42:01 | FSTVFPPTSFGPL | FSTVFPLTSFGPL | 1320 | 185 |
HLA-B*42:01 | STVFPPTSFGPL | STVFPLTSFGPL | 738 | 111 |
HLA-A*02:01 | VLFSTVFPPTSF | VLFSTVFPLTSF | 2225 | 342 |
HLA-B*08:01 | FPPTSFGPL | FPLTSFGPL | 973 | 153 |
HLA-B*42:01 | TVFPPTSFGPL | TVFPLTSFGPL | 843 | 142 |
HLA-A*11:01 | PTSFGPLVRK | LTSFGPLVRK | 123 | 21 |
HLA-B*42:01 | VFPPTSFGPL | VFPLTSFGPL | 274 | 47 |
HLA-A*02:01 | VLFSTVFPPTS | VLFSTVFPLTS | 708 | 124 |
HLA-B*07:02 | FSTVFPPTSFGPL | FSTVFPLTSFGPL | 2537 | 466 |
HLA-B*07:02 | FPPTSFGPL | FPLTSFGPL | 42 | 8 |
HLA-A*02:11 | VLFSTVFPPTSF | VLFSTVFPLTSF | 1019 | 195 |
HLA-A*25:01 | STVFPPTSF | STVFPLTSF | 1533 | 296 |
HLA-B*07:02 | FPPTSFGPLV | FPLTSFGPLV | 1131 | 236 |
HLA-B*42:01 | FPPTSFGPL | FPLTSFGPL | 21 | 5 |
HLA-A*26:01 | FSTVFPPTSF | FSTVFPLTSF | 1667 | 398 |
HLA-B*51:01 | FPPTSFGPL | FPLTSFGPL | 1809 | 433 |
HLA-A*02:11 | VLFSTVFPPTS | VLFSTVFPLTS | 309 | 74 |
HLA-B*42:01 | FPPTSFGPLV | FPLTSFGPLV | 368 | 89 |
HLA-A*02:02 | VLFSTVFPPTS | VLFSTVFPLTS | 1210 | 377 |
HLA-C*03:02 | FPPTSFGPL | FPLTSFGPL | 960 | 313 |
HLA-A*32:01 | STVFPPTSF | STVFPLTSF | 230 | 86 |
HLA-B*58:01 | FSTVFPPTSF | FSTVFPLTSF | 88 | 33 |
HLA-B*15:01 | STVFPPTSF | STVFPLTSF | 130 | 49 |
HLA-A*02:01 | VLFSTVFPPT | VLFSTVFPLT | 61 | 23 |
HLA-C*03:03 | FPPTSFGPL | FPLTSFGPL | 375 | 145 |
HLA-C*03:04 | FPPTSFGPL | FPLTSFGPL | 375 | 145 |
HLA-A*02:02 | VLFSTVFPPT | VLFSTVFPLT | 113 | 44 |
HLA-C*16:01 | FSTVFPPTS | FSTVFPLTS | 1127 | 460 |
HLA-C*14:02 | LFSTVFPPTSF | LFSTVFPLTSF | 396 | 950 |
HLA-C*01:02 | VFPPTSFGPL | VFPLTSFGPL | 429 | 997 |
HLA-A*02:02 | TVFPPTSFGPLV | TVFPLTSFGPLV | 789 | 343 |
HLA-A*68:02 | STVFPPTSFGPLV | STVFPLTSFGPLV | 169 | 74 |
HLA-A*02:11 | VLFSTVFPPT | VLFSTVFPLT | 25 | 11 |
HLA-A*03:01 | TVFPPTSFGPLVRK | TVFPLTSFGPLVRK | 92 | 198 |
HLA-C*14:02 | VFPPTSFGPL | VFPLTSFGPL | 47 | 99 |
HLA-A*23:01 | LFSTVFPPTSF | LFSTVFPLTSF | 370 | 179 |
Reference TADIVVFDEISMATNYDLSVVNARLRAKHYVYIGDPAQLPAPRTLLTKGTL
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated TADIVVFDEISMATNYDLSVVNARLCAKHYVYIGDPAQLPAPRTLLTKGTL
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*68:01 | DLSVVNARLR | DLSVVNARLC | 44 | 30873 |
HLA-C*06:02 | LRAKHYVYI | LCAKHYVYI | 36 | 16159 |
HLA-A*68:01 | LSVVNARLR | LSVVNARLC | 140 | 32767 |
HLA-A*33:03 | DLSVVNARLR | DLSVVNARLC | 154 | 32767 |
HLA-A*31:01 | LSVVNARLR | LSVVNARLC | 261 | 30993 |
HLA-C*07:01 | LRAKHYVYI | LCAKHYVYI | 133 | 15165 |
HLA-B*27:05 | LRAKHYVYI | LCAKHYVYI | 379 | 32767 |
HLA-A*30:01 | RLRAKHYVY | RLCAKHYVY | 27 | 1483 |
HLA-B*27:05 | RLRAKHYVYI | RLCAKHYVYI | 208 | 10096 |
HLA-C*07:02 | LRAKHYVYI | LCAKHYVYI | 433 | 17614 |
HLA-A*30:01 | RAKHYVYIG | CAKHYVYIG | 76 | 2630 |
HLA-A*68:01 | TNYDLSVVNARLR | TNYDLSVVNARLC | 477 | 15989 |
HLA-A*30:01 | RLRAKHYV | RLCAKHYV | 218 | 5721 |
HLA-A*30:01 | RLRAKHYVYI | RLCAKHYVYI | 17 | 427 |
HLA-A*30:01 | RAKHYVYIGDPA | CAKHYVYIGDPA | 188 | 4601 |
HLA-A*30:01 | RAKHYVYI | CAKHYVYI | 211 | 4134 |
HLA-B*08:01 | RLRAKHYV | RLCAKHYV | 363 | 6671 |
HLA-A*30:01 | ARLRAKHYVYI | ARLCAKHYVYI | 422 | 6081 |
HLA-B*08:01 | RLRAKHYVYI | RLCAKHYVYI | 230 | 2547 |
HLA-B*15:03 | LRAKHYVY | LCAKHYVY | 395 | 4119 |
HLA-A*29:02 | RLRAKHYVY | RLCAKHYVY | 535 | 101 |
HLA-A*02:11 | RLRAKHYV | RLCAKHYV | 1483 | 352 |
HLA-A*68:01 | VVNARLRAK | VVNARLCAK | 1428 | 381 |
HLA-A*11:01 | VVNARLRAK | VVNARLCAK | 145 | 44 |
HLA-A*03:02 | VVNARLRAK | VVNARLCAK | 257 | 79 |
HLA-B*15:01 | ARLRAKHYVY | ARLCAKHYVY | 402 | 1223 |
HLA-B*15:01 | RLRAKHYVY | RLCAKHYVY | 49 | 133 |
HLA-A*68:01 | SVVNARLRAK | SVVNARLCAK | 158 | 63 |
HLA-A*03:02 | SVVNARLRAK | SVVNARLCAK | 196 | 86 |
Reference DYKRDAPAHISTIGVCSMTDIAKKPTETICAPLTVFFDGRVDGQVDLFRNA
||||||||||||||||||||||||| |||||||||||||||||||||||||
Mutated DYKRDAPAHISTIGVCSMTDIAKKPIETICAPLTVFFDGRVDGQVDLFRNA
Allele | Reference peptide | Mutated peptide | Reference affinity (IC50, nM) | Mutated affinity (IC50, nM) |
---|---|---|---|---|
HLA-A*02:02 | SMTDIAKKPT | SMTDIAKKPI | 3353 | 375 |
HLA-A*68:02 | TETICAPLTV | IETICAPLTV | 64 | 161 |
HLA-C*03:03 | IAKKPTETI | IAKKPIETI | 497 | 1187 |
HLA-C*03:04 | IAKKPTETI | IAKKPIETI | 497 | 1187 |
HLA-A*02:11 | SMTDIAKKPTETI | SMTDIAKKPIETI | 560 | 263 |
